Service Procedures for the PCBs and Related Components

Powermax65/85 SYNC Service Parts and Procedures 810440 11 7

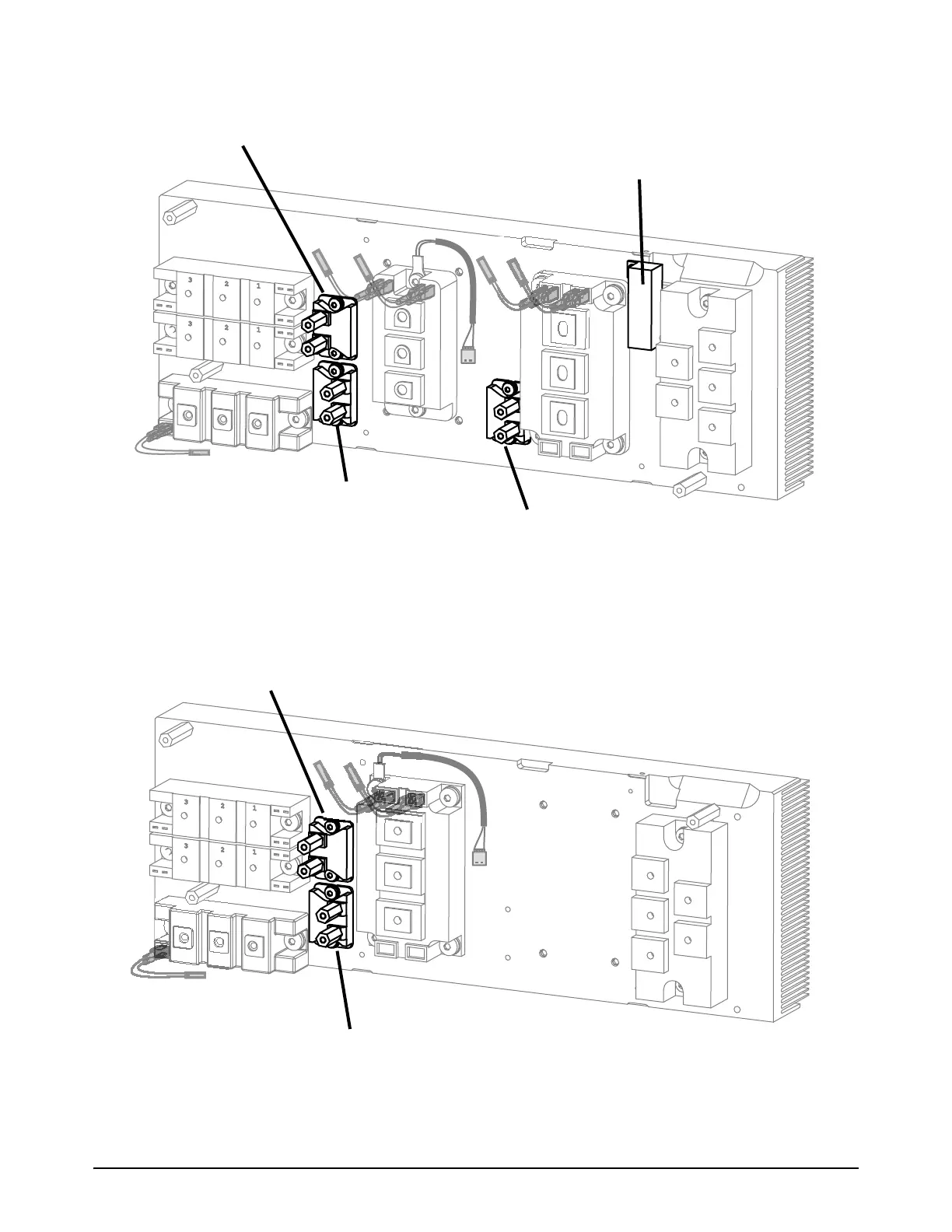

Figure 15 — CSA models: Snubber resistors and damper resistor

Figure 16 — CE/CCC models: Snubber resistors

5 Ohms (Ω), 120 W

15 Ohms (Ω), 120 W

Damper resistor

15 Ohms (Ω), 120 W

5 Ohms (Ω), 120 W
