Hypertherm Powermax65 SYNC - 65 A;85 A heatsink resistors

Service Parts
2

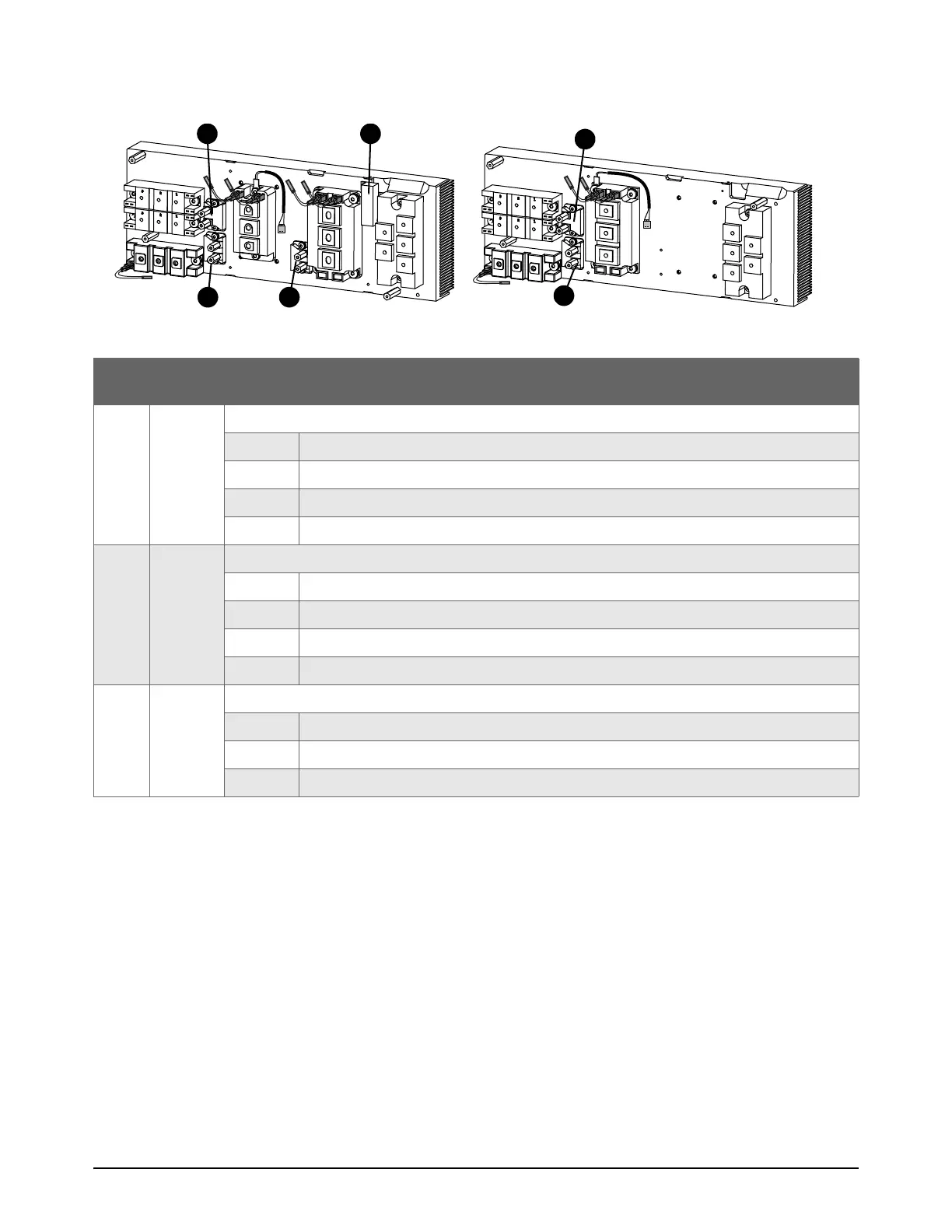

32 810440 Service Parts and Procedures Powermax65/85 SYNC
65 A/85 A heatsink resistors
For replacement procedures, refer to Replace the snubber resistors and the damper resistor on
page 116.
Item
Part
number
Description and kit contents
7 228693 Kit: Snubber resistor, 5 , 120 W
109799 Snubber resistor 5 , 120 W
108868 Standoff (2)
075526 Screw: M4 X 10, pan head (2)
128836 Thermal grease, 0.125 ounce
8 228706 Kit: Powermax65/85 SYNC snubber resistor, 15, 120W
109950 Snubber resistor, 15, 120W
108868 Standoff (2)
075526 Screw: M4 X 10, pan head (2)
128836 Thermal grease, 0.125 ounce
9 228740 Kit: Powermax65/85 SYNC CSA damper resistor
109944 Damper resistor
075529 Screw: M3 X 10, pan head (2)
128836 Thermal grease, 0.125 ounce
8
7
7
9
CSA
8
7
CE/CCC
