Hypertherm Powermax65 SYNC User Manual

Service Procedures for the Magnetics
6
Powermax65/85 SYNC Service Parts and Procedures 810440 135

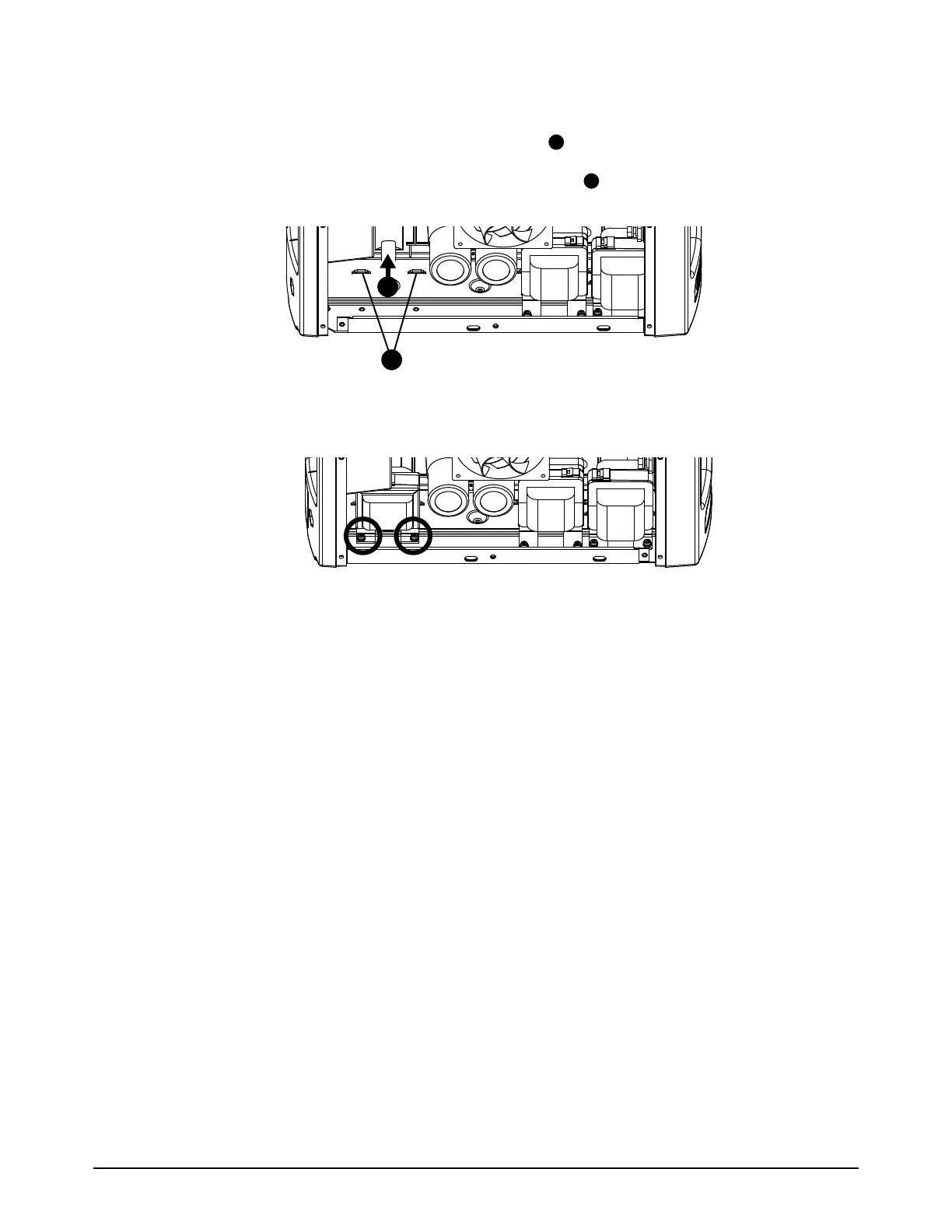

Install the PFC
1. Put the PFC inductor wires through the open space in the bottom of the center panel.
2. Put the tabs on the rear of the PFC inductor into the slots on the bottom of the plasma power
supply.
3. Attach the PFC inductor to the plasma power supply with the 2 supplied mounting screws.
Tighten screws to 2.3 Nm (20 lbfin).
4. Attach the 2 PFC inductor wires to the power PCB. Tighten the screws to 2.3 Nm (20 lbfin).
Refer to Figure 21 – Powermax65/85 SYNC PFC inductor wires on page 134.
5. Attach the rear panel. Refer to page 58.
6. Install the end panel bracket. Refer to page 54.
7. Install the component barrier and the plasma power supply cover. Refer to page 51.
1
2
1
2
