Service Procedures for the Cover, Panels, and Connectors
3
Powermax65/85 SYNC Service Parts and Procedures 810440 69
Replace the work lead receptacle
For kit contents, refer to Plasma power supply interior, front on page 24.
Remove the work lead receptacle
1. Set the plasma power supply switch to OFF (O),
disconnect the power cord from the power source, and
disconnect the gas supply.
2. Remove the plasma power supply cover and the
component barrier. Refer to page 49.
3. Remove the bolt from the work lead receptacle.
4. Remove the ring terminal from the work lead receptacle.
5. Remove the nut and washer from the work lead
receptacle.

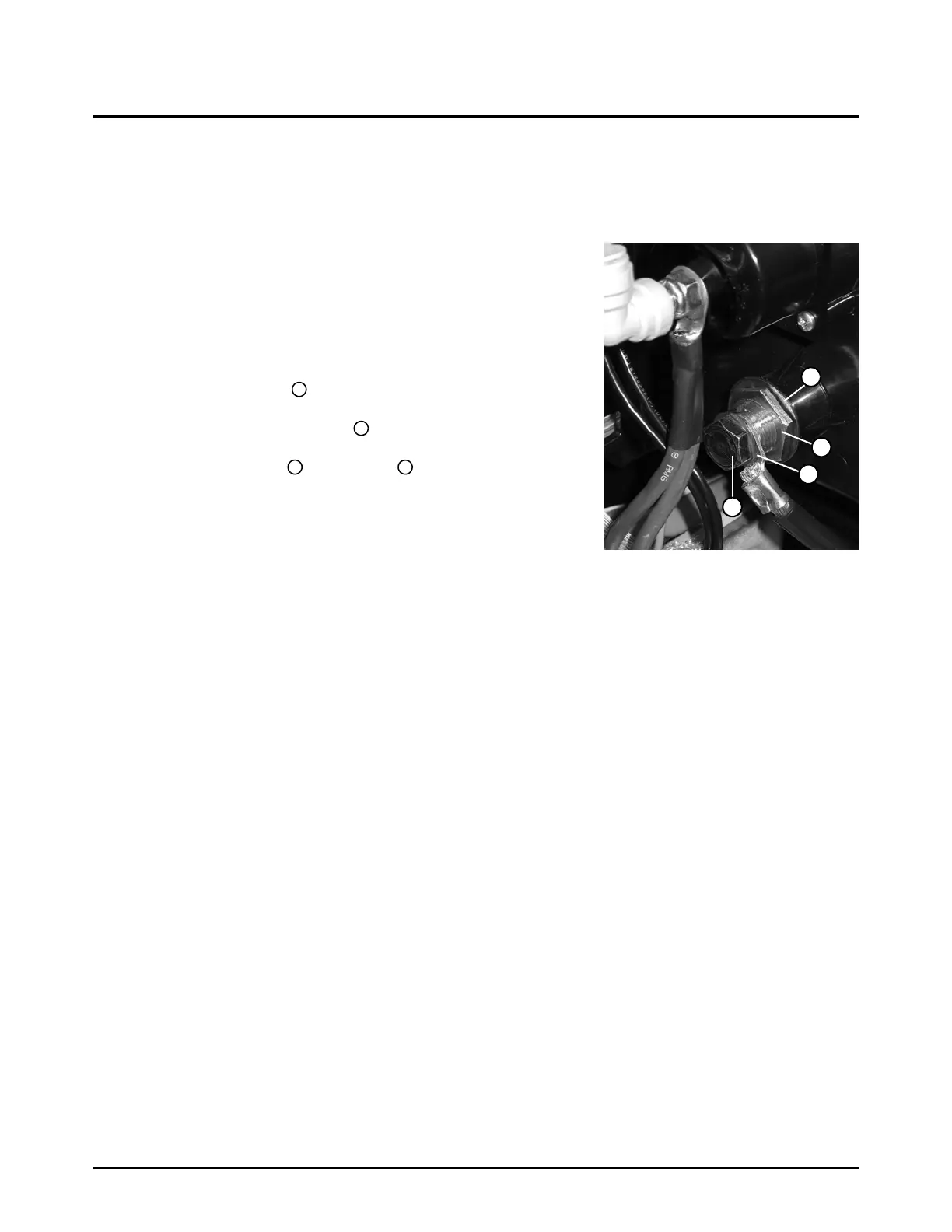

6. Remove the work lead receptacle. Push the work lead
receptacle in the direction of the front panel.
1
2
3
4
1
2
3
4
