Service Procedures for the Cover, Panels, and Connectors
3
68 810440 Service Parts and Procedures Powermax65/85 SYNC

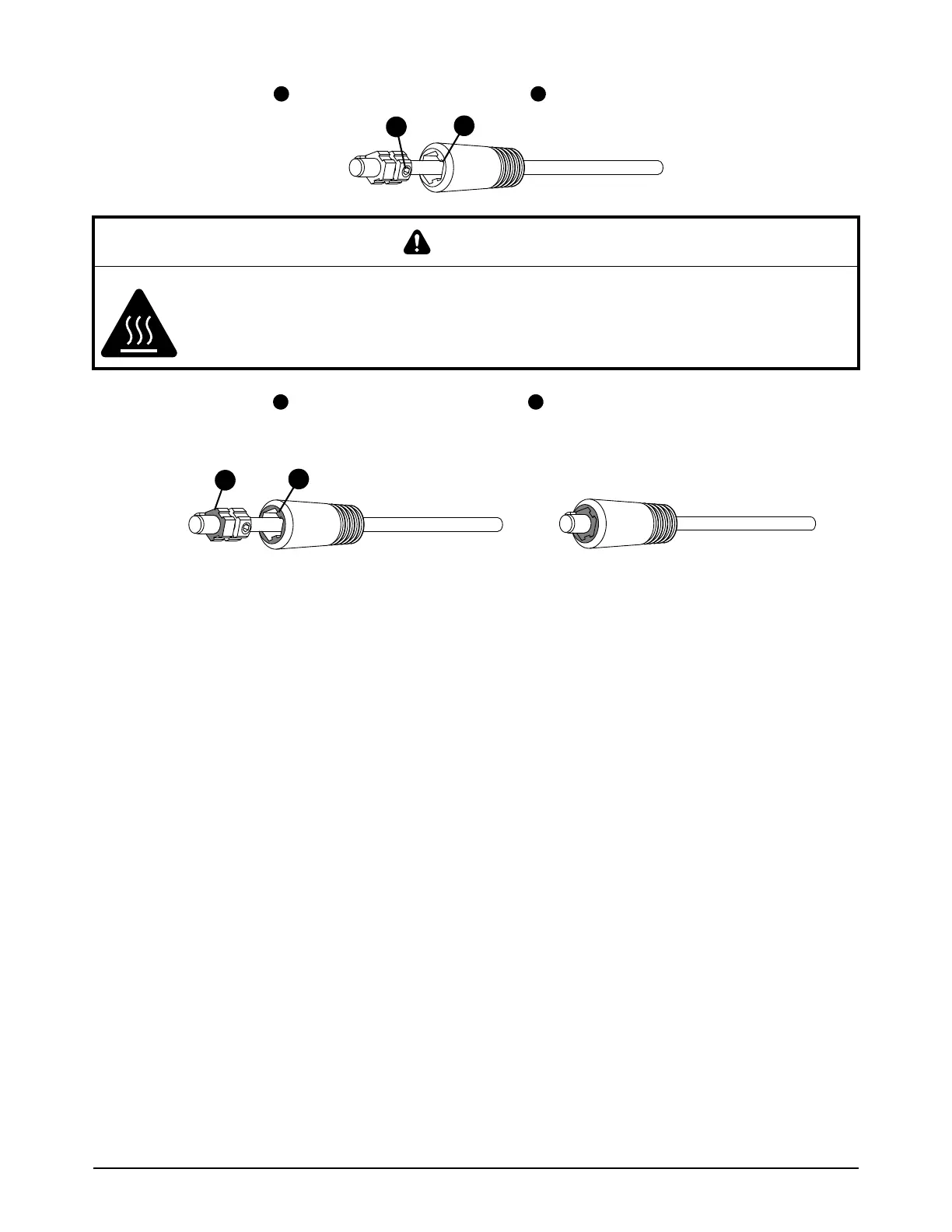

6. Align the tabs in the rubber boot with the slots in the work lead connector.
7. Align the face of the rubber boot with the face of the work lead connector. If the face of
the work lead connector is below the face of the rubber boot, the work lead can overheat which
can cause damage and risk of burns.
3
4
3
4
CAUTION
INCORRECTLY INSTALLED WORK LEAD CONNECTORS CAN OVERHEAT
To prevent damage and risk of burns, make sure that the face of the work lead connector is
flush with the face of the rubber boot.
5
6
5
6
