Service Parts
2
Powermax65/85 SYNC Service Parts and Procedures 810440 27

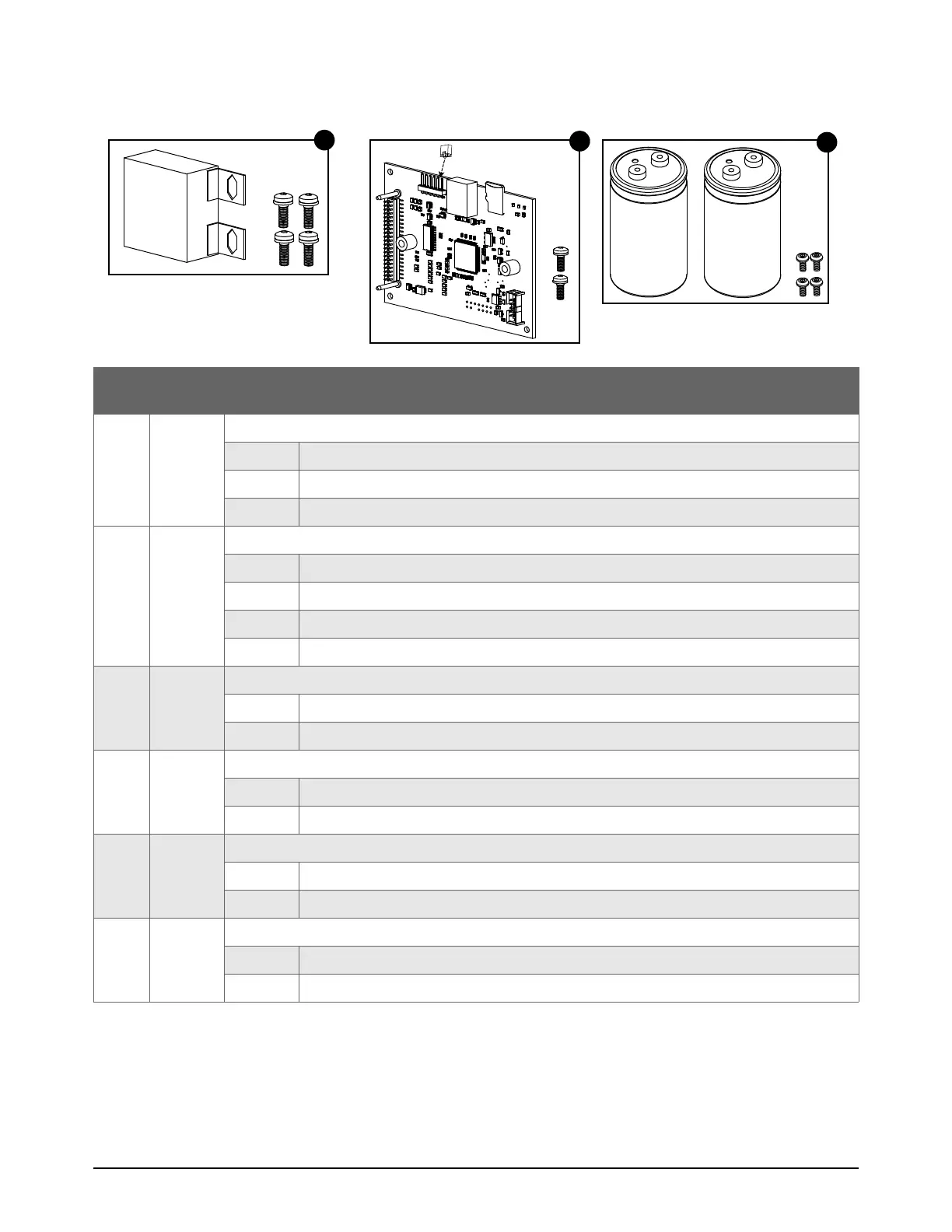

Capacitors and DSP PCB
For replacement procedures, refer to the following:
 Replace the power PCB capacitors on page 119
 Replace the DSP PCB on page 95
 Replace the bulk capacitors on page 121
Item
Part
number
Description and kit contents
3 428066 Kit: Power PCB capacitor
075569 Screw: M6 X 14-12.5, pan head (2)
075570 Screw: M5 X 14-12, pan head (2)
109930 Capacitor: 3uF, 850 VDC
4 528028 Kit: DSP PCB
075766 Screw: M3 X 16, pan head (2)
108855 2-pin jumper (preinstalled on PCB)
141421 DSP PCB
210775 Label: “Save system data before you install this part” (not shown)
5 228683 Kit: Powermax65 SYNC bulk capacitor CSA
075570 Screw: M5 X 14-12, pan head (4)
109935 Capacitor: 2200uF, 500 VDC (2)
5 228684 Kit: Powermax65 SYNC bulk capacitor CE / CCC
075570 Screw: M5 X 14-12, pan head (4)
109947 Capacitor: 3300uF, 400 VDC (2)
5 228681 Kit: Powermax85 SYNC bulk capacitor CSA
075570 Screw: M5 X 14-12, pan head (4)
109797 Capacitor: 3300uF, 500 VDC (2)
5 228682 Kit: Powermax85 SYNC bulk capacitor CE / CCC
075570 Screw: M5 X 14-12, pan head (4)
109948 Capacitor: 4400uF, 400 VDC (2)
3
4
5
