Hypertherm Powermax65 SYNC User Manual

Service Parts
2
Powermax65/85 SYNC Service Parts and Procedures 810440 15
Work leads
Powermax65 SYNC

You can make a work lead for the Powermax65 SYNC and
Powermax85 SYNC by installing the 008337 hand clamp or the 428921
C-style clamp on the approved amperage ring terminal work lead from
Hypertherm. Make sure that you use a work lead that is the correct
amperage for your plasma power supply.

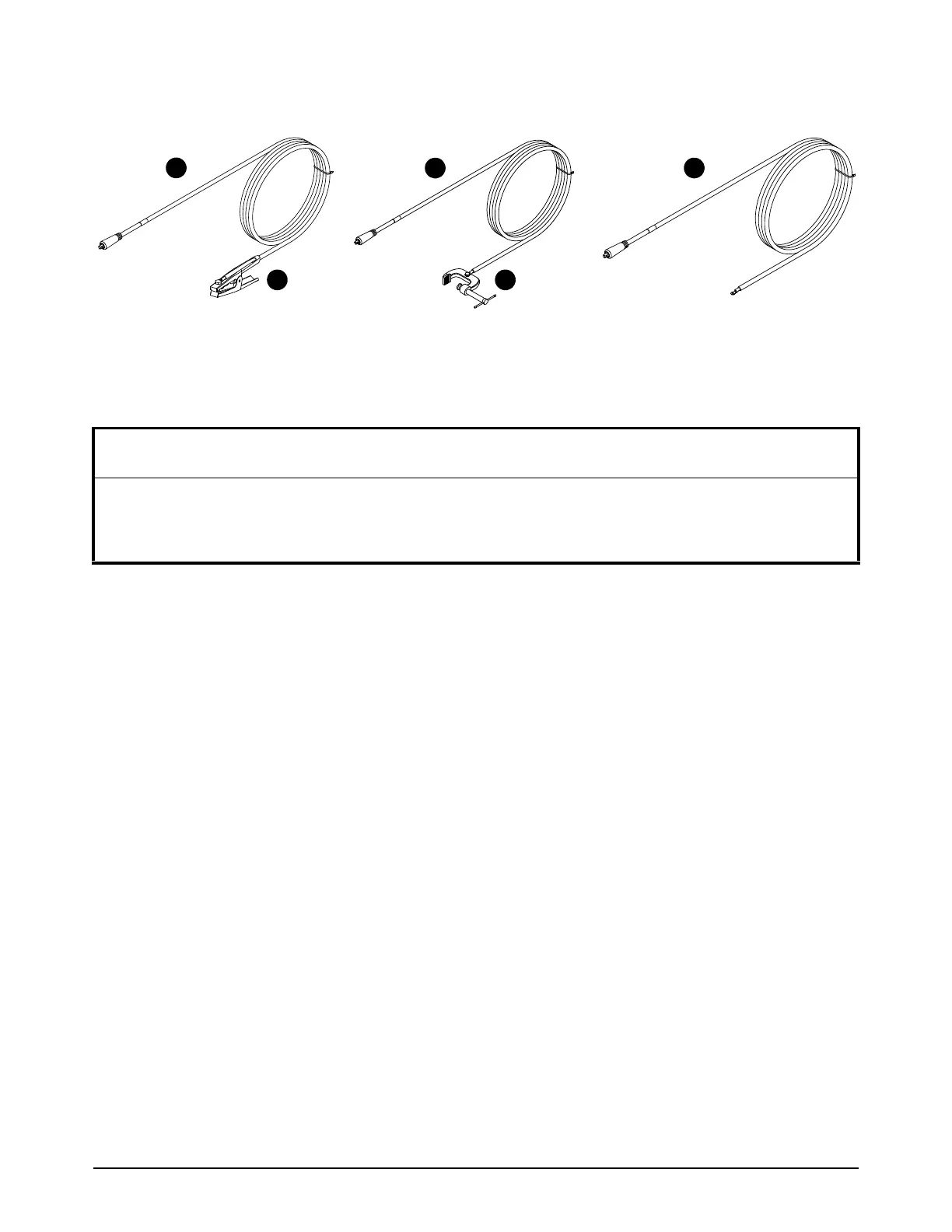

Hand clamp C-style clamp Ring terminal
1
2 3
4 5
NOTICE
Work leads are approved for specific amperages, lengths, and connectors. Make sure that you use a
work lead that is approved for your plasma power supply. The amperage of a work lead is identified
near the rubber boot of the work lead connector.
Item Part number Description
1 223125 65 A work lead with hand clamp, 7.6 m (25 foot)
1 223126 65 A work lead with hand clamp, 15 m (50 foot)
1 223033 65 A / 85 A work lead with hand clamp, 23 m (75 foot)
2 223194 65 A work lead with C-style clamp, 7.6 m (25 foot)
3 223200 65 A work lead with ring terminal, 7.6 m (25 foot)
3 223201 65 A work lead with ring terminal, 15 m (50 foot)
3 223211 65 A / 85 A work lead with ring terminal, 23 m (75 foot)
4 008337 Ground hand clamp: 300 A
5 428921 Kit: C-style clamp with hardware
228709 Kit: Work lead connector
