Hypertherm Powermax65 SYNC User Manual

Service Procedures for the Cover, Panels, and Connectors
3
70 810440 Service Parts and Procedures Powermax65/85 SYNC

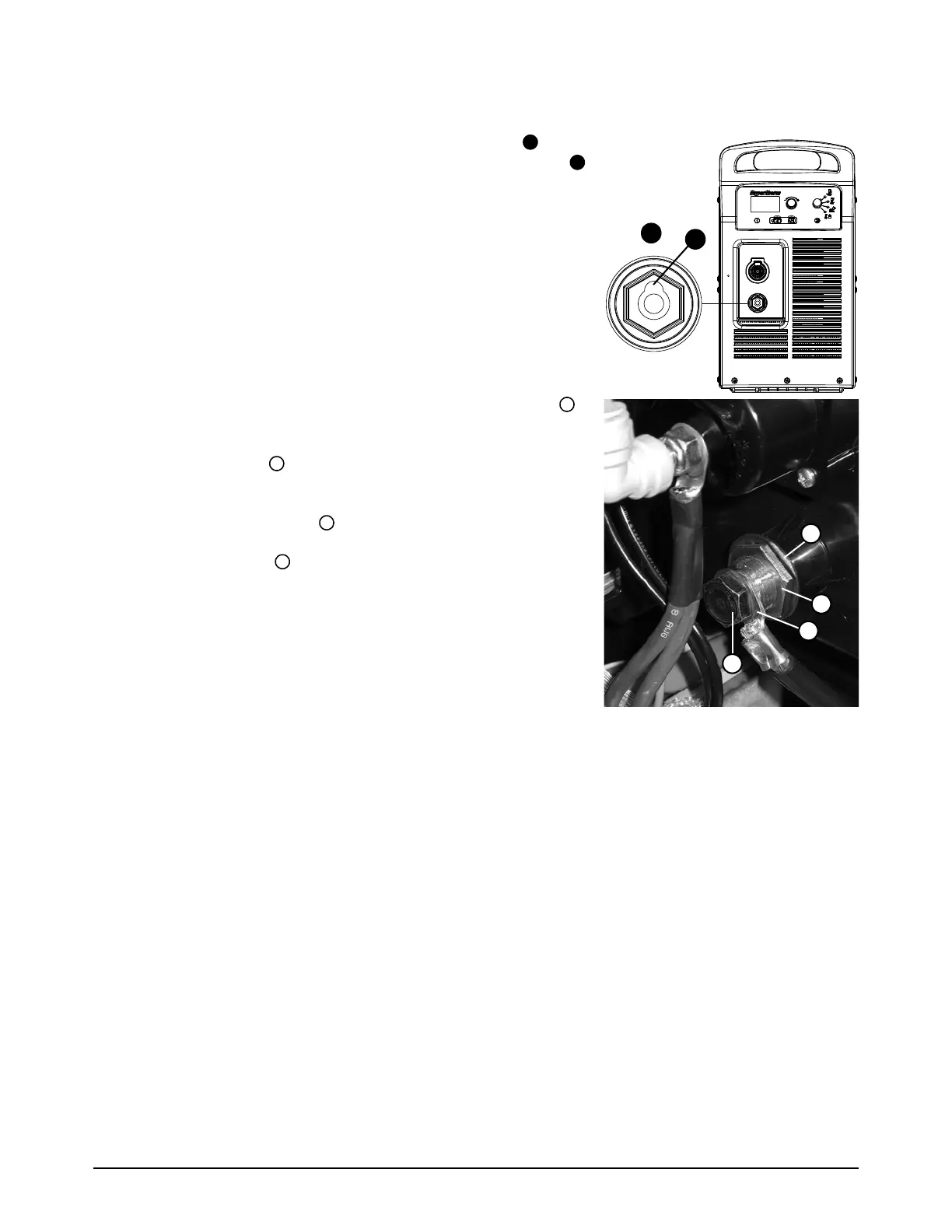

Install the work lead receptacle
1. Push the new work lead receptacle into the hole in the
front panel. Position the receptacle so that the key way
points up.
2. From inside the plasma power supply, put the washer
on the work lead receptacle.
3. Install the nut onto the work lead receptacle. Tighten the
nut to 9 Nm (80 lbfin).
4. Put the ring terminal on the work lead receptacle.
5. Install the bolt on the work lead receptacle. Tighten the
bolt to 13.6 Nm (120 lbfin).
6. Install the plasma power supply cover and the component
barrier. Refer to page 51.
1
2
1
2
6
5
4
3
3
4
5
6
