Service Procedures for the Magnetics
6
Powermax65/85 SYNC Service Parts and Procedures 810440 131

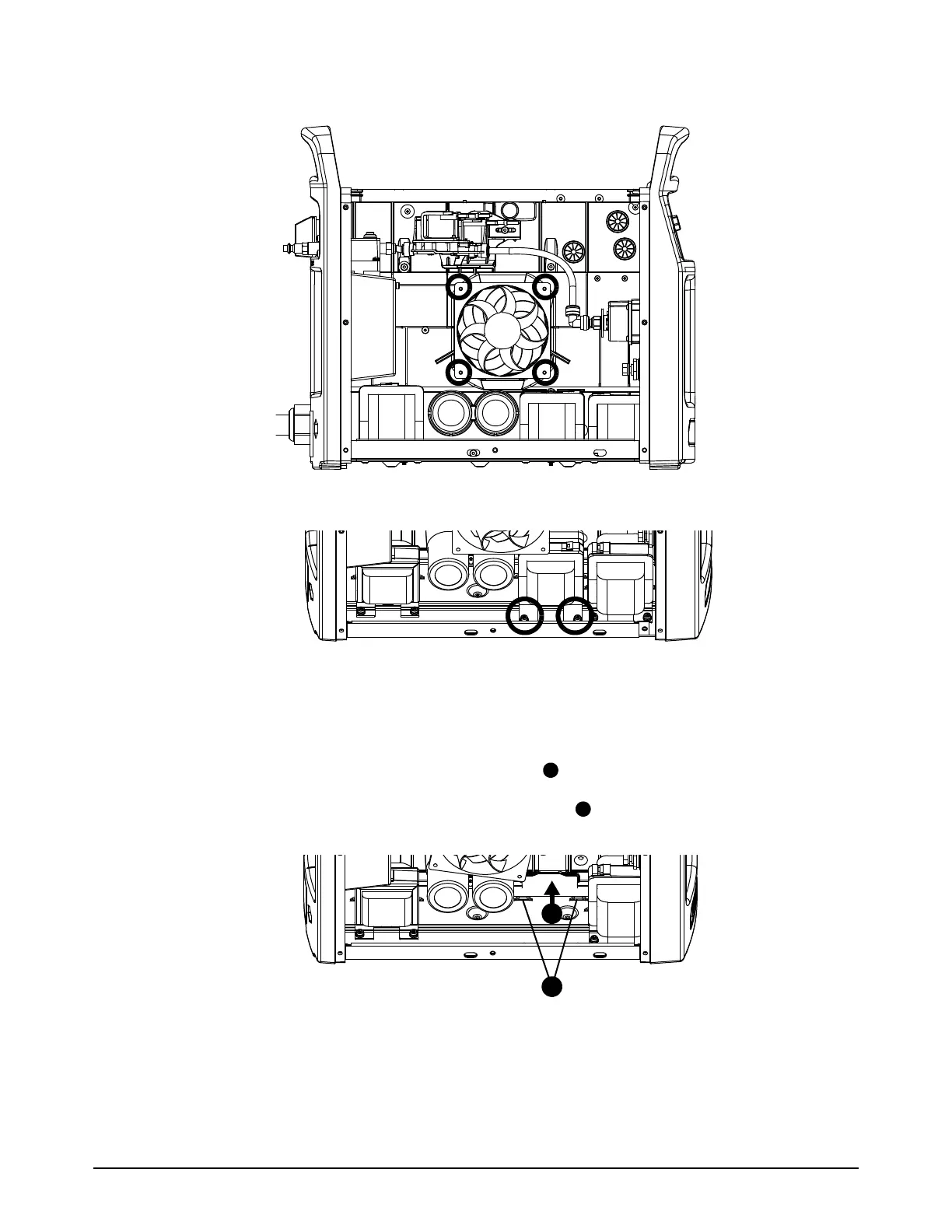

7. Use an offset TORX screwdriver to remove the 4 screws from fan.
8. Remove the 2 mounting screws from the transformer.
9. Remove the transformer.
Install the transformer
1. Put the transformer cables through the open space in the bottom of the center panel.
2. Put the tabs on the rear of the transformer into the slots on the bottom of the plasma power
supply.
1
2
1
2
