Service Parts
36 810440 Service Parts and Procedures Powermax65/85 SYNC
External cables for machine interface receptacle and RS-485 serial interface receptacle
Hypertherm offers a variety of external cables that connect to the machine interface receptacle and
the RS-485 serial interface receptacle. For setup information refer to the
Powermax65/85/105 SYNC Mechanized Cutting Guide (810480).

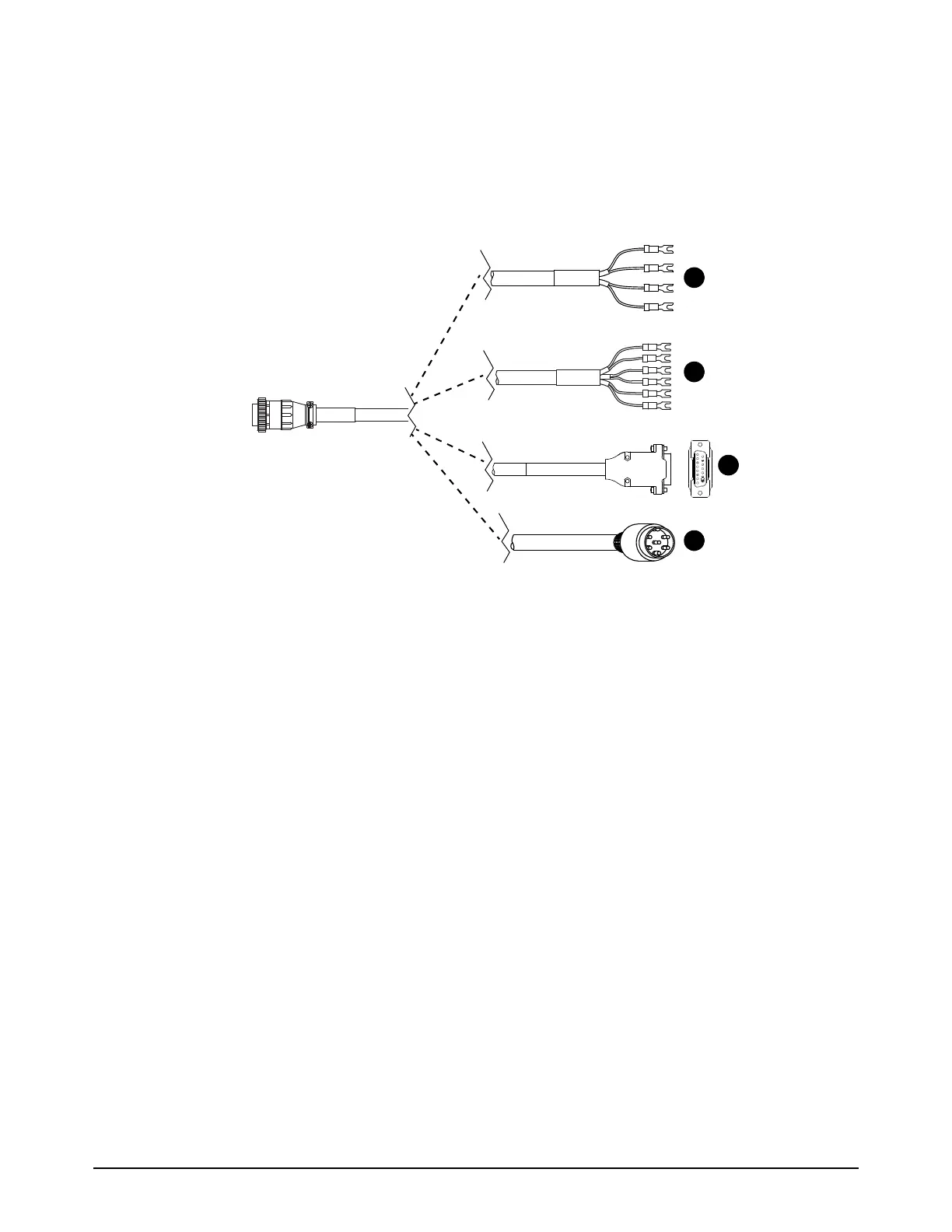

Machine interface cables
Item Part number Description
1 023206 External machine interface cable*, 4 spade connectors, 7.6 m (25 foot)
1 023279 External machine interface cable*, 4 spade connectors, 15 m (50 foot)
2 228350 Kit: External machine interface cable
**, 6 spade connectors, 7.6 m (25 foot)
2 228351 Kit: External machine interface cable
**, 6 spade connectors, 15 m (50 foot)
3 223354 External machine interface cable
**, D-sub connector with screws, 3.0 m (10 foot)
3 223355 External machine interface cable
**, D-sub connector with screws, 6.0 m (20 foot)
3 223048 External machine interface cable
**, D-sub connector with screws, 7.6 m (25 foot)
3 223356 External machine interface cable
**, D-sub connector with screws, 10.7 m (35 foot)
3 123896 External machine interface cable
**, D-sub connector with screws, 15 m (50 foot)
4 223733 External machine interface cable
†
for mechanized cutting systems with a 21.1:1 voltage
ratio (for example, PlasmaCAM
®
systems), 6-pin DIN connector, 4.6 m (15 foot)
4 223734 External machine interface cable
†
for mechanized cutting systems with a 21.1:1 voltage
ratio (for example, PlasmaCAM
®
systems), 6-pin DIN connector, 6.0 m (20 foot)
* Communicates start, stop, and arc transfer signals. Uses an external voltage divider PCB.
** Communicates start, stop, arc transfer, and divided arc voltage signals. Uses the internal voltage divider PCB.
†
Communicates start, stop, and divided arc voltage signals. Uses the internal voltage divider PCB.
