Service Procedures for the Gas Line
4
Powermax65/85 SYNC Service Parts and Procedures 810440 81

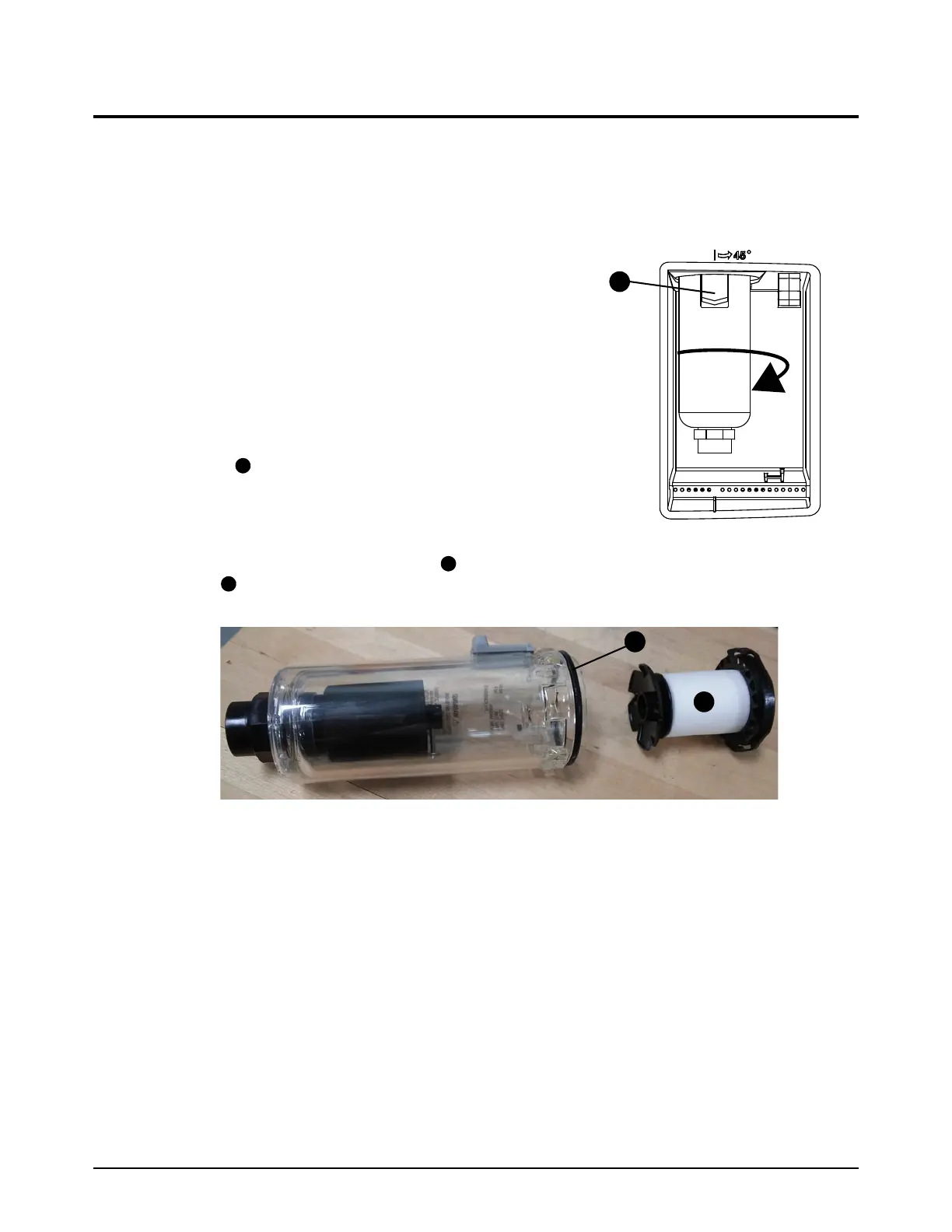

Replace the air filter bowl and filter element
For kit contents, refer to Plasma power supply exterior, rear on page 17.
Remove the air filter bowl and filter element
1. Set the power switch on the plasma power
supply to OFF (O).
2. Disconnect the power cord from electrical
power.
3. Disconnect the gas supply from the rear of the
plasma power supply.
4. Hold the filter bowl with your right hand. With
the index finger of your left hand, push down
the latch and turn the filter bowl
approximately 45 degrees to the right.
5. Pull the filter bowl straight down to remove.
6. Gently turn and pull the filter element out of the filter bowl. Be careful not to damage the
O-ring at the top of the bowl.
1
1
2
3
2
3
2
