Hypertherm Powermax65 SYNC User Manual

Service Parts
2

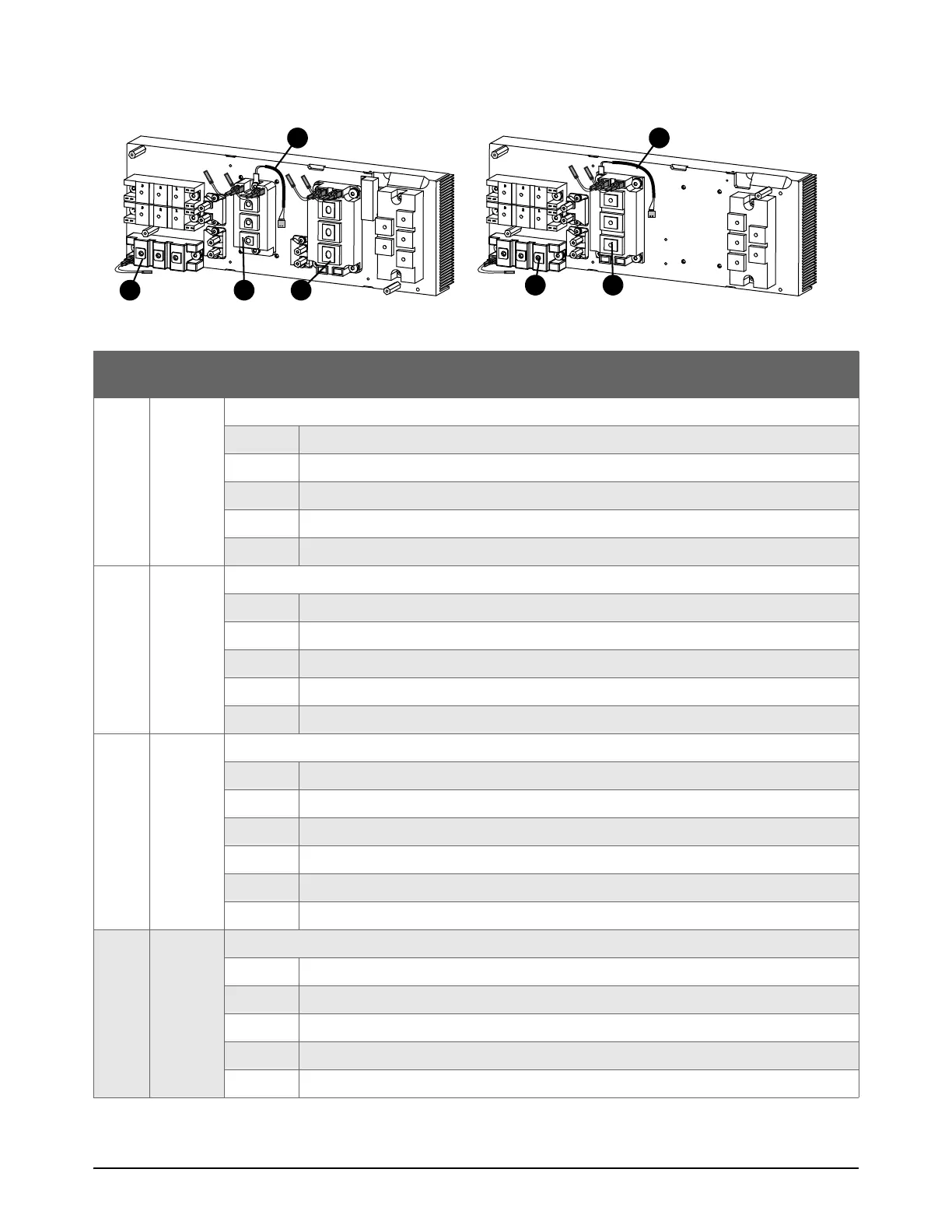

30 810440 Service Parts and Procedures Powermax65/85 SYNC
65 A/85 A heatsink IGBTs and thermal sensor
Item
Part
number
Description and kit contents
3 528042 Kit: Powermax65 SYNC pilot arc IGBT
109239 Pilot arc IGBT
223739 Pilot arc cable
075567 Screw: M6 X 16-12.5, pan head (2)
075570 Screw: M5 X 14-12, pan head (2)
128836 Thermal grease, 0.125 ounce
3 528043 Kit: Powermax85 SYNC pilot arc IGBT
109238 Pilot arc IGBT
223739 Pilot arc cable
075567 Screw: M6 X 16-12.5, pan head (2)
075570 Screw: M5 X 14-12, pan head (2)
128836 Thermal grease, 0.125 ounce
4 528040 Kit: Powermax65 SYNC CE/Powermax85 SYNC CSA inverter IGBT
209444 Inverter IGBT
223738 PFC to inverter cable (2)
075567 Screw: M6 X 16-12.5, pan head (3)
075569 Screw: M6 X 14-12.5, pan head (3)
075851 Screw: M6 X 18.5±0.5 12.5, pan head
128836 Thermal grease, 0.125 ounce
4 528039 Kit: Powermax65 SYNC CSA inverter IGBT
109933 Inverter IGBT
223738 PFC to inverter cable (2)
075524 Screw: M5 X 16, pan head (2)
075570 Screw: M5 X 14-12, pan head (3)
128836 Thermal grease, 0.125 ounce
3
4
6
CSA
3
4
CE/CCC
5 5
