Service Procedures for the Gas Line
Powermax65/85 SYNC Service Parts and Procedures 810440 87

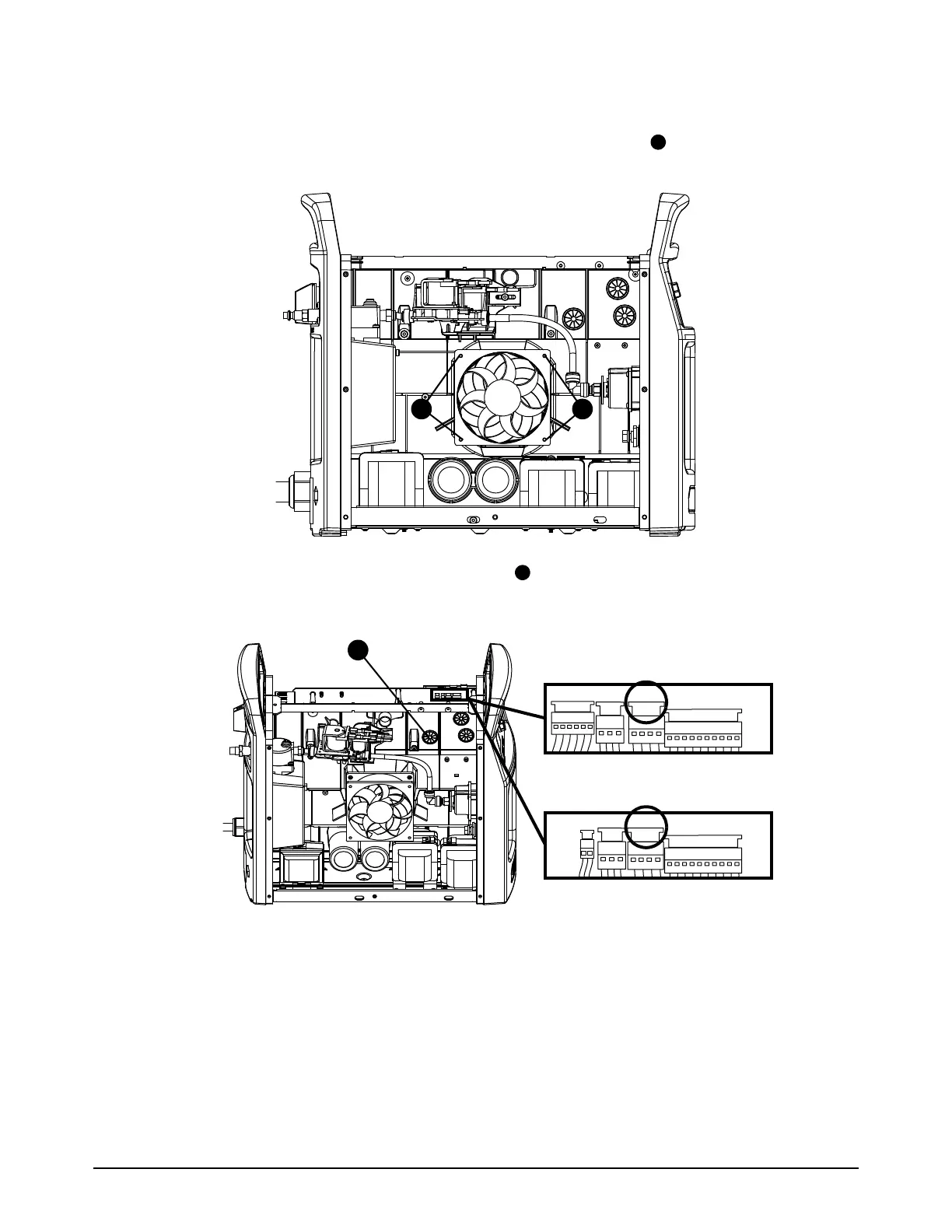

Install the fan and fan shroud
1. Attach the new fan to the center panel with the 4 supplied screws .Tighten the screws to
1.1Nm (10inlbf).
2. Put the fan wire through the lower left grommet .
3. Connect the fan wire connector to J3 (CSA) or J5 (CE/CCC) near the top of the power PCB
4. Bundle the fan and solenoid valve wires with a new cable tie.
5. Align the plastic posts on the fan shroud with the related holes in the fan.
6. Push the fan shroud straight onto the fan.
7. Install the end panel bracket. Refer to page 54.
8. Install the component barrier and the plasma power supply cover. Refer to page 51.
