Hypertherm Powermax65 SYNC User Manual

Service Procedures for the Magnetics
6
128 810440 Service Parts and Procedures Powermax65/85 SYNC

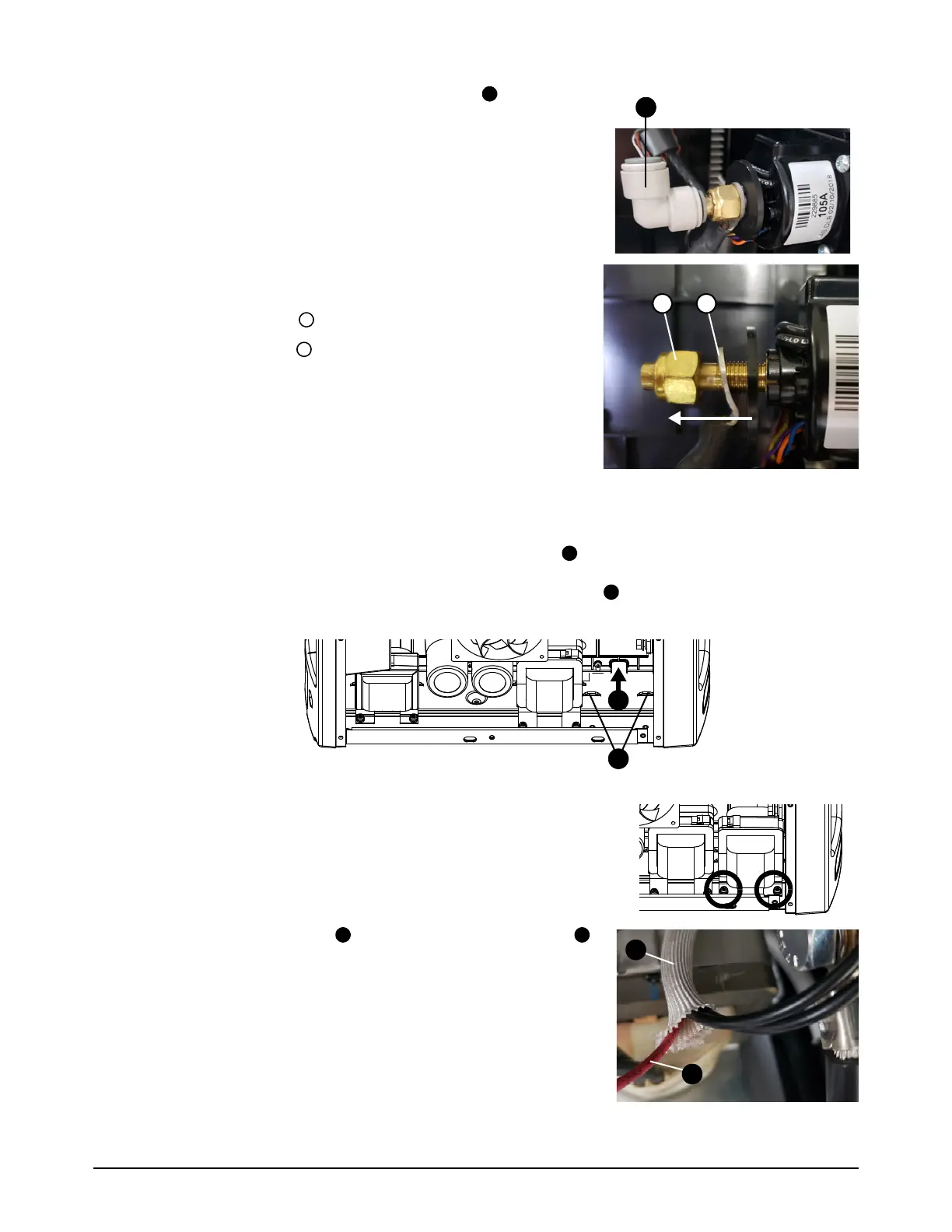

9. Push-to-disconnect the 90° gas inlet fitting from the torch
quick-disconnect receptacle.
10. Remove the following components from the torch
quick-disconnect receptacle:
 Retention nut
 Ring terminal
11 . Remove the output inductor.
Install the output inductor
1. Put the output inductor wires through the open space in the bottom of the center panel.
2. Put the tabs on the rear of the output inductor into the slots on the bottom of the plasma
power supply.
3. Attach the output inductor to the plasma power supply with the
2 supplied mounting screws. Tighten screws to 2.3 Nm
(20 lbfin).
4. Pull the electrode wire through the protective sheath .
3
3
4
5
4
5
1
2
2
1
3
4
3
4
