Hypertherm Powermax65 SYNC User Manual

Service Procedures for the Magnetics
6
Powermax65/85 SYNC Service Parts and Procedures 810440 133

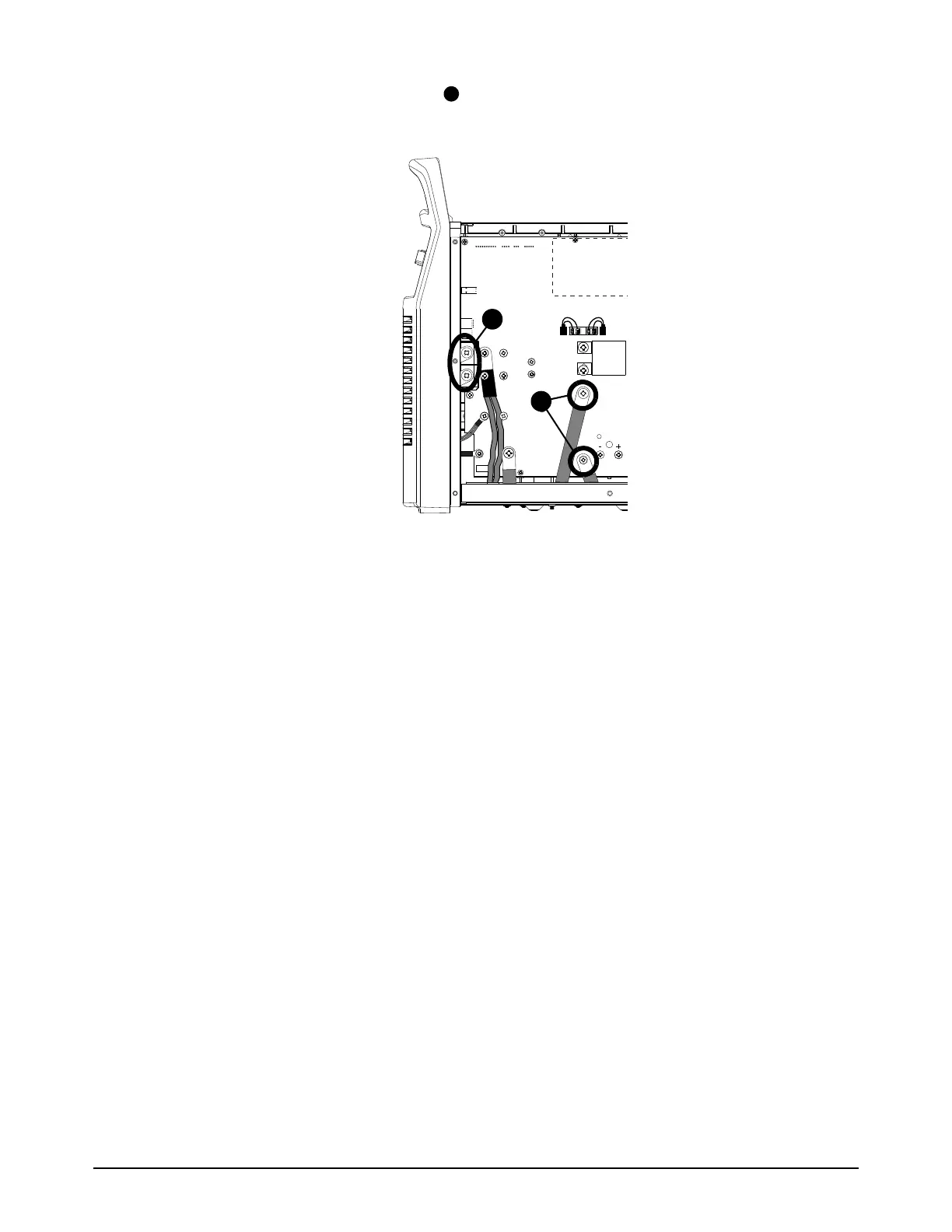

7. Attach the 2 short transformer cables to the power PCB. Tighten the screws to 2.3 Nm
(20 lbfin).
8. Install the end panel bracket. Refer to page 54.
9. Install the component barrier and the plasma power supply cover. Refer to page 51.
4
RED
J32
RED
J21
ORG
J20
J12
B
R
WORK
LEAD
J18J19
J26
J29
T
J28
TP11
R
J4 J2 J1J3
4
3
