Service Procedures for the Gas Line
4
90 810440 Service Parts and Procedures Powermax65/85 SYNC

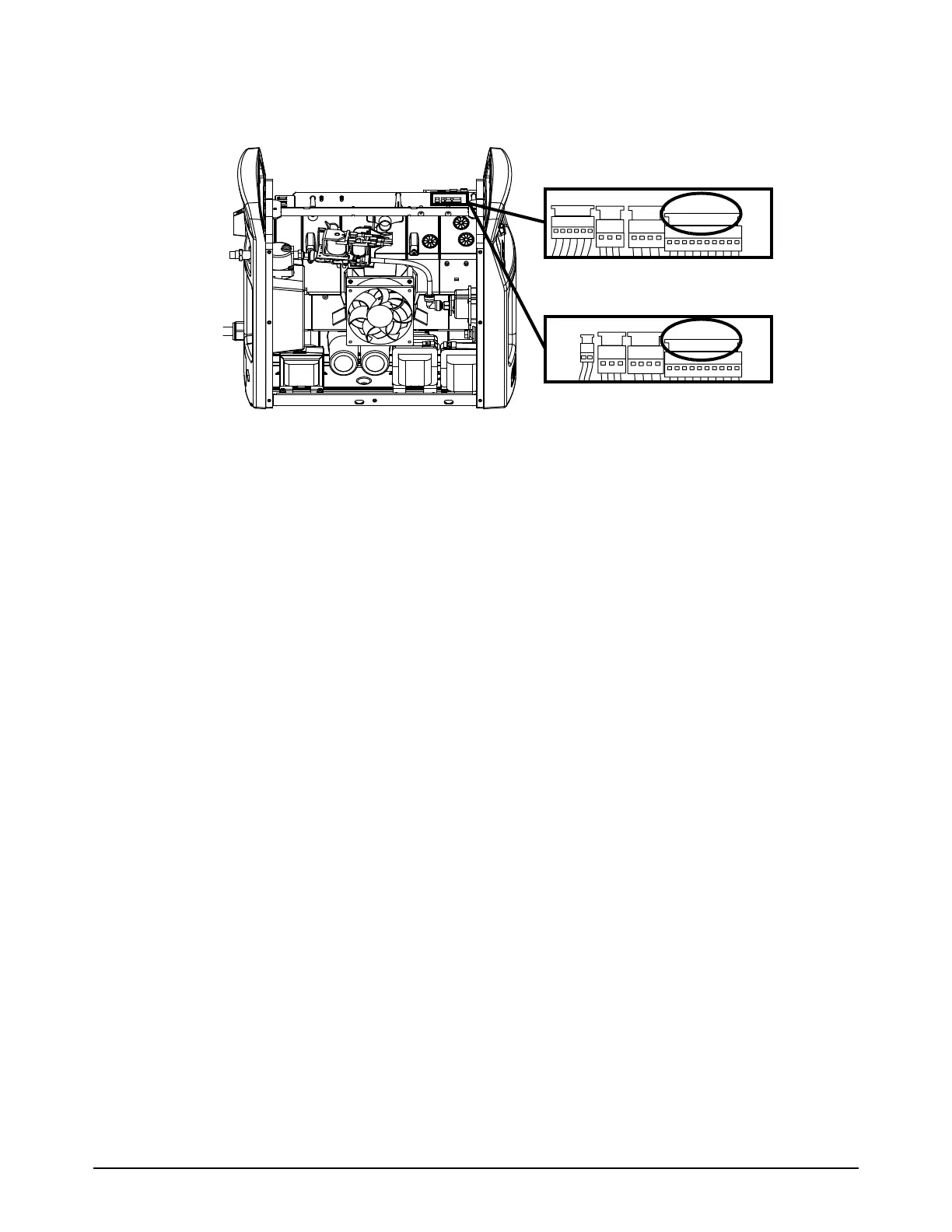

7. Connect the solenoid valve wire connector to J4 (CSA) or J6 (CE/CCC) near the top of the
power PCB.
8. Bundle the fan and solenoid valve wires with a new cable tie.
9. Install the end panel bracket. Refer to page 54.
10. Install the component barrier and the plasma power supply cover. Refer to page 51.
J2 J3
J3
J1
J4
J4 J5
J6
CSA
CE/CCC
