IAI EC-RR6*AH series User Manual

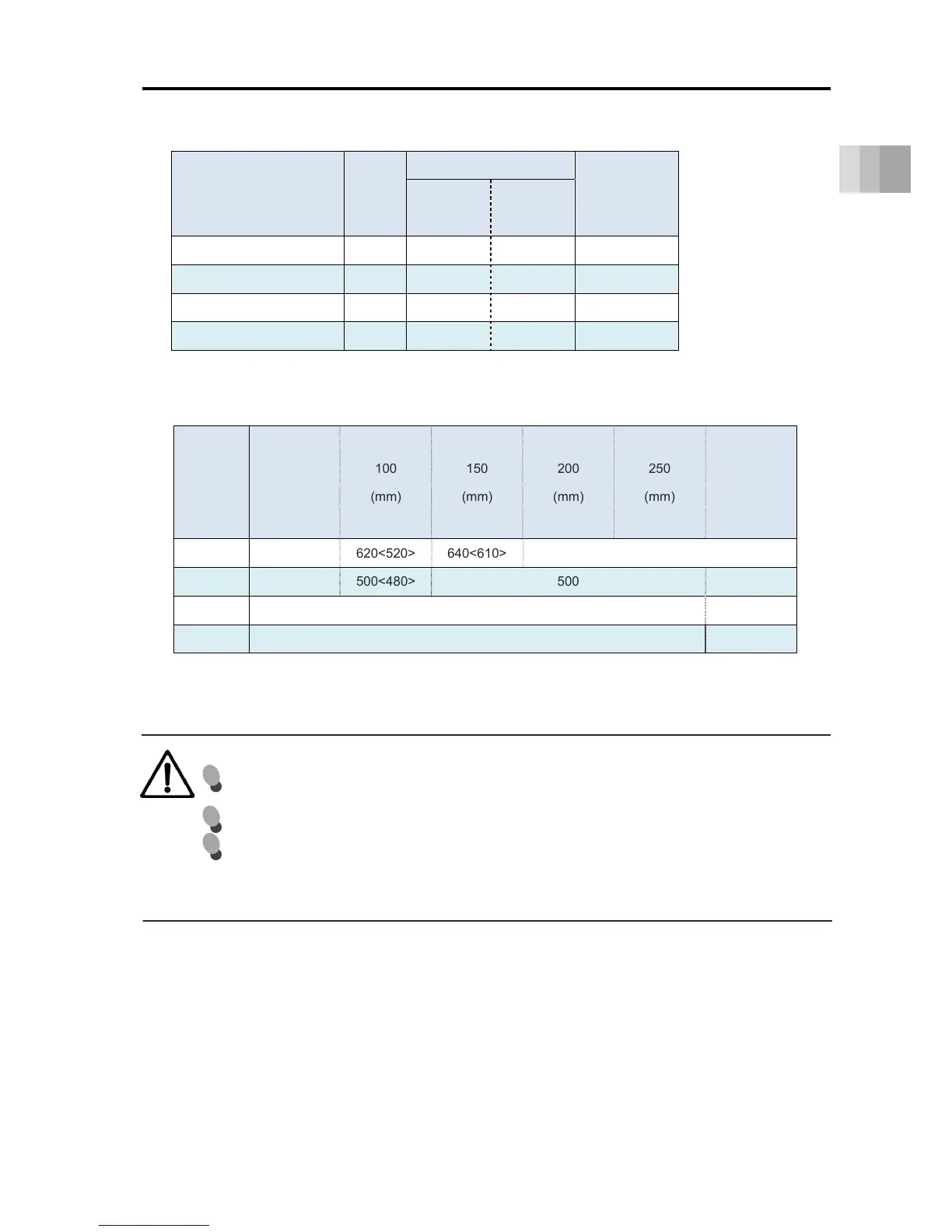

1.2 Mechanical specifications
1-83
1. Specifications
[Lead and Payload (Energy-Saving: Enabled)]
Model
Lead
(mm)
Maximum payload
Max. push
force
(N)
Horizontal
(kg)
Vertical
(kg)
EC-RR6SH-①-② (-③)
20 6 1 56
EC-RR6HH-①-② (-③)
12 25 4 93
EC-RR6MH-①-② (-③)
6 40 10 185
EC-RR6LH-①-② (-③)
3 40 20 370
Legend ①Stroke ②Cable length ③Option
Stroke and Max Speed (Energy-Saving: Enabled)]
Lead
(mm)
50
(mm
100
(mm)
150
(mm)
200
(mm)
250
(mm)
300
(mm)
20 540<370> 620<520> 640<610> 640
12 470<375> 500<480> 500 480
6 250 235
3 125 115
Values in brackets < > are for vertical use. (Unit: mm/s)
Caution
The maximum speed may not be achieved when the stroke or movement distance is
short or when acceleration/deceleration is low.
Setting at or below the minimum speed may lead to abnormal noise or unstable speeds.
The minimum speed can be calculated with the equation below.
Minimum speed [mm/s] = ball screw lead [mm/r] ÷ 800 [p/r] x 1000 [1/s]
(mm/r: movement per 1 motor revolution, p/r: pulse per 1 motor revolution)
