IAI EC-RR6*AH series User Manual

2.5 Installation of rod type
2-25
2. Installation

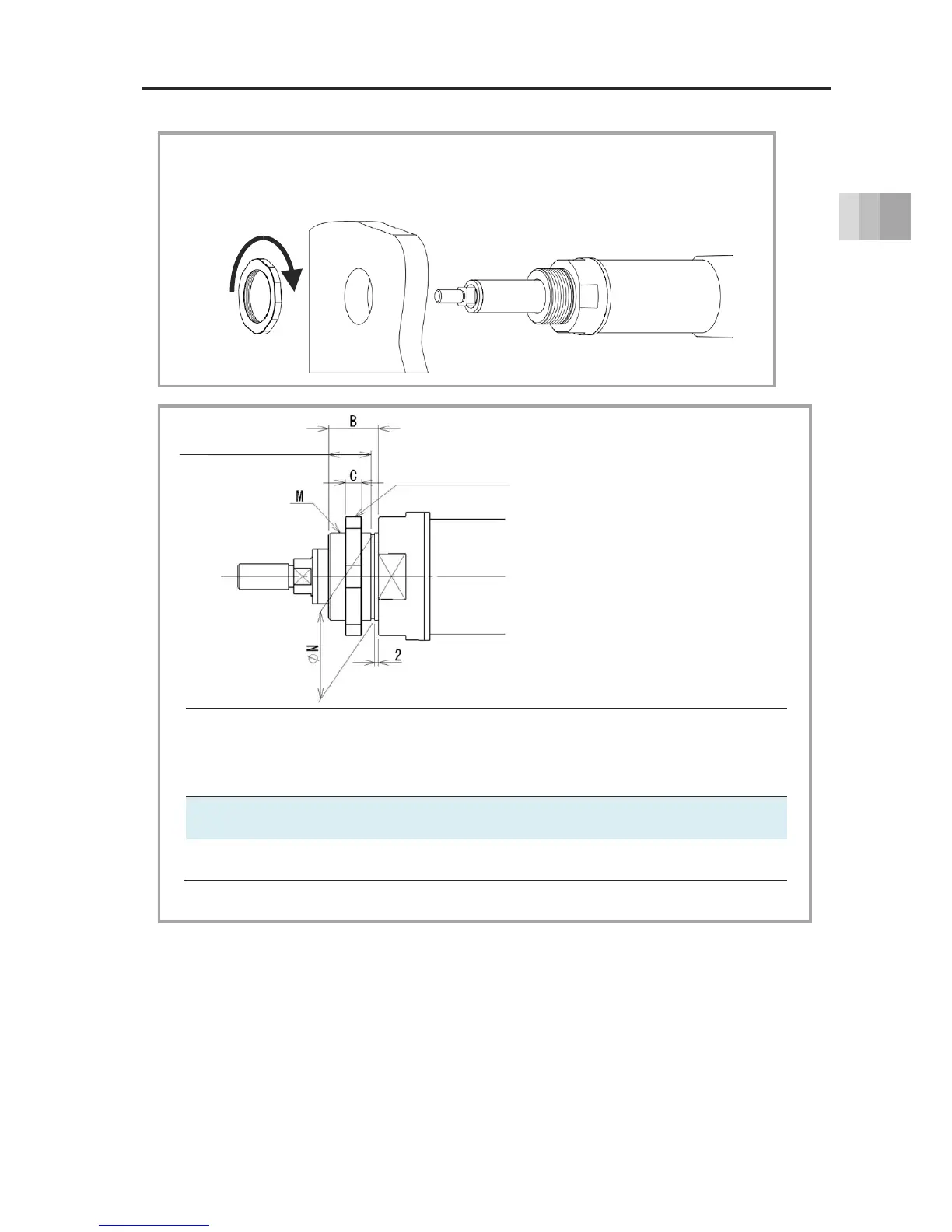

[When using front brackets]
Either the enclosed fixing nuts or the bracket screws can be used.
→ For precautions for mounting, refer to pages 2-27 to 28.
Type
Mounting
screw
M
Spigot
diameter
N
Screw
effective
length
A
Boss
height
B
Fixing
nut
thickness
C
Tightening
torque
EC-R6 M42×1.5 φ42 18mm 22mm 6mm
30.00N･m
EC-R7 M48×1.5 φ48 23mm 27mm 9mm
35.00N･m
A
: Screw effective length
Front fixing nut
