2.6 Installation of radial cylinder type
2-49
2. Installation

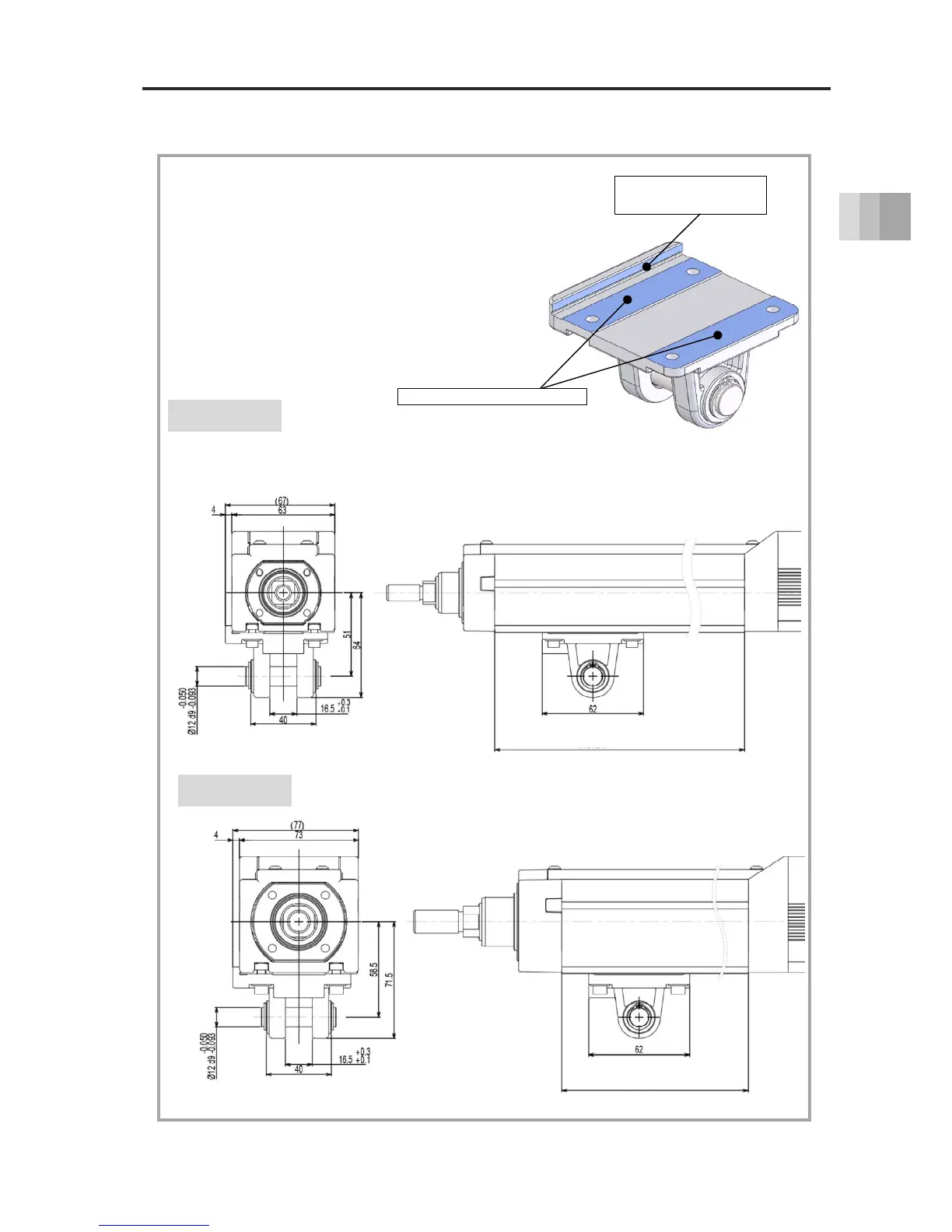

●Body clevis (-QR) mounting method and component dimensions
1. Insert 4 square nuts into the base bottom surface T-slot.
2. Using the inserted square nuts, fix the body clevis bracket
with the bolt. (temporary fixing)
3. Press the body clevis bracket reference surface against
the base bottom reference surface.
4. Fully tighten the bolts to complete the fixation.
For EC-RR6
For EC-RR7
Strikes the base bottom
reference surface
Base bottom mounting surface
Mounting range: ST+130
Mounting range: ST+130
