2.6 Installation of radial cylinder type
2-50
2. Installation

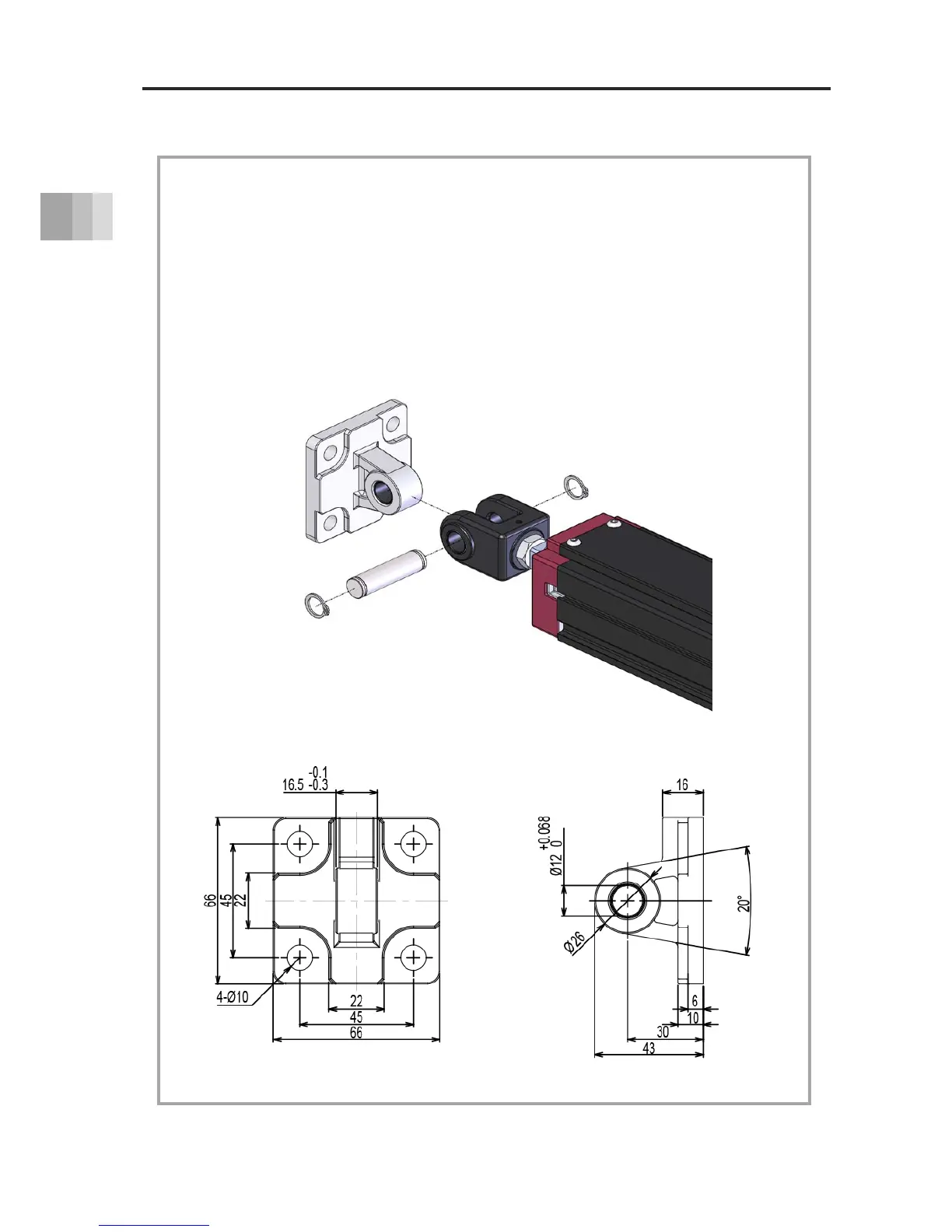

●Oscillation receiving bracket mounting method and component dimensions
1. Insert the oscillation receiving bracket ridge between the knuckle joint and body clevis
ridges.
2. Match the positions of the ridges and pass the clevis pin through.
3. Mount a stop ring on each end of the clevis pin.
* Stop ring: C-shaped stop ring for shaft, nominal diameter 12
4. Mount the oscillation receiving bracket on the equipment.
* Adjust so as to operate smoothly, with no load applied to the bracket or rod,
when operating embedded in the equipment.
To Next Page
