1.2 Mechanical specifications
1-30
1. Specifications

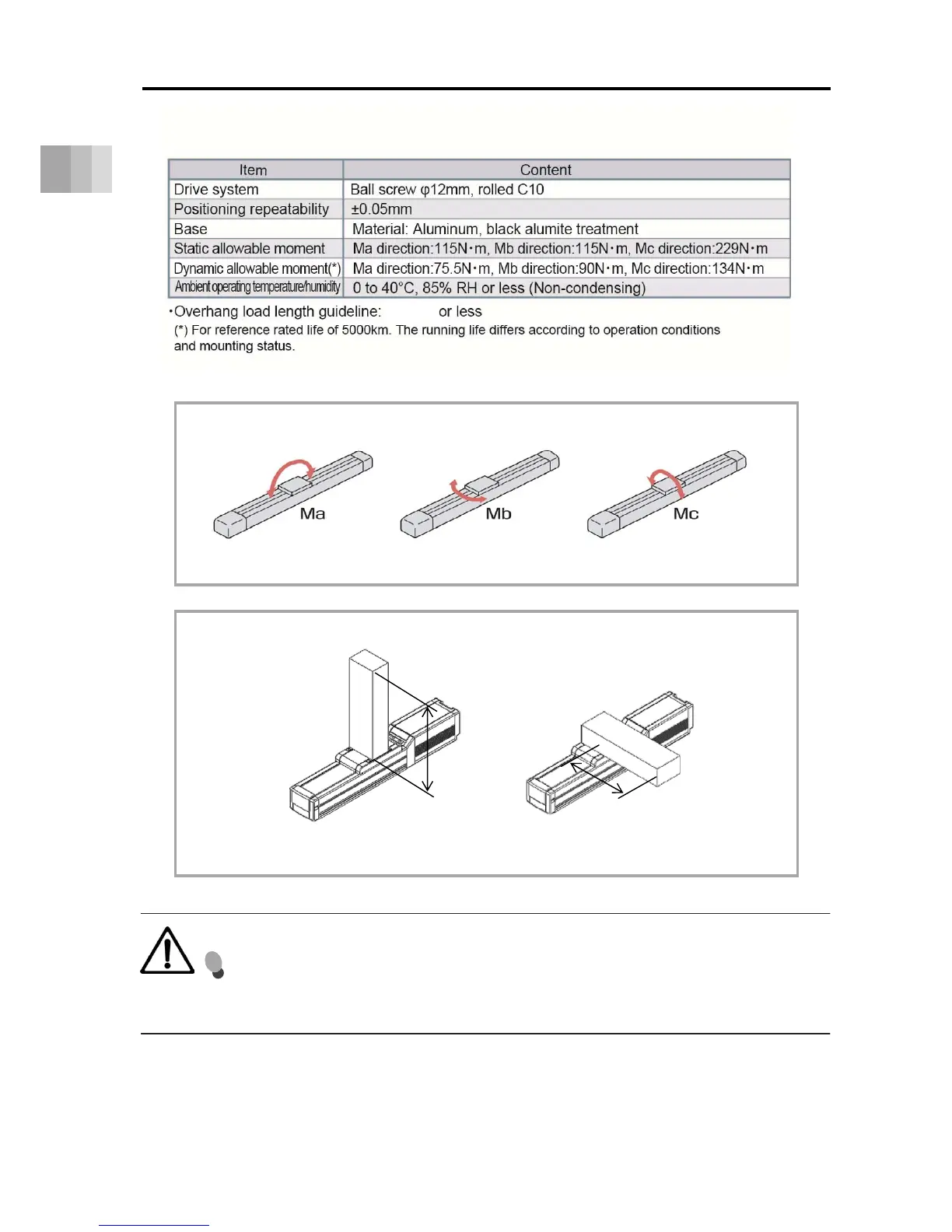

[Actuator Specifications]
Keep the mounted object center of gravity at or below 1/2 the overhang length.
Slider type moment direction
Slider type overhang load length (L = 300mm or less)
Ma direction Mb/Mc direction
Caution
If the actuator is used with excessive allowable moment and overhang load, it may not
only lead to abnormal noise and vibration but also significantly reduce the life of the
ELECYLINDER.
L
L
(Pitching)
(Yawing) (Rolling)
300mm
