1.2 Mechanical specifications
1-31
1. Specifications

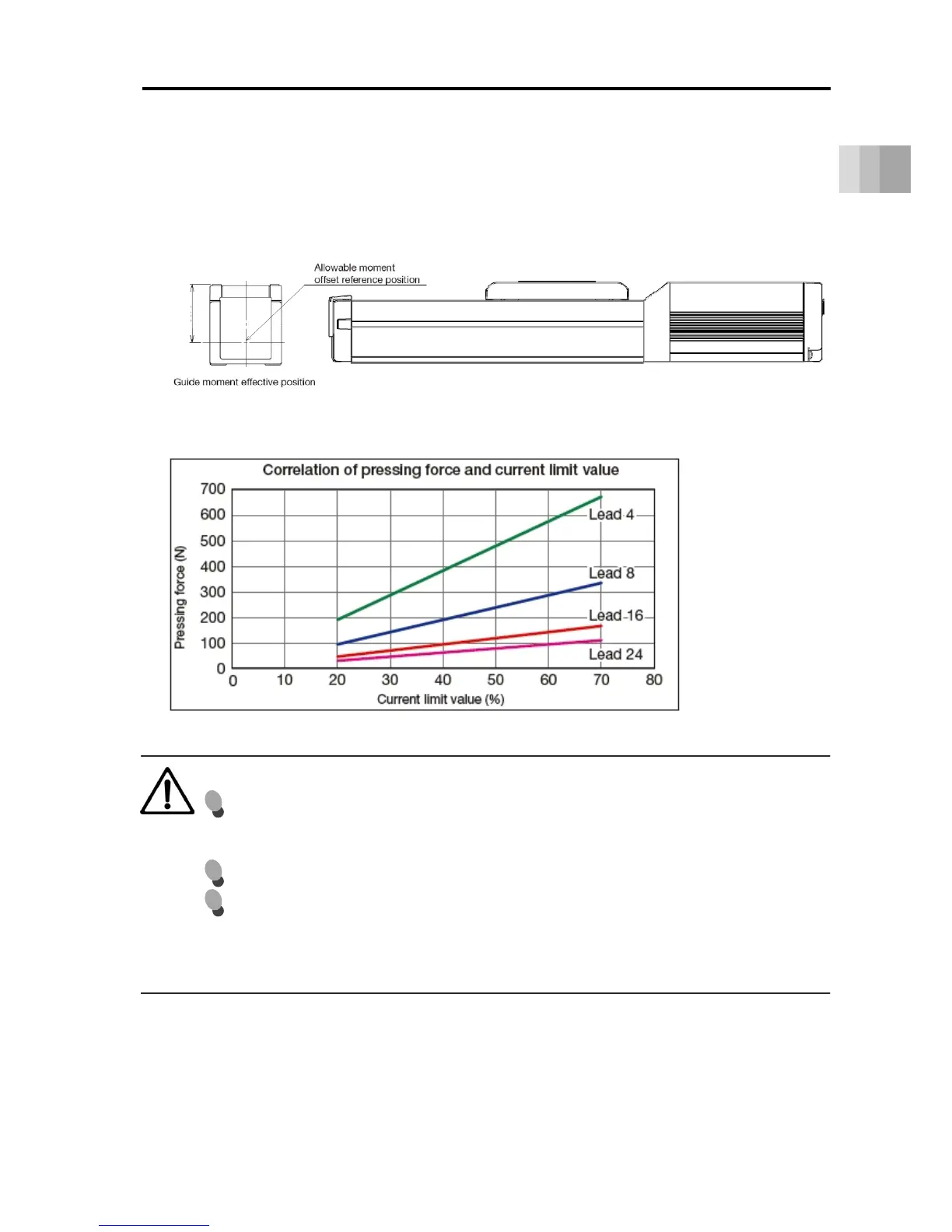

Calculate the recoil moment generated by the pressing force when performing pressing operation
with the slider type. The allowable moment offset reference position is shown for the calculation.
Configure the current limit value to ensure that the recoil moment does not exceed the (Ma/Mb)
dynamic allowable moment given in the catalog specifications.
[Pressing Force and Current Limit Value]
Caution
The relation of the current limit and the pressing force is a guideline at speed of 20mm/s.
There is some variance in the actual pressing force. The variance increases when the
current value is low.
The current limit value cannot be set outside the 20 to 70% range.
When the approach speed up to the pressing start position is 20mm/s or less, pressing
operation will take place at approach speed. When the pressing speed is 20mm/s or
less, the pressing force will become unstable, and failure to operate normally is
possible.
Guide moment effective position:
58.0mm from slider top surface
Slider type
58.0
