368 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

3. The host is listed in the original Configure Hosts (optional) panel, as shown in Figure 7-20.

Click Next to display the Map Volumes to Host (optional) panel.

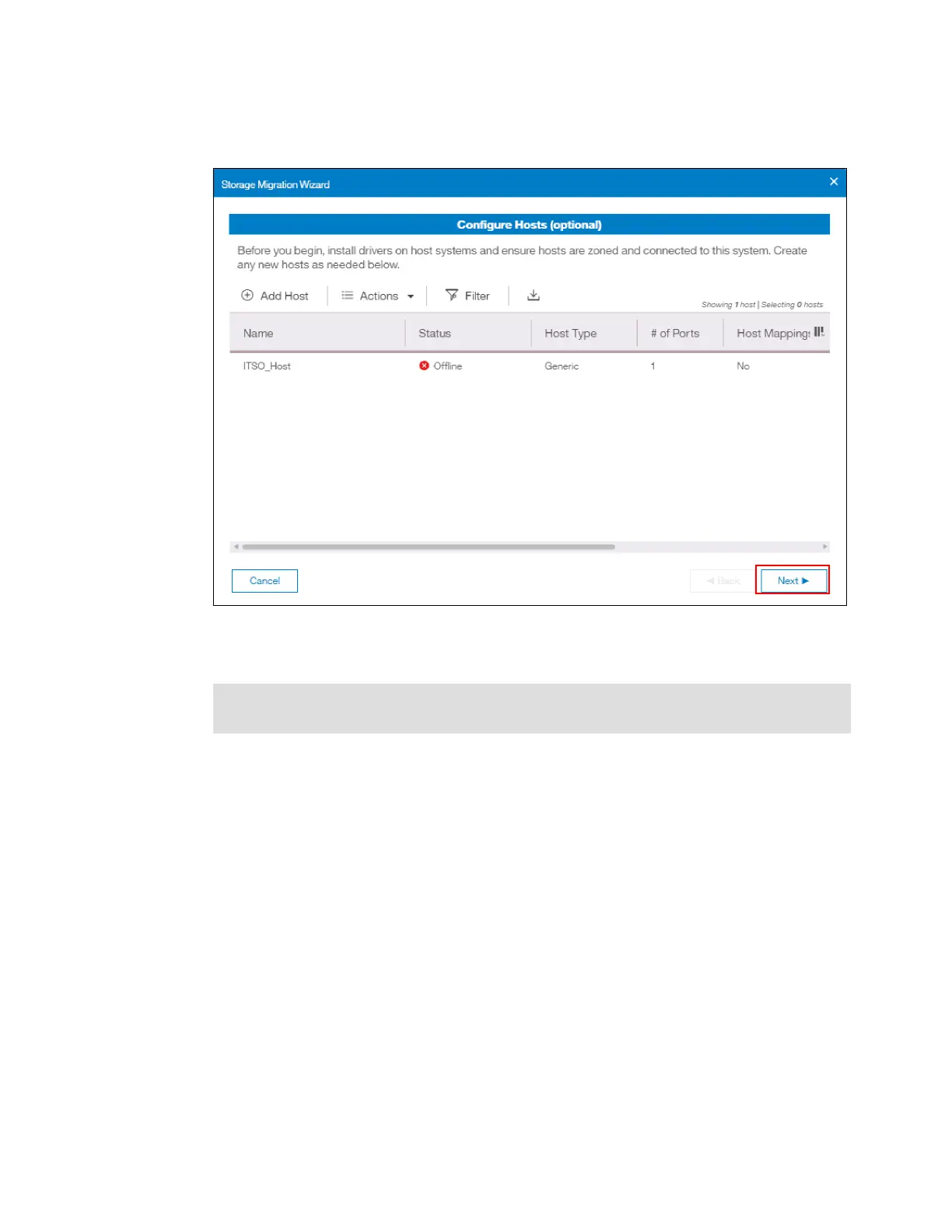

Figure 7-20 Configure Hosts panel that lists the host

Mapping volumes to hosts

Note: This step is optional. You can bypass it by selecting Next and moving to “Selecting a

storage pool” on page 372.
