9: MOVE INSTRUCTIONS

9-2 OPENNET CONTROLLER USER’S MANUAL

Data Type: Word

Data move operation for the integer data type is the same as for the word data type.

Data Type: Double Word

Data move operation for the long data type is the same as for the double-word data type.

Data Type: Word

Data Type: Double Word

Double-word Data Move in Data Registers and Link Registers

The data movement differs depending on the selected double-word operand. When a data register, timer, or counter is

selected as a double-word operand, the upper-word data is loaded from or stored to the ﬁrst operand selected. The lower-

word data is loaded from or stored to the subsequent operand.

On the contrary, when a link register is selected as a double-word operand, the lower-word data is loaded from or stored to

the ﬁrst operand selected. The upper-word data is loaded from or stored to the subsequent operand.

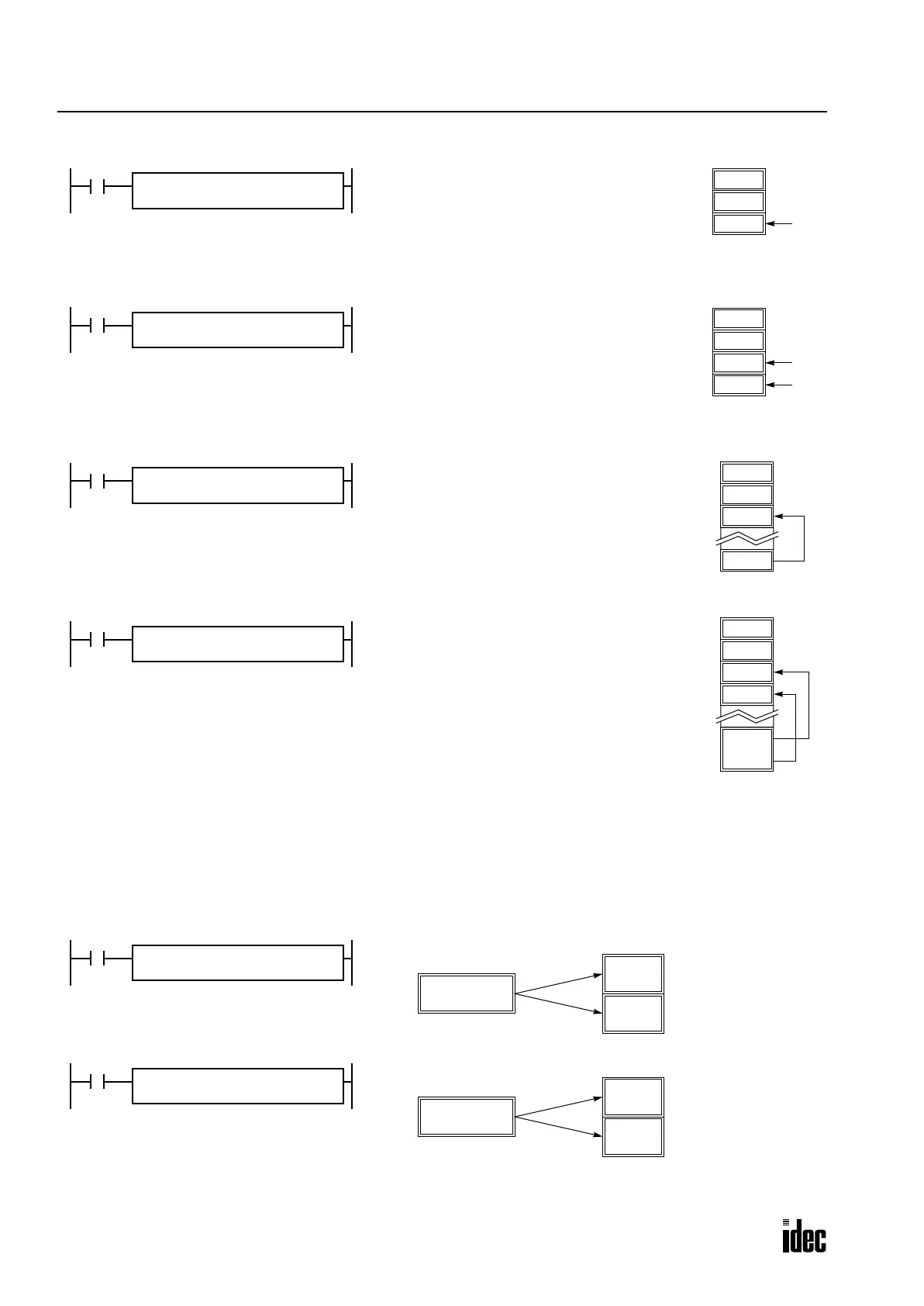

REP

810 → D2

When input I0 is on, constant 810 designated

by source operand S1 is moved to data register

D2 designated by destination operand D1.

810

S1 –

810

D1 –

MOV(W)

REP

810 → D2·D3

When input I0 is on, constant 810 designated

by source operand S1 is moved to data registers

D2 and D3 designated by destination operand

D1.

S1 –

810

D1 –

MOV(D)

810

REP

D10 → D2

When input I1 is on, the data in data register

D10 designated by source operand S1 is moved

to data register D2 designated by destination

operand D1.

930

D10

S1 –

D10

D1 –

MOV(W)

REP

D10·D11 → D2·D3

When input I1 is on, the data in data registers

D10 and D11 designated by source operand S1

is moved to data registers D2 and D3 desig-

nated by destination operand D1.

Double-

D10

S1 –

D10

D1 –

MOV(D)

D11

word

Data

305419896

Double-word

(12345678h)

Upper Word D0

4660

(1234h)

Lower Word D1

22136

(5678h)

REPS1 –

305419896

D1 –

MOV(D)

Source Data

Data Move to Data Registers

Double-word Destination Operand: Data Register

305419896

Double-word

(12345678h)

Lower Word L100

22136

(5678h)

Upper Word L101

4660

(1234h)

REPS1 –

305419896

D1 –

L100

MOV(D)

Source Data

Data Move to Link Registers

Double-word Destination Operand: Link Register
