2: MODULE SPECIFICATIONS
2-40 OPENNET CONTROLLER USER’S MANUAL

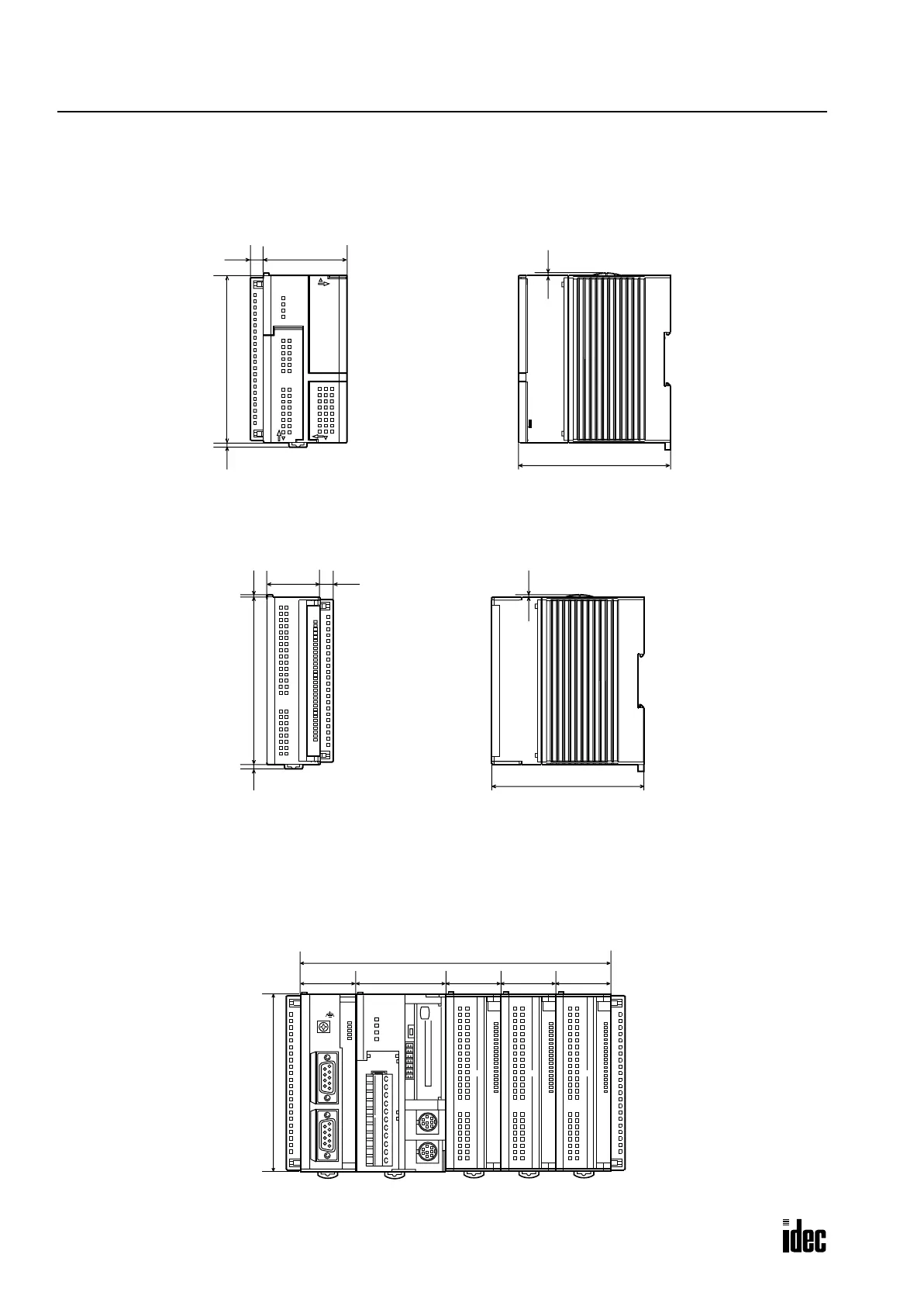

Dimensions
All OpenNet Controller modules have the same profile for consistent mounting on a DIN rail.
CPU Module
Digital I/O, Analog I/O, Expansion Power Supply, Remote I/O Master, DeviceNet Slave, and
L
ONWORKS Interface Modules
Example: The following figure illustrates a system setup consisting of a remote I/O master module, a CPU module, and
three I/O modules.
1104.5
558.5
100
1.8
35 8.5
100
110 1.8
1.8
4.5
Digital I/O, analog I/O, expansion power supply, remote I/O master, Devicenet Slave,
and L
ONWORKS interface modules have the same outside dimensions.
195
55
3535 35 35
110
V.24 InterfaceREMOTE OUT
idec
All dimensions in mm.
