IDEC OpenNet series User Manual

2: MODULE SPECIFICATIONS
OPENNET CONTROLLER USER’S MANUAL 2-39
LONWORKS Interface Module
The OpenNet Controller can be linked to LONWORKS networks. For communication through the LONWORKS network, the
LONWORKS interface module is available.
For details about the LONWORKS interface module and LONWORKS communication system, see page 26-1.

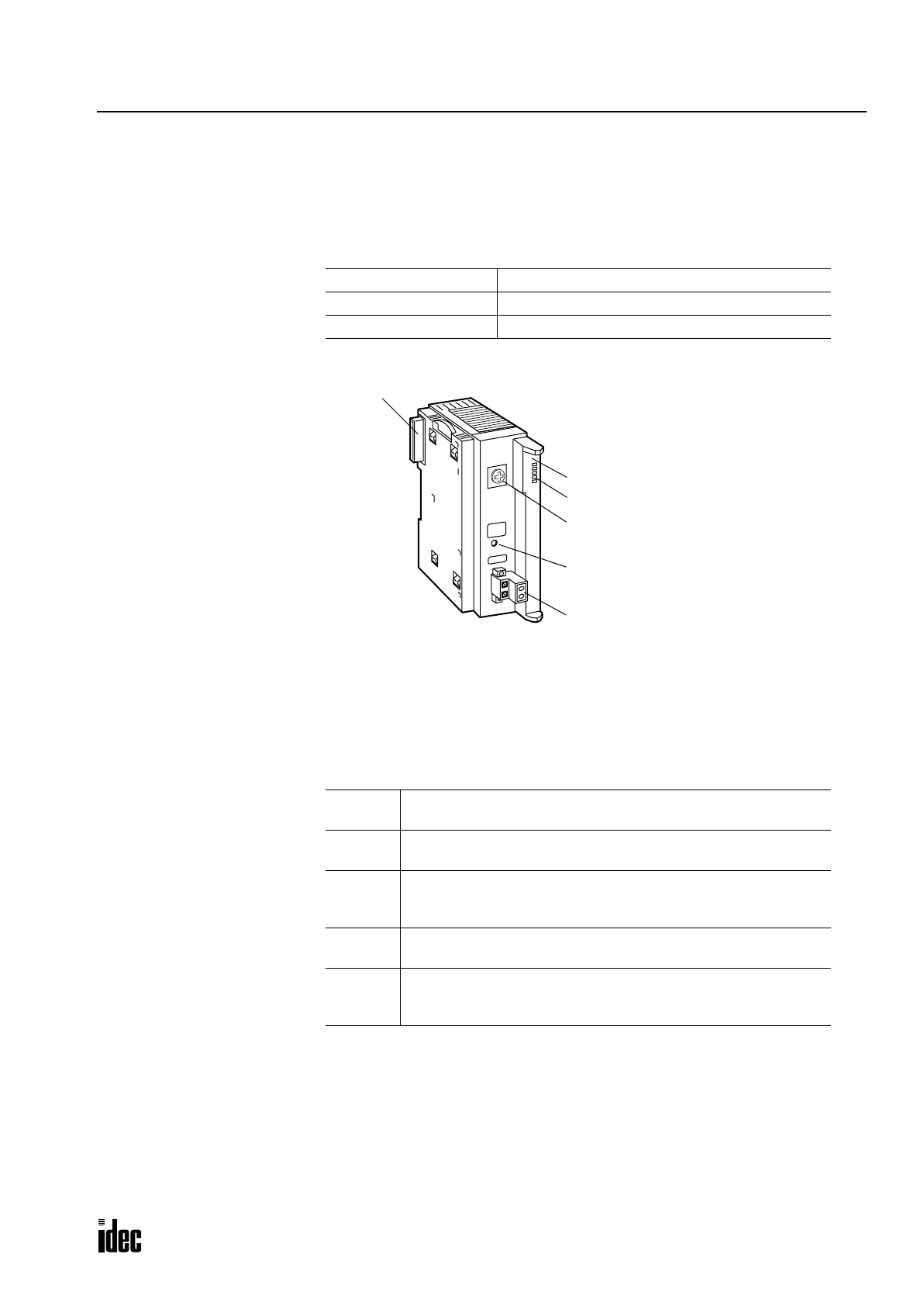

LONWORKS Interface Module Type Number and Weight
Parts Description
(1) Module ID FC3A-SX5LS1 indicates the LONWORKS interface module ID.
(2) FG Terminal Frame ground
(3) Service Request Button Pushbutton used for network management
(4) Connector Network interface connector for connecting an input communication cable
(5) Status LED Indicates operating status
(6) Expansion Connector Connects to CPU and other modules.
Module Name LONWORKS Interface Module
Type No. FC3A-SX5LS1
Weight (approx.) 180g
POW
POWER
Green ON: Power is on
RUN
RUN
Green ON: Normal operation
ERR
COM_ERROR
Red ON: Communication error
OFF: Normal
I/O
I/O_ERROR
Red ON: Access error to the CPU through I/O bus
SER
SERVICE
Yellow ON: Application program not configured
Yellow Flash: Network management not configured
(1) Module ID
(5) Status LED
(3) Service Request Button
(4) Connector
(2) FG Terminal
SERVICE
REQUEST
LON
(6) Expansion Connector
