2: MODULE SPECIFICATIONS
OPENNET CONTROLLER USER’S MANUAL 2-31

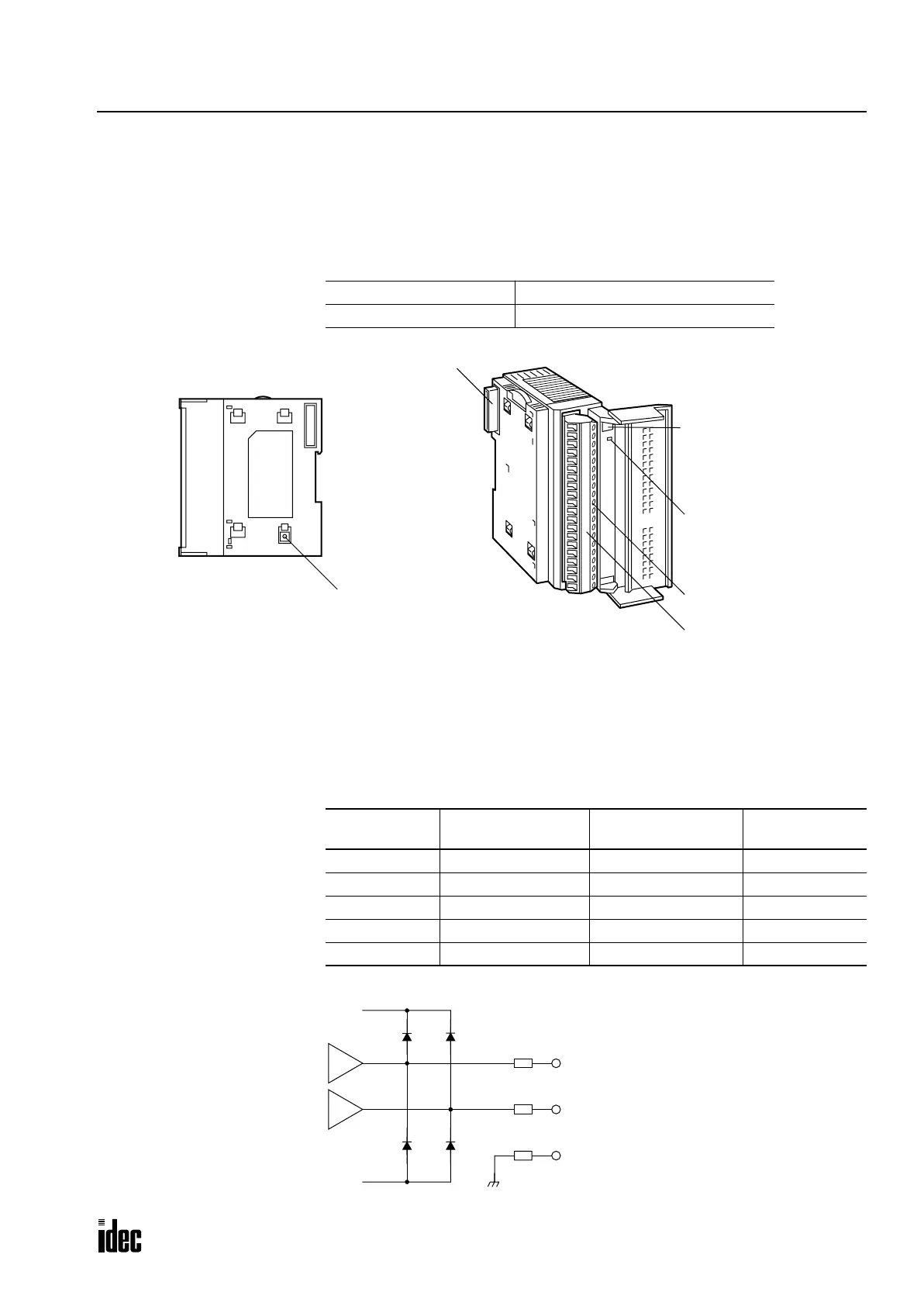

Analog Output Module (D/A Converter)
The 12-bit analog output module converts digital data of 0 through 4000 to 2 channels of analog signals. The analog output
module is a functional module and the digital data for conversion must be stored to a link register, depending on the analog
channel and the mounting slot number of the analog output module in the system setup. The output mode can be selected
using the rotary switch to meet five different analog signal ranges; 0 to 10V, ±10V, 0 to 5V, ±5V, or 4 to 20 mA.
Analog Output Module Type Number
Parts Description
(1) Module ID D/A indicates the analog output module ID.
(2) Power LED Turns on when power is on.
(3) Cable Terminal Screw terminal block
(4) Terminal Label Indicates terminal numbers on the terminal block.
(5) Expansion Connector Connects to CPU and other modules.
(6) Rotary Switch Selects the output mode from five different signal ranges
Module Name 2-channel Analog Output Module
Type No. FC3A-DA1221
Rotary Switch
Position
Output Signal Range
Resolution
(Output value of LSB)
Output when
Stopped
0 0 to 10V DC 2.5 mV 0V
1 ±10V DC 5 mV –10V
2 0 to 5V DC 1.25 mV 0V
3 ±5V DC 2.5 mV –5V
4 4 to 20 mA DC 4 µA 4 mA
(5) Expansion Connector
(1) Module ID
(2) Power LED
(3) Cable Terminal
(4) Terminal Label
(6) Rotary Switch
Voltage Output
COM
+V
–V
Current Output
T
ype o
f
P
ro
t
ec
ti
on
