OPENNET CONTROLLER USER’S MANUAL 2-1
2: MODULE SPECIFICATIONS
Introduction
This chapter describes OpenNet Controller modules, parts names and specifications of each module.
Available modules include CPU modules, digital I/O modules, analog I/O modules, expansion power supply module,
remote I/O master module, and OpenNet interface modules such as DeviceNet slave and LONWORKS interface modules.
Analog I/O modules and OpenNet interface modules are also called functional modules. A maximum of seven functional
modules can be mounted with one CPU module.
CPU Module
The CPU modules are available in sink and source output types which have a transistor sink or source output of the high-
speed counter, respectively. Either type is available with or without a memory card connector. All CPU modules have two
RS232C ports and one RS485 port.
CPU Module Type Numbers

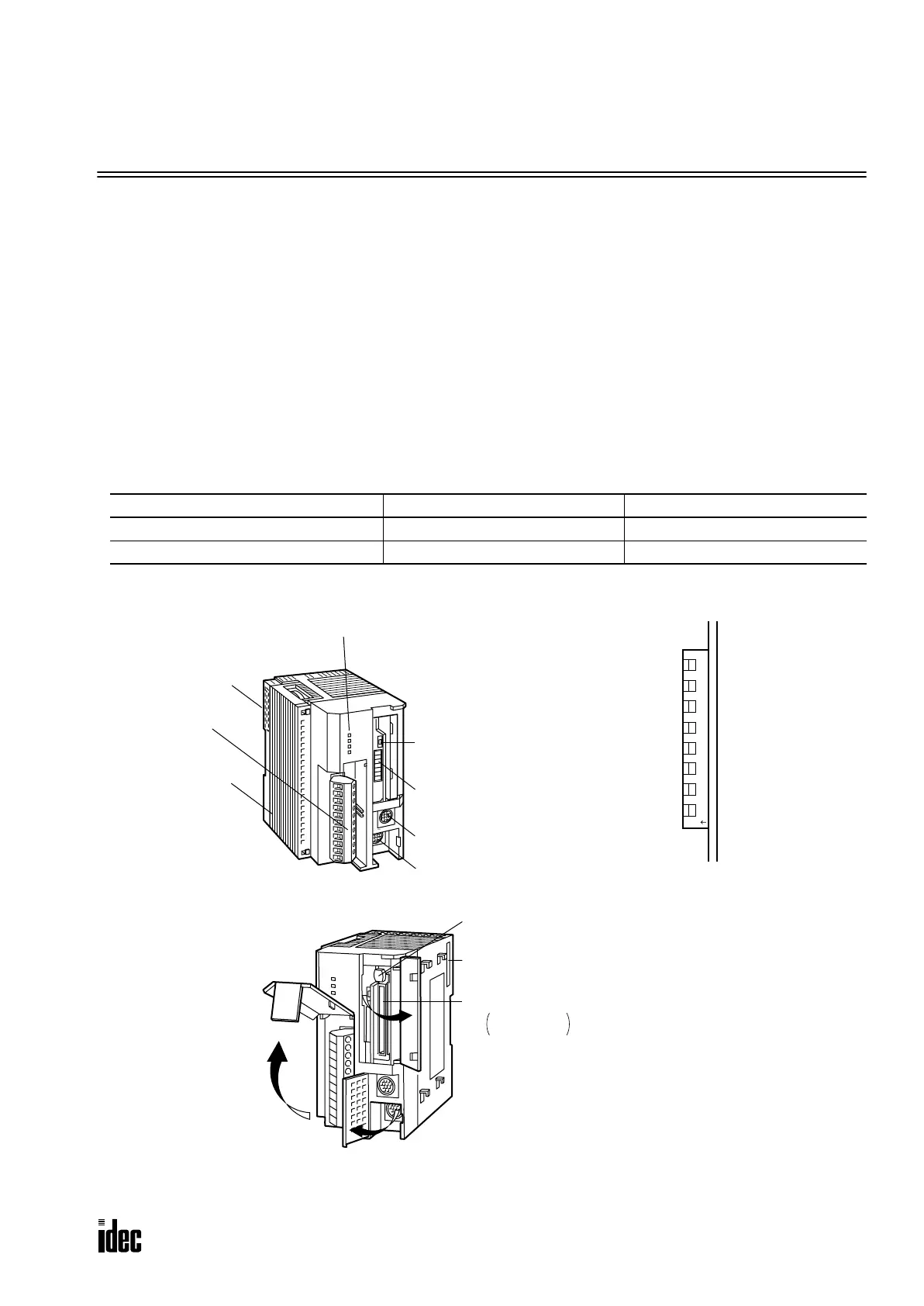

Parts Description
Functions of each part are described on the following pages.
CPU Module Types Without Memory Card Connector With Memory Card Connector
High-speed Counter Sink Output Type FC3A-CP2K FC3A-CP2KM
High-speed Counter Source Output Type FC3A-CP2S FC3A-CP2SM
(1) Status LED
(10) Remote I/O
Master Module
Connector
(2) Communication
Enable Button
(3) Communication
Selector
DIP Switch
(7) RS232C Port 2
(6) RS232C Port 1
(8) Terminal Block
(11) End Plate
12345678
O
N
Communication Selector DIP Switch
Opening the Covers
(9) Expansion Connector
(4) Memory Card Connector
(5) Memory Card
Eject Button
FC3A-CP2KM
FC3A-CP2SM
