IDEC OpenNet series User Manual

25: DEVICENET SLAVE MODULE
25-2 OPENNET CONTROLLER USER’S MANUAL

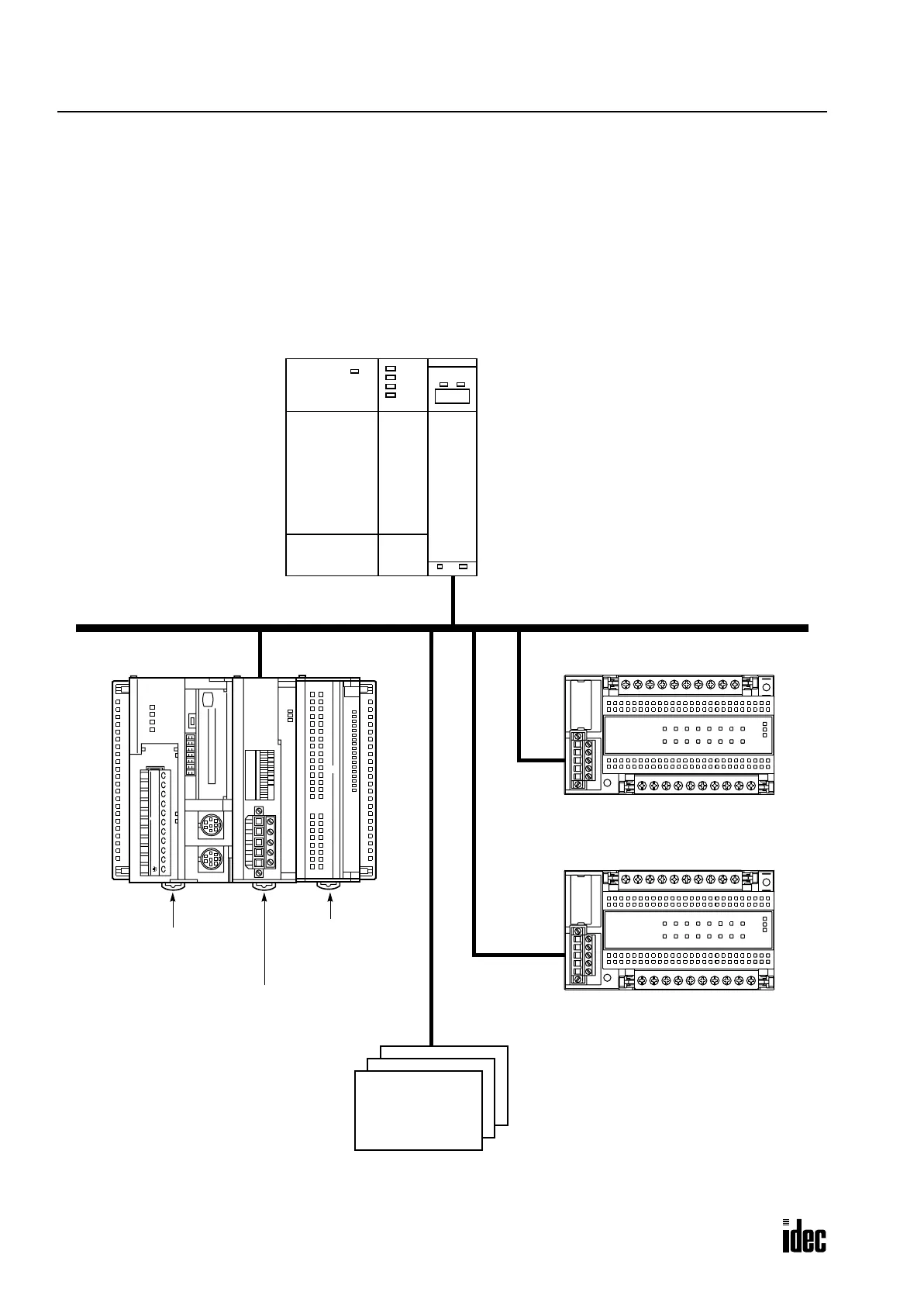

DeviceNet Network System Setup
Various DeviceNet compliant devices, such as the DeviceNet slave module and IDEC SX5D communication I/O termi-
nals, can be connected to the DeviceNet network.
The DeviceNet network requires a DeviceNet master module available from other manufacturers. The
OpenNet Controller
can be used as a slave station by adding the DeviceNet slave module to the right of the OpenNet Controller CPU module.
A maximum of seven OpenNet slave modules, such as DeviceNet slave modules and L
ONWORKS interface modules, and
analog I/O modules can be mounted with one OpenNet Controller CPU module.
DeviceNet
STATUS
MODULE NET
ADDRESS/ERROR
idec
NO
H/L
DR1
DR0
NA5
NA4
NA3
NA2
NA1
NA0
ABG
RS485
COM A B Z
HSC OUT
+24V 0V
POWER
RUN
ERROR
HSC OUT
0
1
2
3
4
5
6
7
10
11
12
13
14
15
16
17
POW
MNS
I O
POW
MNS
I O
SX5D
DeviceNet
IDEC
OpenNet Controller
CPU Module
I/O Module
DeviceNet Slave Module
FC3A-SX5DS1
IDEC SX5D Communication I/O Terminal
DeviceNet Master Station
POW
MNS
I O
SX5D
DeviceNet
IDEC SX5D Communication I/O Terminal
Other DeviceNet Compliant Devices
DeviceNet Network
Example:
Rockwell Automation
SLC Processor
with 1747-SDN
DeviceNet Scanner
