Input Module
Digital input modules are available in 16- and 32-point DC input modules and 8-point AC input modules. Four different
connector/terminal styles are available.
Input Module Type Numbers
Parts Description
(1) Module ID Indicates the input module ID.
DC IN: 24V DC sink/source input, 16 or 32 points
AC IN: 100V AC input, 8 points
(2) Status LED Turns on when input is on.
(3) Terminal Block Cover The terminal block cover flips open to the right.
When using long ferrules for wiring, the terminal block cover may be removed.
(4) Cable Terminal/Connector Five different terminal/connector styles are available for wiring.
(5) Terminal Label Indicates terminal numbers 1 through 20 on the terminal block.
(6) Expansion Connector Connects to CPU and other modules.
Module Name 16-point DC Input 32-point DC Input 8-point AC Input
Screw Terminal FC3A-N16B1 — FC3A-N08A11
Nylon Connector
FC3A-N16B3 ——
— FC3A-N32B4 —
Fujitsu Connector — FC3A-N32B5 —
(6) Expansion Connector
(1) Module ID
(2) Status LED
(3) Terminal Block Cover
(4) Cable Terminal/Connector
(5) Terminal Label

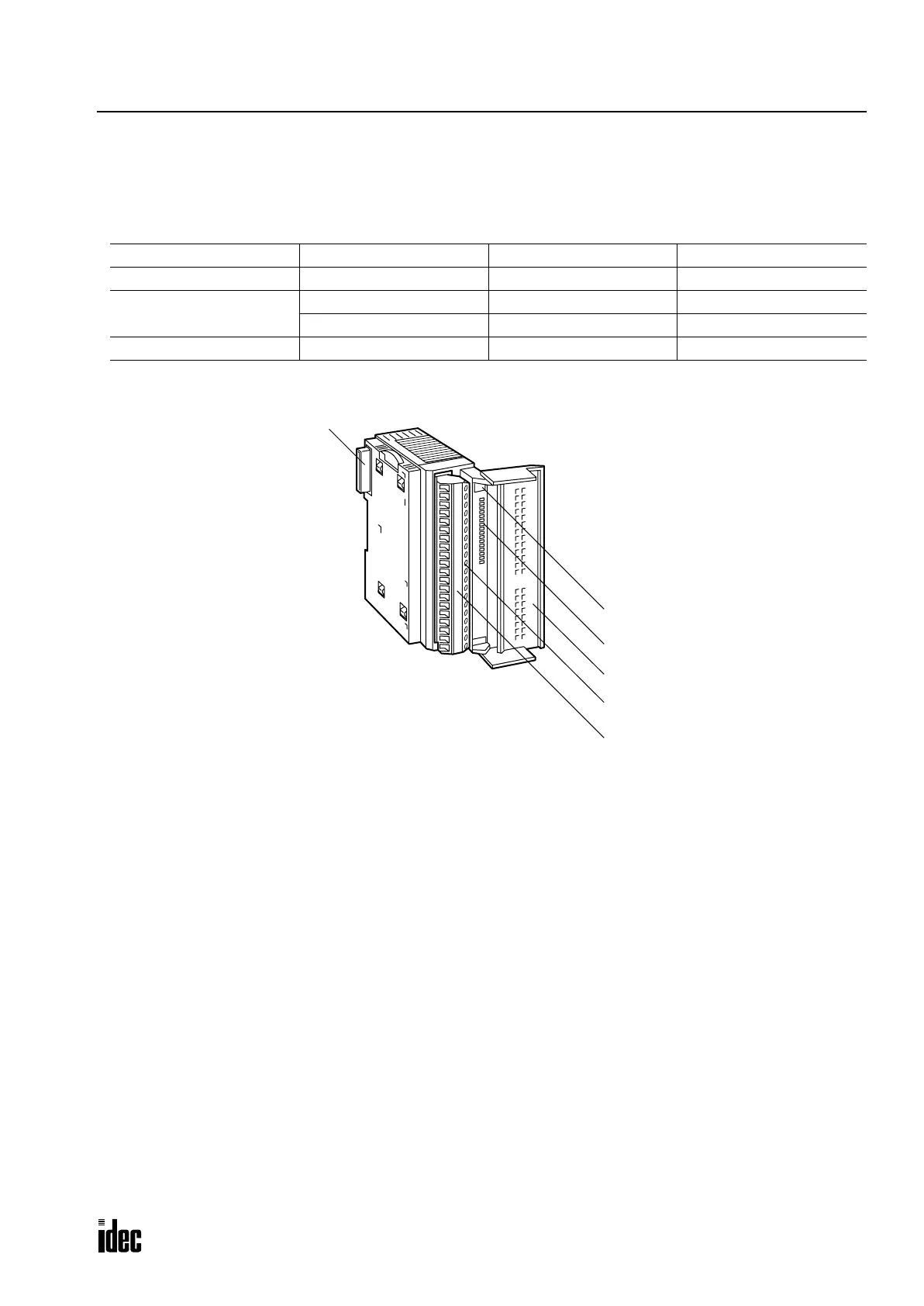

This figure illustrates a screw terminal type input module.
