14: DATA CONVERSION INSTRUCTIONS
OPENNET CONTROLLER USER’S MANUAL 14-5

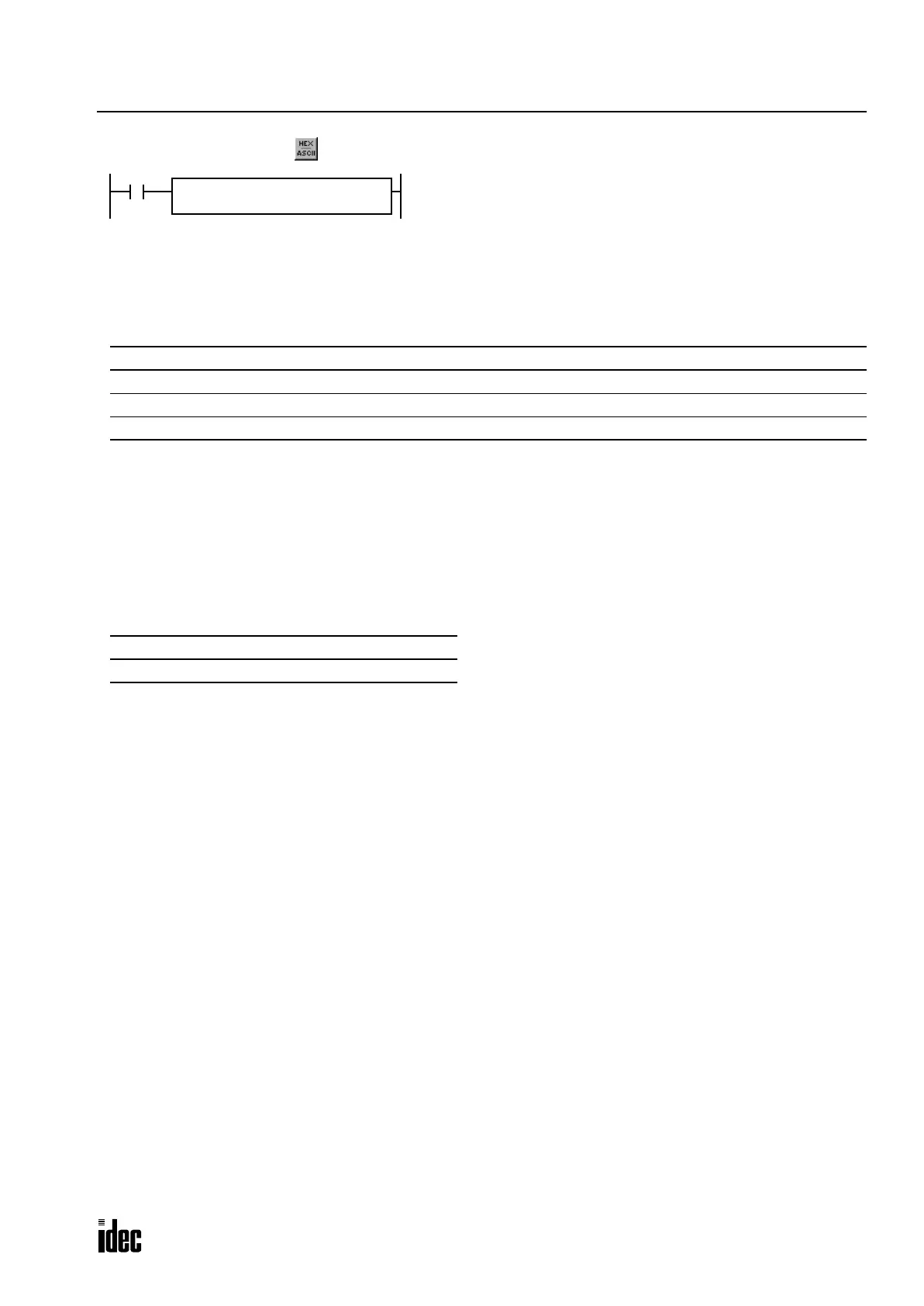

HTOA (Hex to ASCII)
Valid Operands
For the valid operand number range, see page 6-2.
When T (timer) or C (counter) is used as S1 or S2, the timer/counter current value is read out.
The quantity of digits to convert can be 1 through 4. Make sure that the quantity of digits designated by S2 is within the
valid range. If the S2 data is out of the valid range, a user program execution error will result, turning on special internal
relay M8004 and the ERROR LED.
Since the HTOA instruction is executed in each scan while input is on, a pulse input from a SOTU or SOTD instruction
should be used as required.
Valid Data Types
When a bit operand such as I (input), Q (output), M (internal relay), or R (shift register) is designated as the source, 16
points (word data type) are used.
When a word operand such as T (timer), C (counter), D (data register), or L (link register) is designated as the source or
destination, 1 point (word data type) is used.
Operand Function I Q M R T C D L Constant Repeat
S1 (Source 1) Binary data to convert XXXXXXXX X —
S2 (Source 2) Quantity of digits to convert XXXXXXXX 1-4 —
D1 (Destination 1) Destination to store conversion results —————— XX ——
W (word) I (integer) D (double word) L (long)
X ———
S1 → D1, D1+1, D1+2, D1+3
When input is on, the 16-bit binary data designated by S1 is read from
the lowest digit as many as the quantity of digits designated by S2,
converted into ASCII data, and stored to the destination starting with
the operand designated by D1.
The quantity of digits to convert can be 1 through 4.
HTOA(W) S1
*****
S2
*****
D1
*****
