17: USER COMMUNICATION INSTRUCTIONS
OPENNET CONTROLLER USER’S MANUAL 17-3
Setting Communication Parameters Using WindLDR
When using the user communication function to communicate with an external RS232C device, set the communication
parameters for the OpenNet Controller to match those of the external device
Note: Since communication parameters in the Function Area Settings relate to the user program, the user program must be
downloaded to the OpenNet Controller after changing any of these settings.

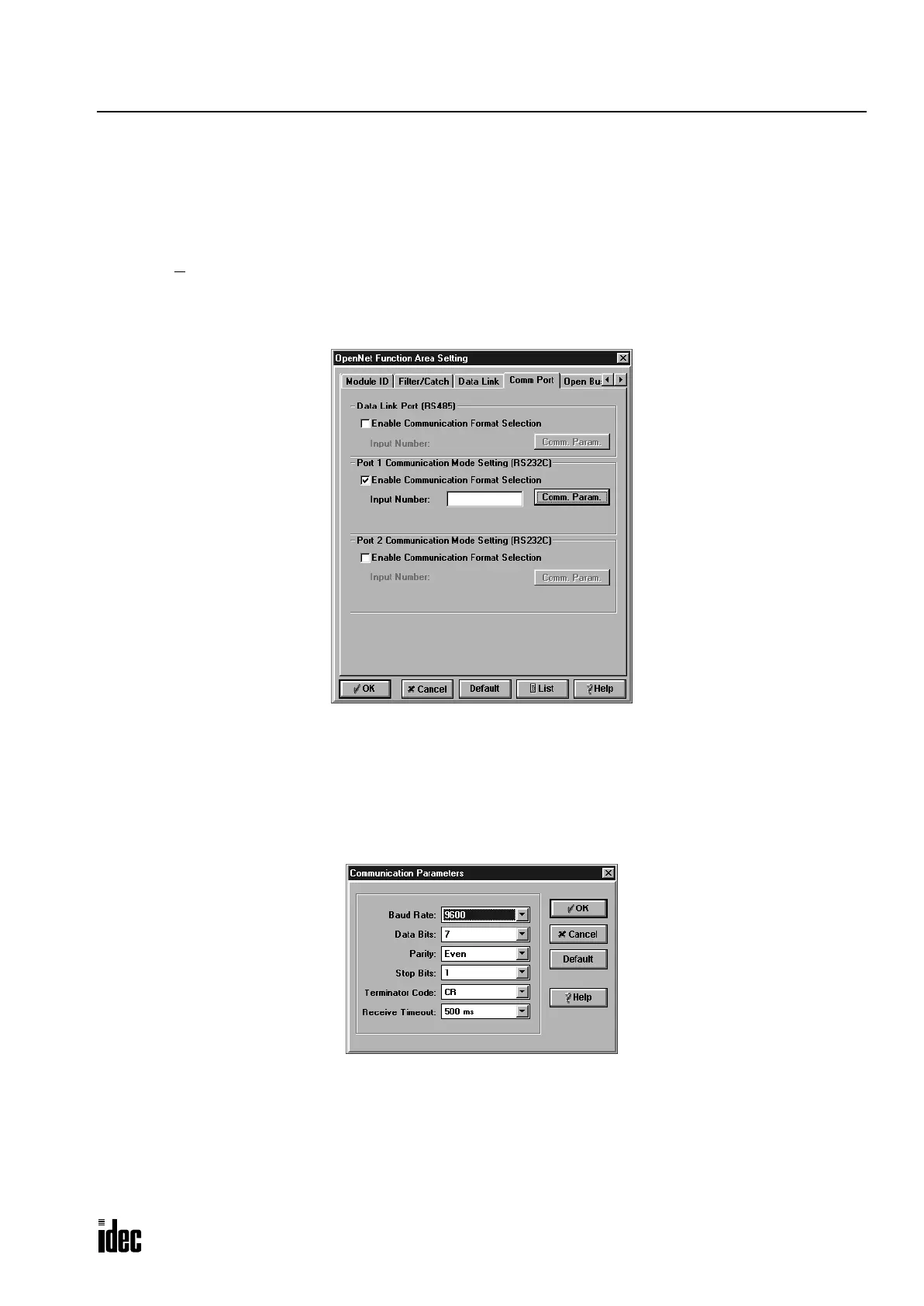

1. Select Configure from the WindLDR menu bar, then select Function Area Settings.
The Function Area Setting dialog box appears.
2. Click the Comm Port tab.
Click the check box to the left of Enable Communication Format Selection for the Port 1 or Port 2 Communication
Mode Setting (RS232C).
Leave the Input Number box blank.
3. Click the Comm. Param. button.
The Communication Parameter dialog box appears.
When 2550 ms is selected in the Receive Timeout box, the receive timeout function is disabled.
4. Select communication parameters to the same values for the device to communicate with.
The terminator code selected in this dialog box has no effect in the user communication mode. Instead, end delimiter codes
are used for the user communication. The terminator code is used for the maintenance communication.
