IEMCA Smart 320 Tp - 10.3 Revolving Tips øGR 7.5÷8.5 - Table

EN
10 - GUIDE CHANNELS-BAR PUSHER-REVOLVING TIPS SMART320
10 - Pag. 6 / 8

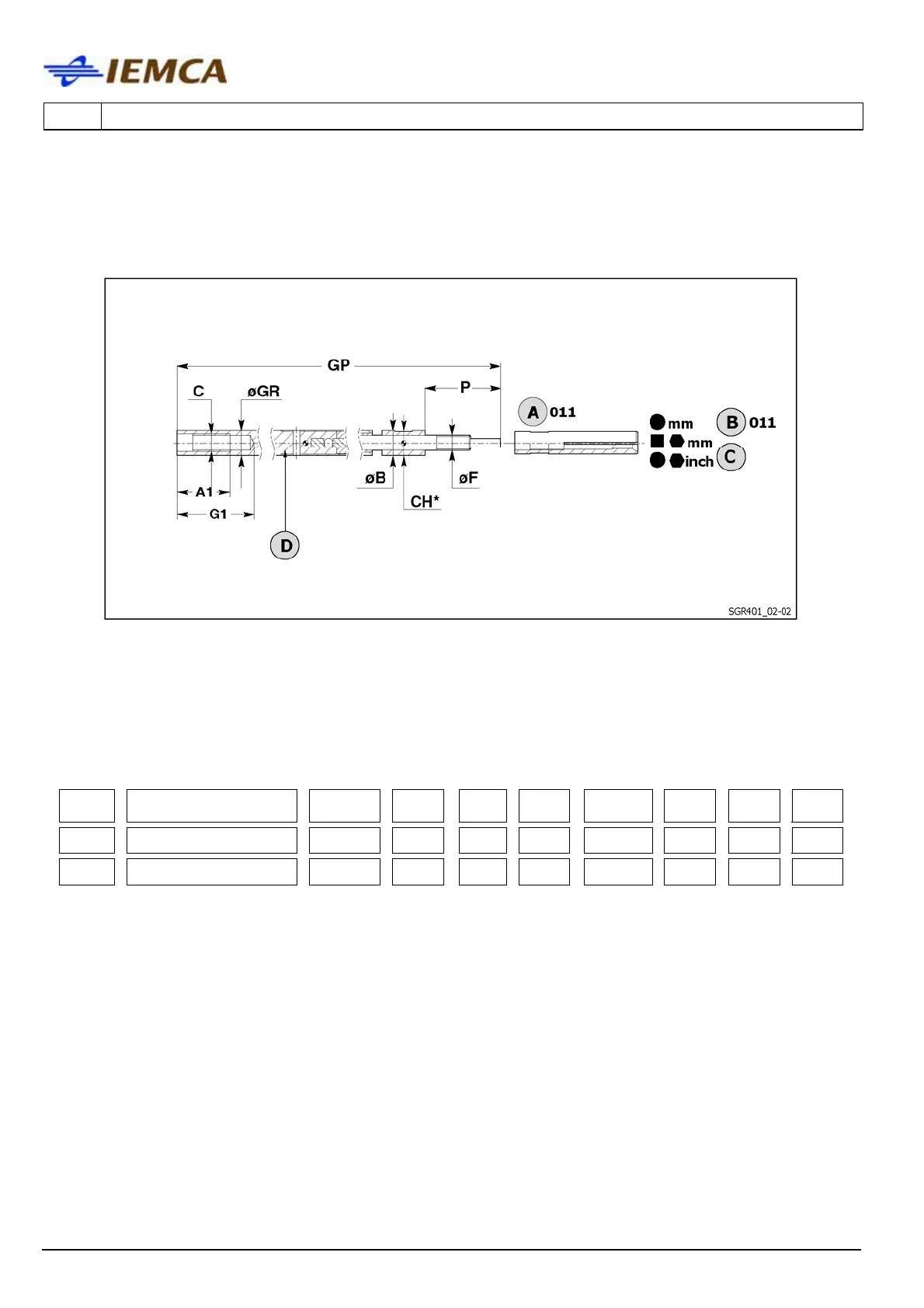

10.3 Revolving Tips øGR 7.5÷8.5 - Table
• For collets with threaded coupling (IEMCA)
A Collet
B See file
C See file 001
than 011
D Revolving tip
CH*: double-ended fork wrench DIN3110
øGR
(mm)
Revolving tip code
øF
(mm)
øB
(mm)
GP
(mm)
G1
(mm)
C
(mm)
A1
(mm)
P
(mm)
CH
(mm)
7.5 D73150705 M5x0.5 7.5 151 25 M6x0.75 17 24.5 7
8.5 D73150805 M5x0.5 8.5 151 25 M6x0.75 17 24.5 7
