4.6.2 Camshaft release device
INFORMATION:
the figures show a general example of
installation; contact IEMCA service
department for more information.

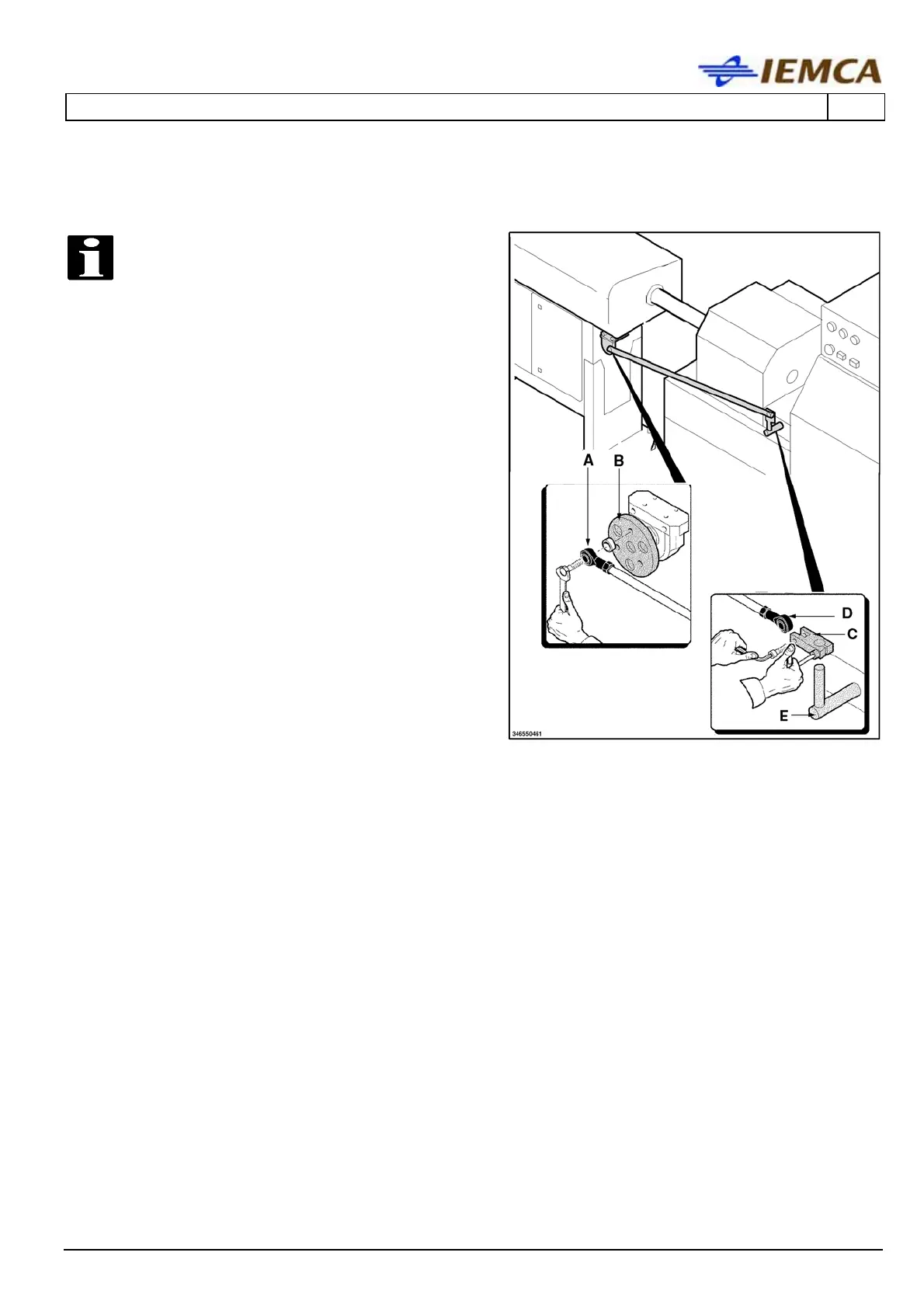

Radial version
• Mount the articulation (A) in the flange (B).
• Mount the joint (C) in the articulation (D) and
in the lathe control (E).
