10.2 REVOLVING TIP - TABLE
The choice of the revolving tip depends on the diameter of the guide channel, and bar pusher
and on the version of the collet coupling.

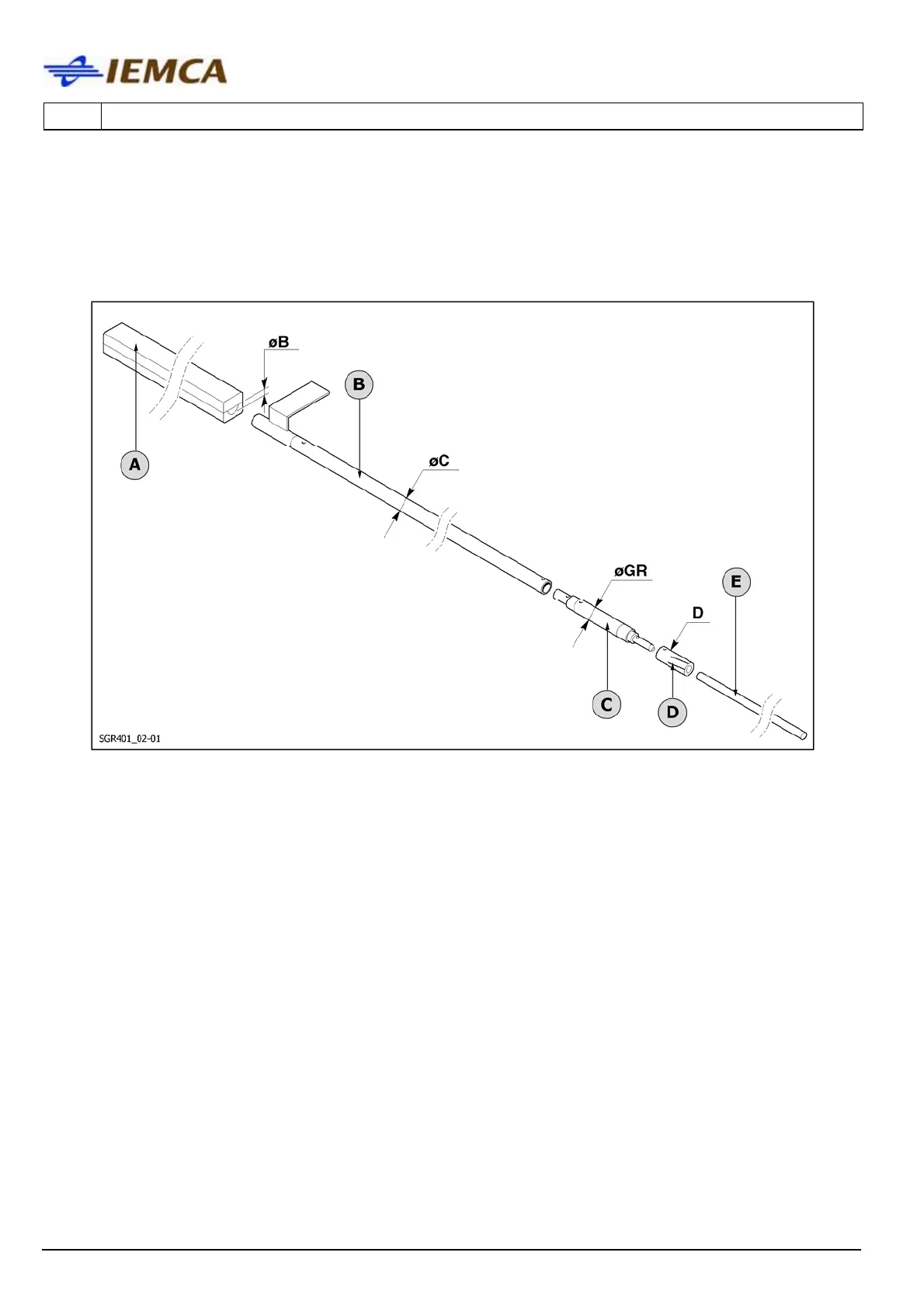

A Guide channels
B Bar pusher
C Revolving tip
D Collet
E Bar
