6.4.1 BARS TO BE MACHINED – LOADED BARS
Make sure that there is no rag on the fore end,
which might hinder the lathe collet entering.

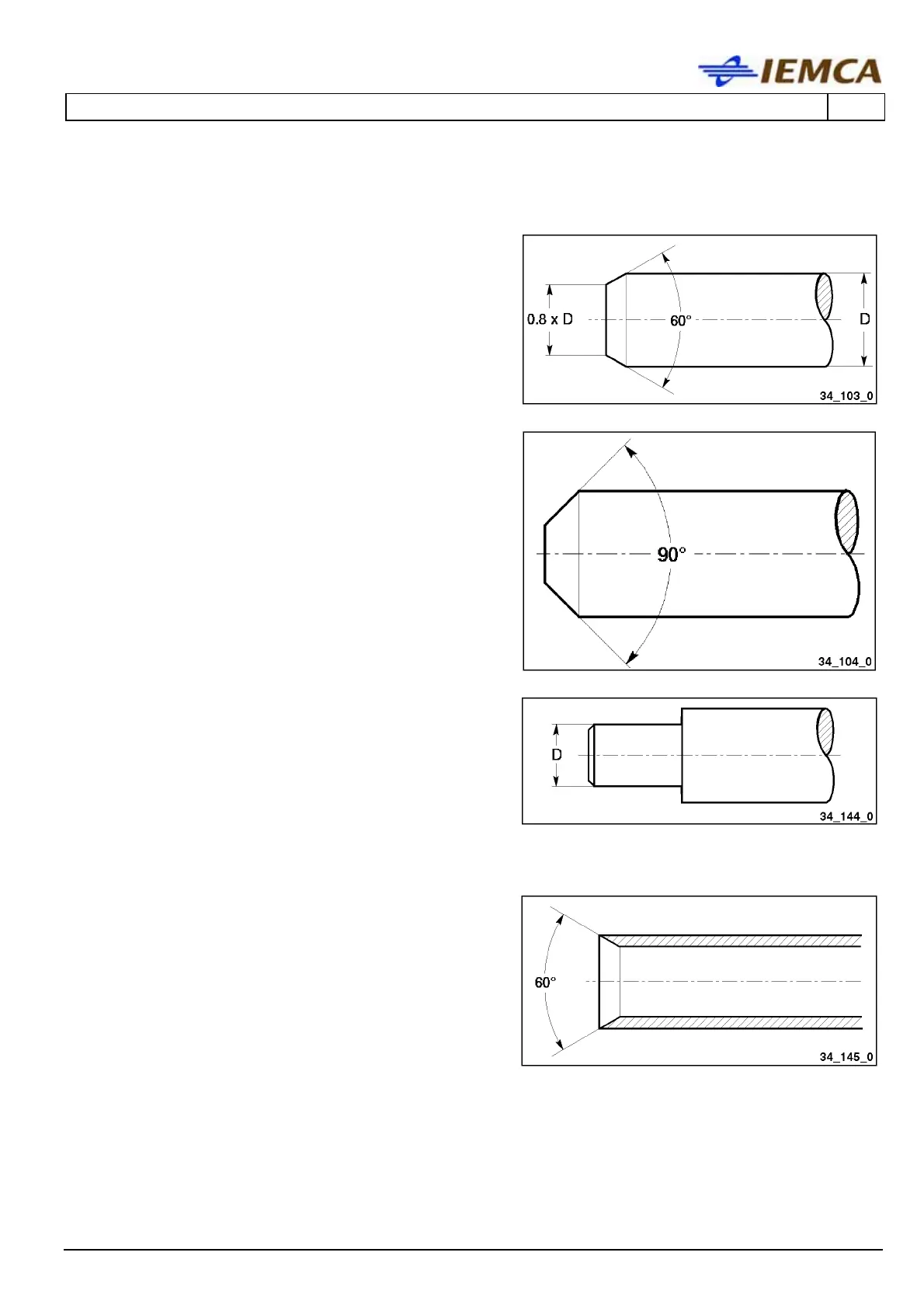

The bar rear end must be chamfered as indicated in
the figure.
If bars with front remnant ejection have to be
machined, we advise to chamfer the bar rear end as
shown in the figure.
When machining bars having a diameter equal to or
only slightly smaller than the bar pusher diameter,
it is necessary to turn the bar rear ends; diameter
(D) should be suitable for the collet installed in the
bar pusher.
6.4.2 BARS TO BE MACHINED - PIPES
If pipes are to be machined, the rear end of the
pipe must be chamfered as shown in the figure.
