IEMCA Smart 320 Tp - 10.4 Revolving tips øGR 12÷27 - Table

10 - GUIDE CHANNELS-BAR PUSHER-REVOLVING TIPS SMART320
EN
10 - Pag. 7 / 8

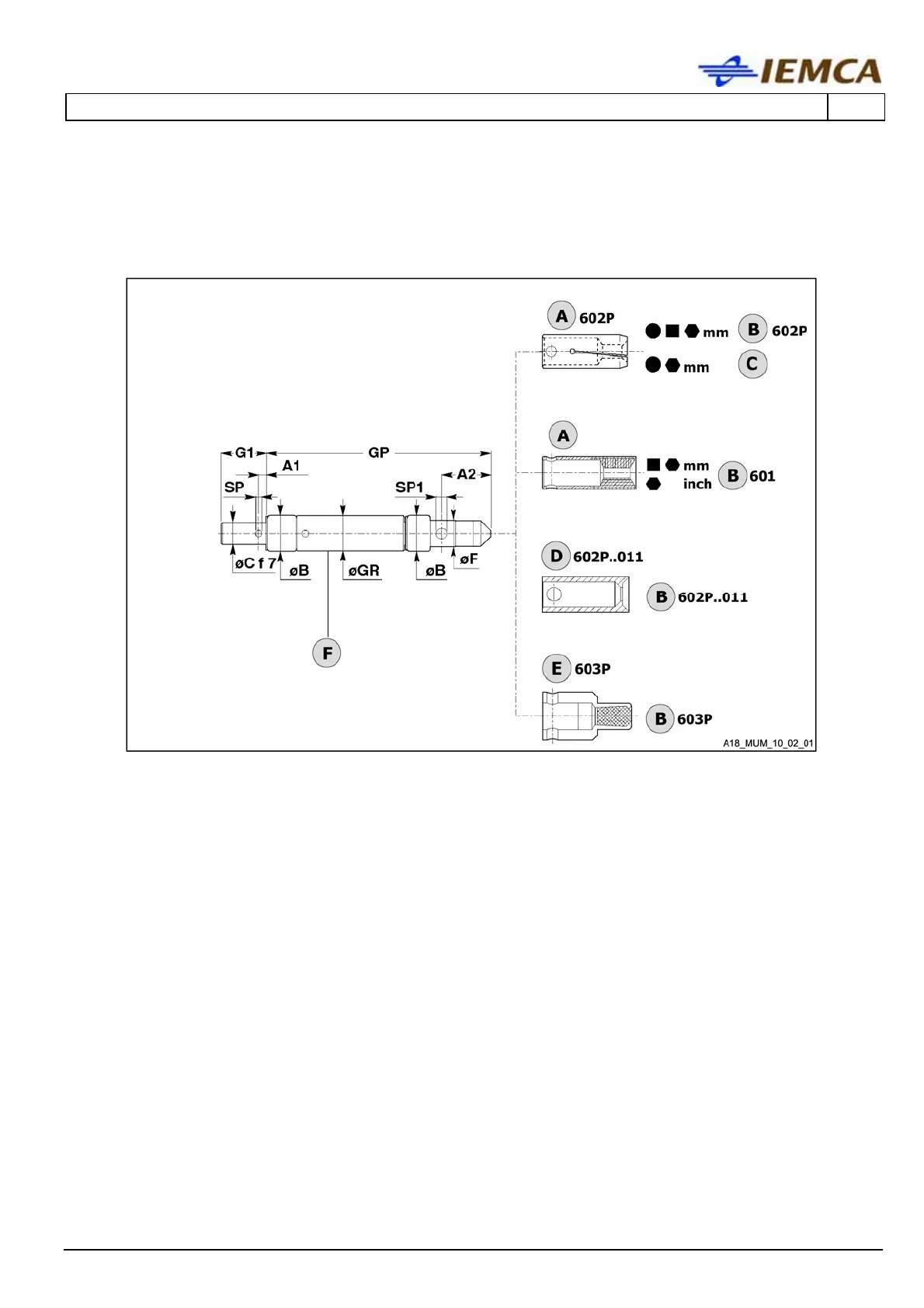

10.4 Revolving tips øGR 12÷27 - Table
• For collets with quick coupling pin
A Collet
B See the paragraph "Collets for 011 bars" Chap.11
C See the paragraph "Conversion tables 001" and then "Collets for 602P bars" Chap.11
D Ejector
E Pipe collet
F Revolving tip
