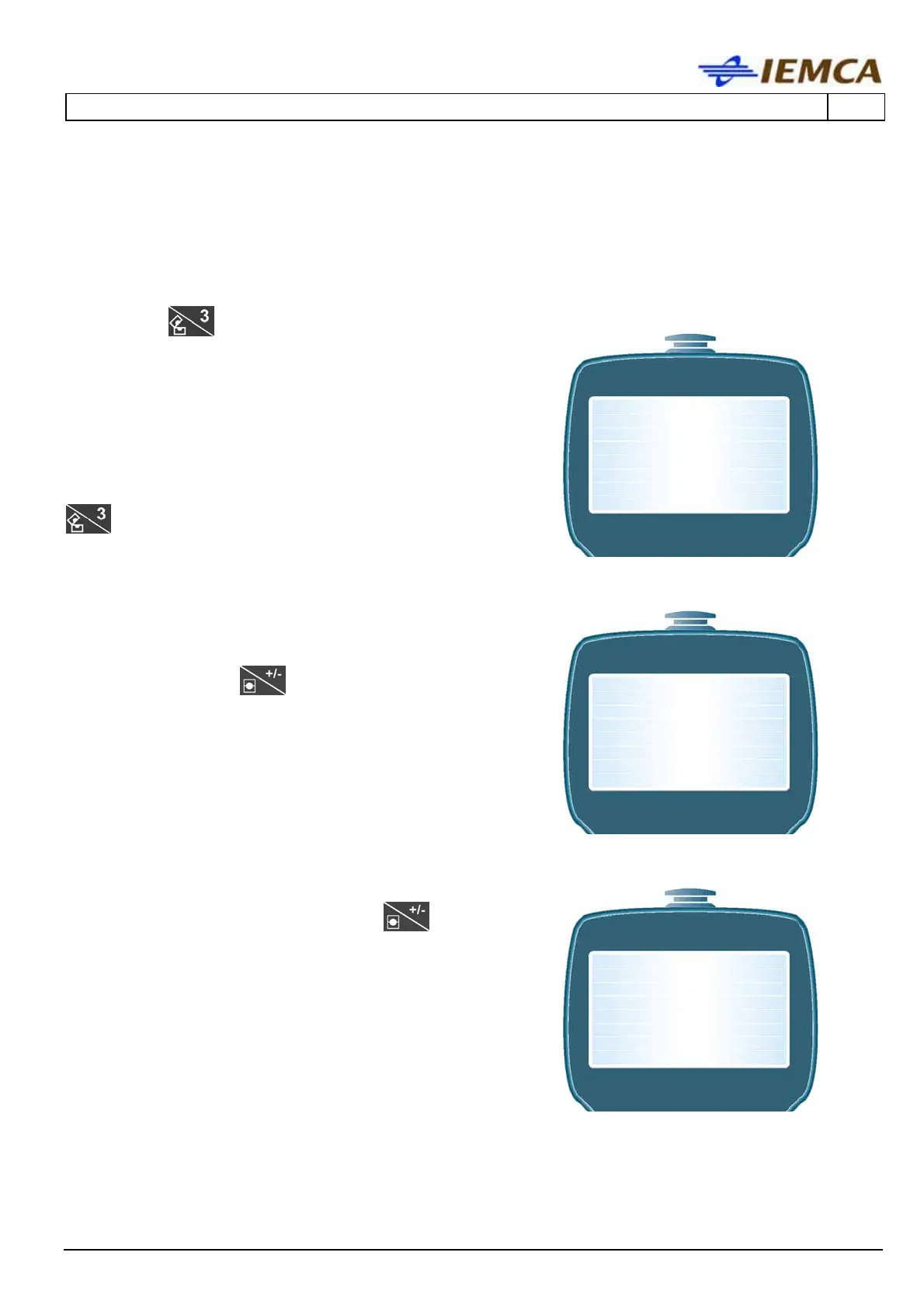

6.5.4 Guide channel opening/closing procedure
The following instructions concern guide channel opening and closing in the manual function.
OPENING PROCEDURE
By pressing with upper guide channels closed,
the display will show:
To open the guide channels follow the instructions at
paragraph 6.4.5: step by step cycle performing
operations.
If the guide channels are in an intermediate position
(upper guide channels not close nor open), press
to open them completely.
CLOSING PROCEDURE
If the upper guide channels are open and the first
feeding carriage is shifted from its “ZERO AXIS”
position by pressing
, the display will show:
move the carriage to “ZERO AXIS” position, by
pressing the manual return key.
As soon as the carriage reaches this position, the
following message will be displayed:
Close the guide channels by pressing
.
4 Use the
STEP by STEP mode
42 Move carriage
completely backwards!!!
43 Carriage
completely backwards!
