4 - HANDLING AND INSTALLATION SMART320
EN
4 - Pag. 13 / 26

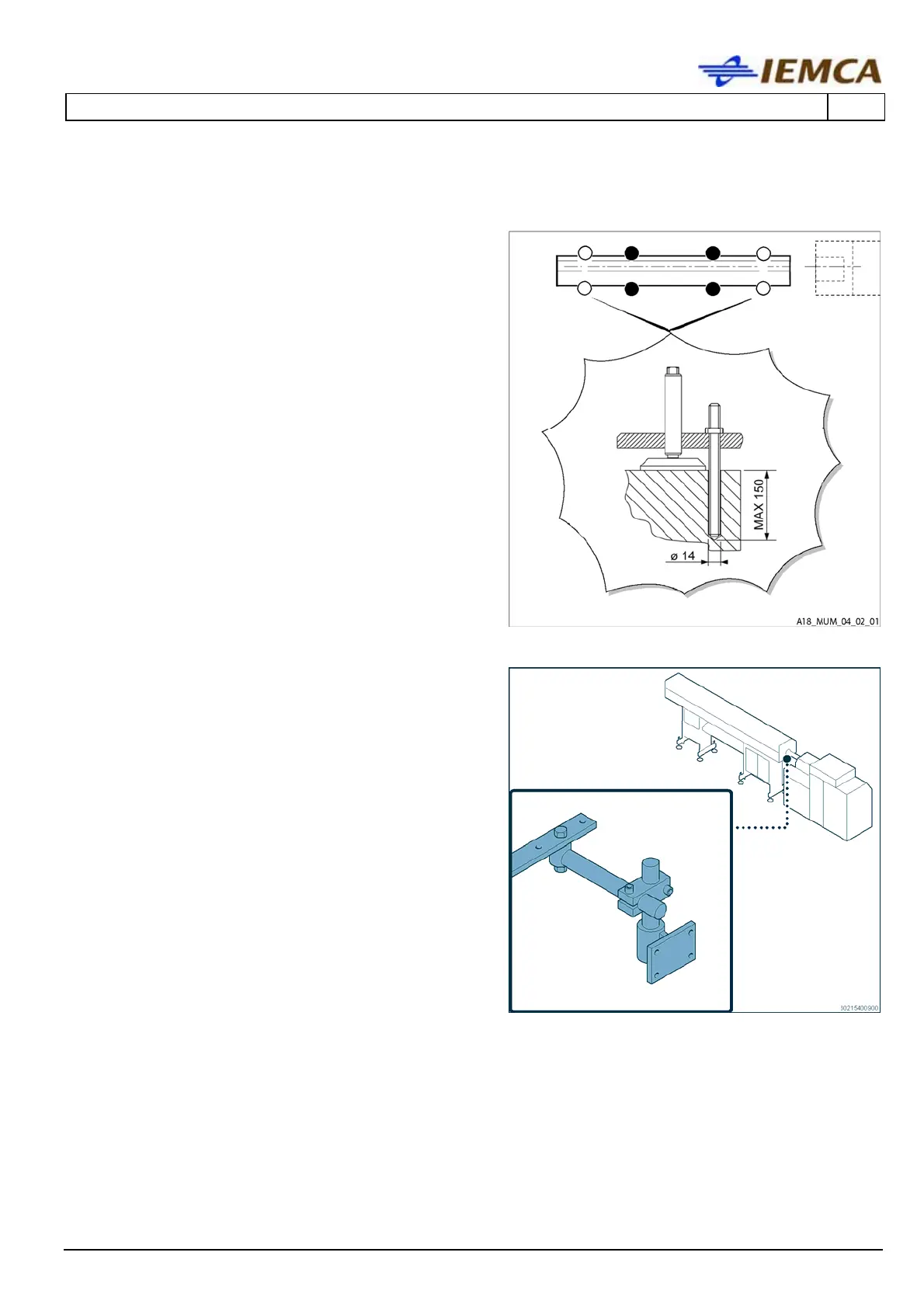

4.4.6 Bar feeder fastening
GROUND FASTENING
• Drill the floor and fix the lifting foot with
expansion plugs.
• Check the levelling and alignment once more.
• Remove all the equipment used for the levelling
and alignment phases and restore the initial bar
feeder conditions.
FASTENING TO THE LATHE
Wherever possible, the feeder should be fastened
to the lathe through the suitable coupling unit
according to lathe make and type. The figure
shows a general example of fastening; contact
IEMCA service department for more information.
