4 - HANDLING AND INSTALLATION SMART320
EN
4 - Pag. 23 / 26

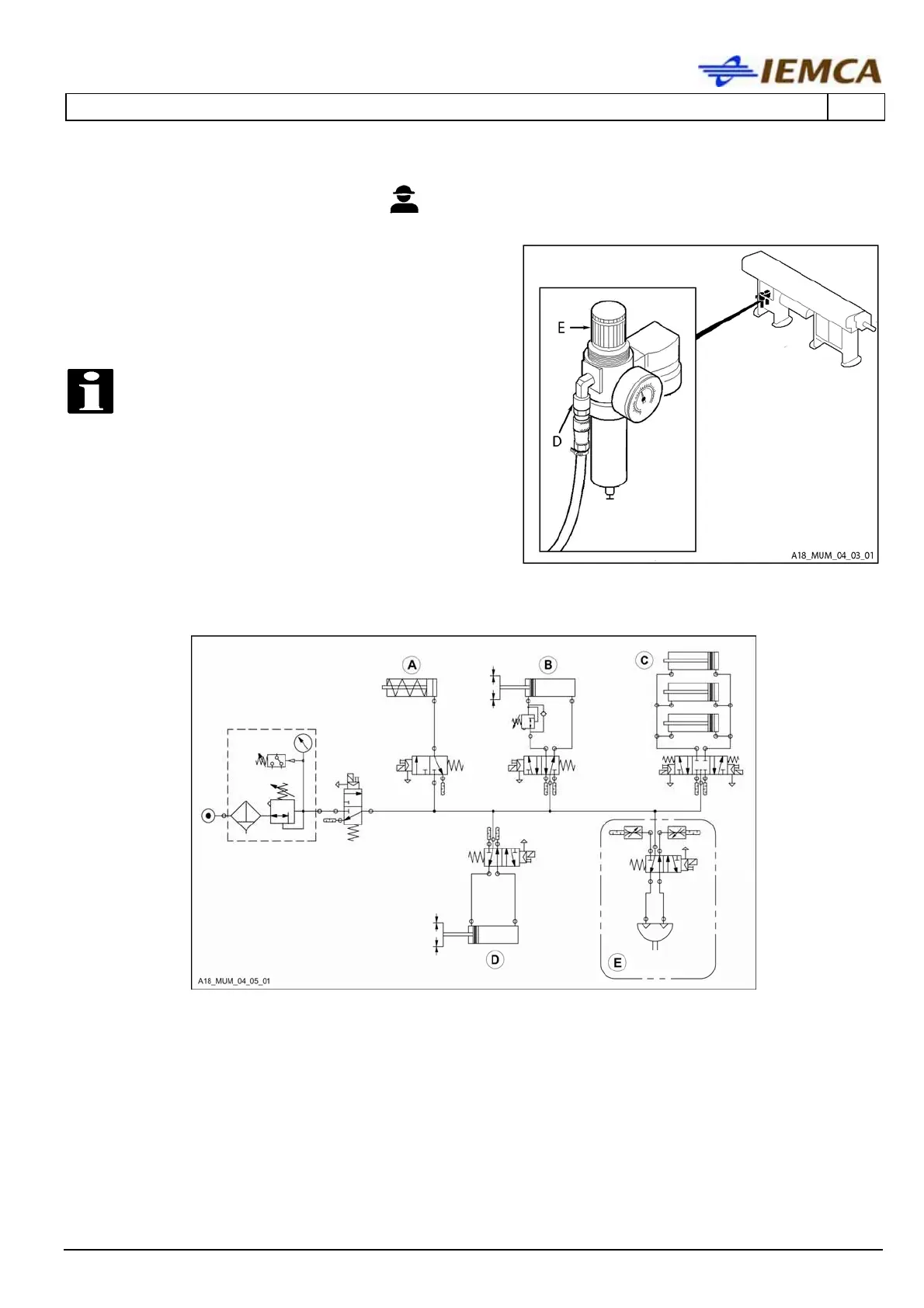

4.9 PNEUMATIC CONNECTION
• Connect the pipe of the pneumatic system to the
coupling (D) 1/4"Gas. Install an upstream 3-way
cock to perform the sectioning and the pressure
release. With knob (E), adjust the pressure at 6
bar.
IMPORTANT:
the supply air must be filtered.
4.9.1 Pneumatic system - Main components
A FACING CYLINDER
B PNEUMATIC CLAMP CYLINDER
C GUIDE CHANNEL OPENING/CLOSING CYLINDERS
D BUSH HOLDER OPENING/CLOSING CYLINDERS
E CAMSHAFT ENGAGEMENT/DISENGAGEMENT ACTUATOR
