4 - HANDLING AND INSTALLATION SMART320
4 - Pag. 24 / 26
4.9.2 BAR FEEDER HANDLING WITHOUT POWER SUPPLY

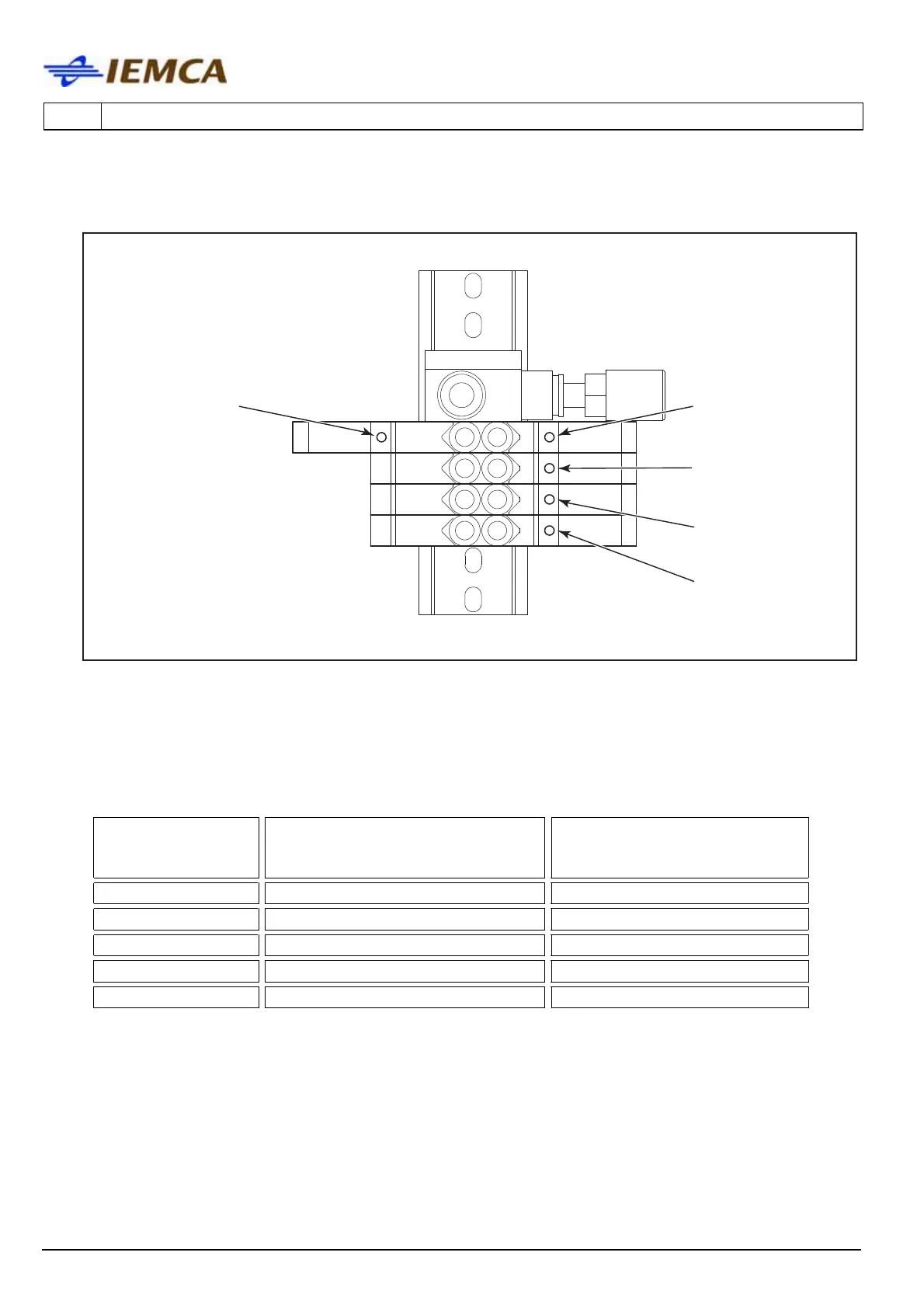

Without power supply or in case of an emergency it is possible to move the pneumatic units
using the solenoid valves manually:
- By means of a small screwdriver press button (A) to position 1.
- With the same tool press button B, located on each solenoid valve, to move the unit.
FUNCTION DESCRIPTION ABBREVIATION
A Guide control solenoid valve Guide channel closing
A1 Guide control solenoid valve Guide channel opening
B Clamp control solenoid valve Clamp opening/closing
C Bush control solenoid valve Bush opening/closing
D Flag control solenoid valve Facing flag resetting
A18_MUM_04_03_01
A
B
C
A1
D
