4 - HANDLING AND INSTALLATION SMART320
EN
4 - Pag. 5 / 26

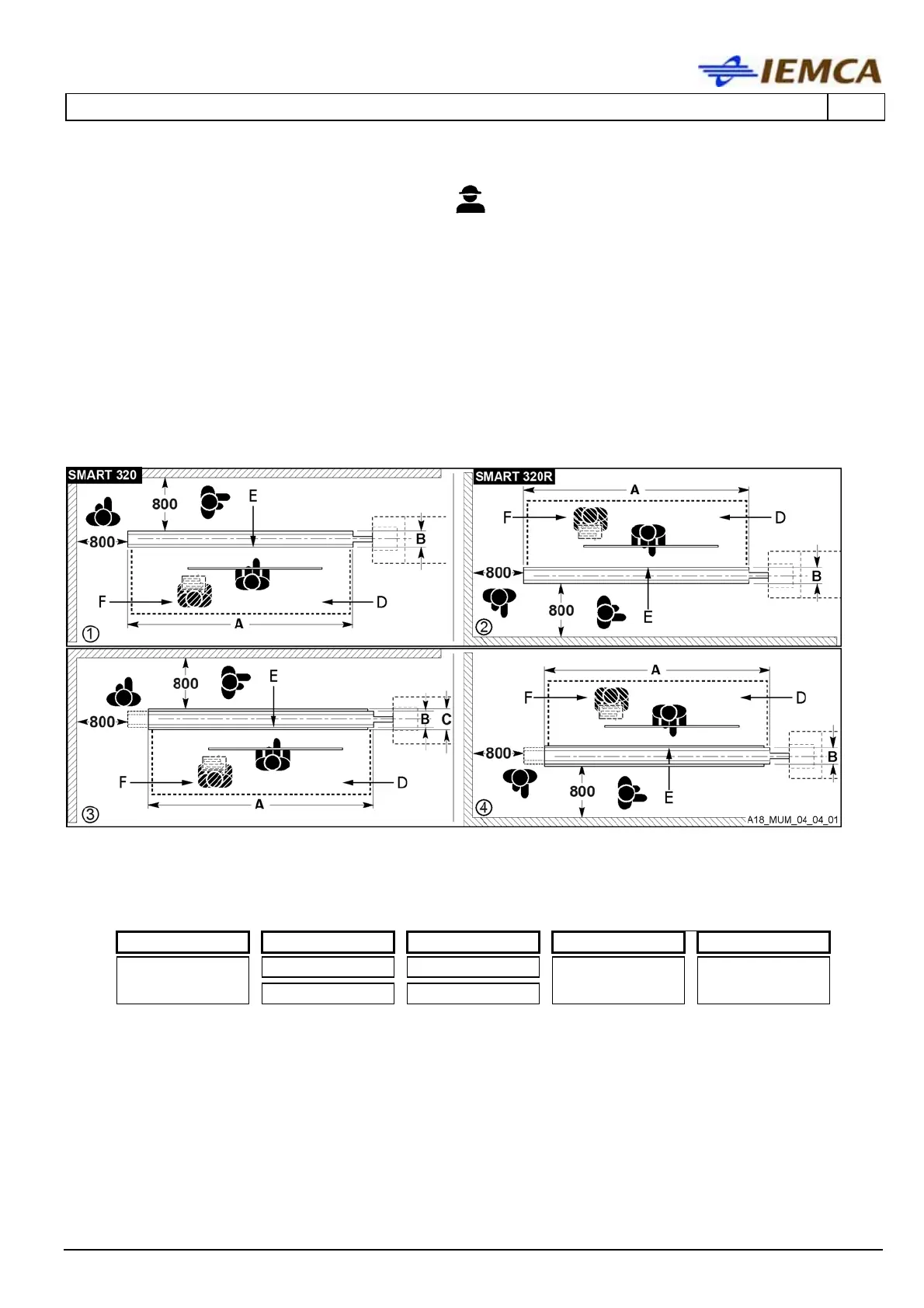

4.3 INSTALLATION AREA - FEATURES
The floor should be stable and levelled to guarantee good fastening to the ground.
Provide an area of suitable dimensions according to the type of bar feeder used.
The areas (D) (work area), (E) (bar feeding area) and (F) (remnant discharge area) should be
properly delimited to prevent collisions between the operator and any handling equipment or
transport vehicles travelling near the bar feeder.
The selected area should be illuminated and provided with an electric and pneumatic power
supply socket.
During operation, the bar feeder will release small amounts of oil mist. Install the bar feeder in
a suitably ventilated area.
The bar feeder has not been designed for use in an explosive atmosphere.
1-2 Without axial displacement
3-4 With axial displacement
Overall dimensions
MODEL VERSION A (mm) B (mm) C (mm)
32 4000
SMART 320
40 4800
425
425
