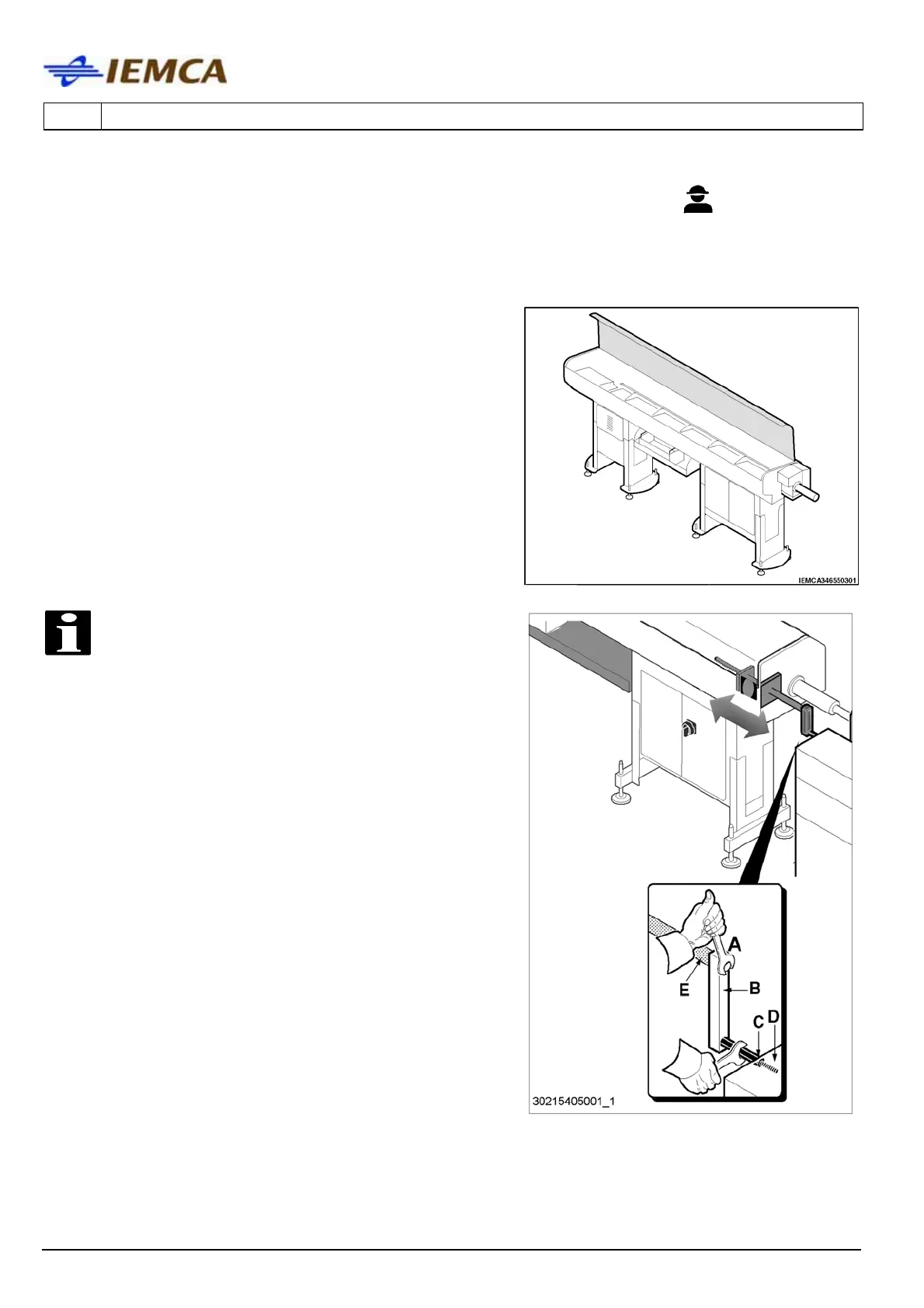

4.5 DEVICE FOR SLIDING HEADSTOCK LATHES - INSTALLATION
4.5.1 Bar/headstock synchronizing device
• Remove the upper guard.
INFORMATION:
the figure shows a general example of
installation; contact IEMCA service
department for more information.
• Loosen screw (A).
• Install the bar (B) and tie-rod (C) and make sure
that the headstock (D) can run freely throughout its
stroke together with shaft (E).
• Position the support "F" so that it does not hinder
the headstock stroke and tighten the screw (A).
