4 - HANDLING AND INSTALLATION SMART320
4 - Pag. 16 / 26
4.6 DEVICES FOR CAM LATHES - INSTALLATION
4.6.1 Cam box
INFORMATION:
the figure shows a general example of
installation; contact IEMCA service
department for more information.

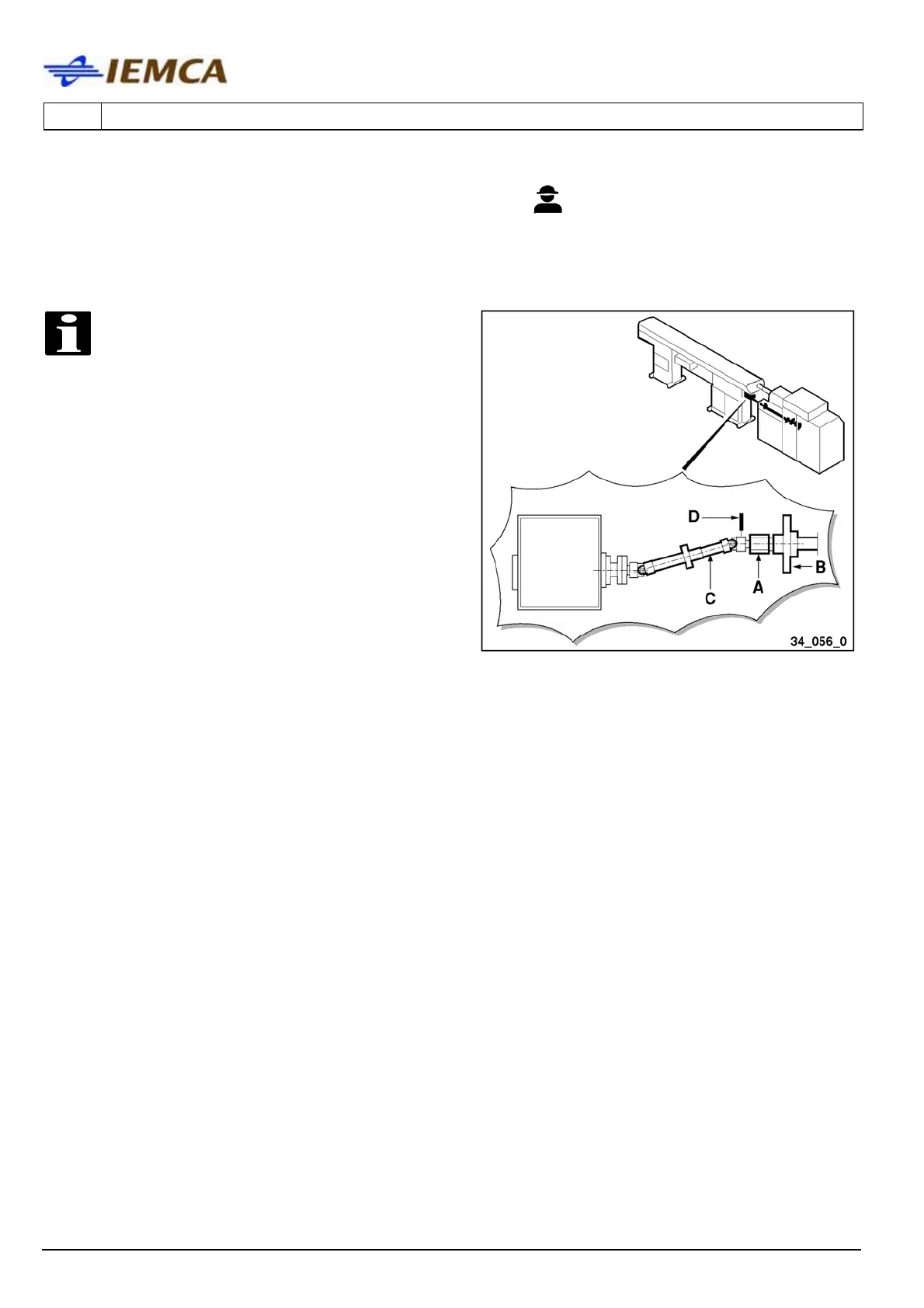

• Install the sleeve (A) on the lathe camshaft
(B).
• Connect the shaft (C) to the sleeve through
the pin (D).
