EN
4 - HANDLING AND INSTALLATION SMART320
4 - Pag. 18 / 26

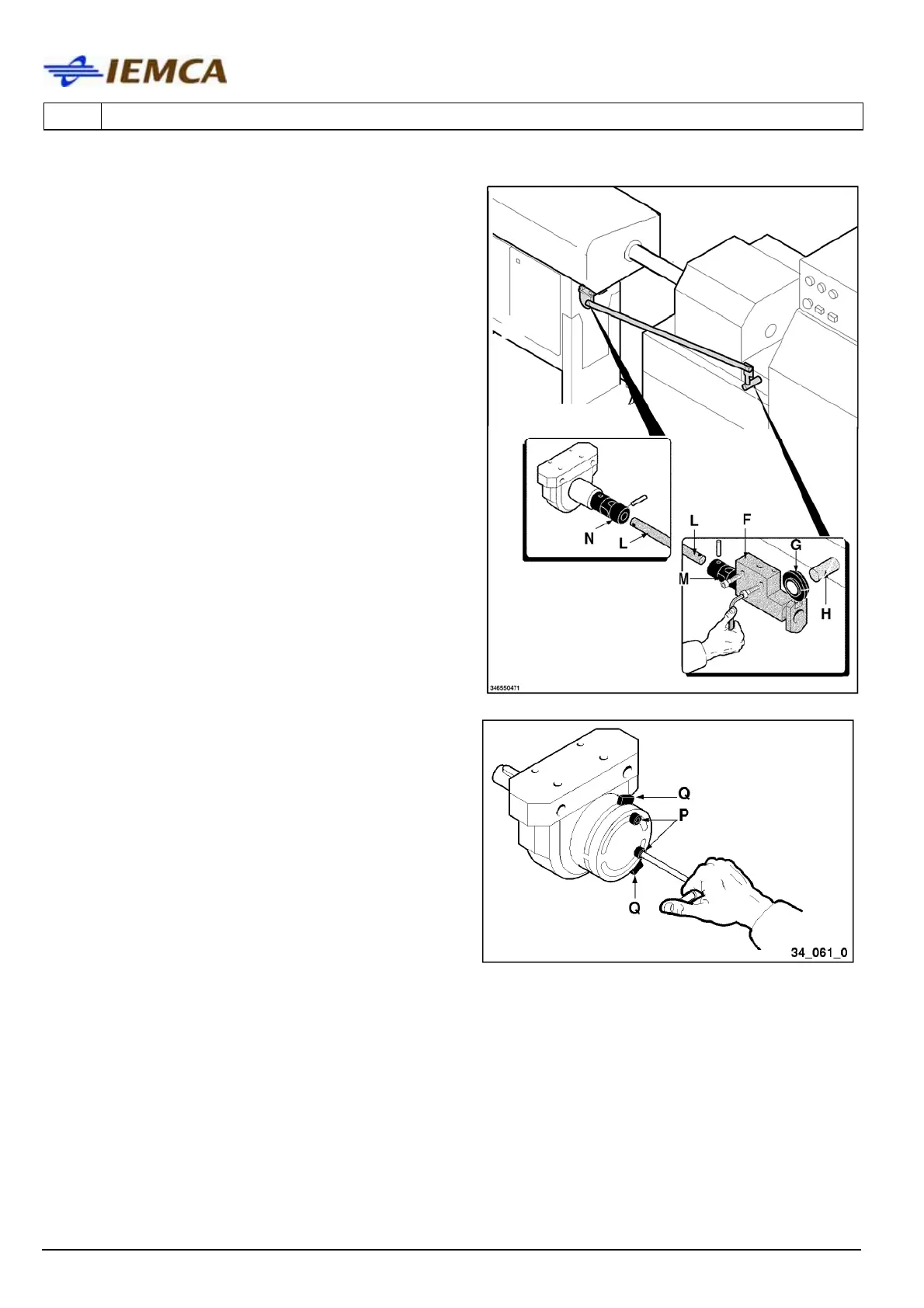

Axial version
• Drill and thread the lathe housing to fix the
transmission unit (F) and assemble the disk
(G) in the control (H).
• Insert the shaft (L) in the joint (M) and lock it
with a pin; insert the other end of shaft (L) in
joint (N) and lock it with a pin.
After completing the above-described operations,
the actuator rotation stroke should be adjusted
(this operation is necessary for both the radial
version and the axial version).
• Loosen the screws, move slides (Q) and
tighten screws (P).
