2 - TECHNICAL INFORMATION SMART320
EN
2 - Pag. 13 / 20

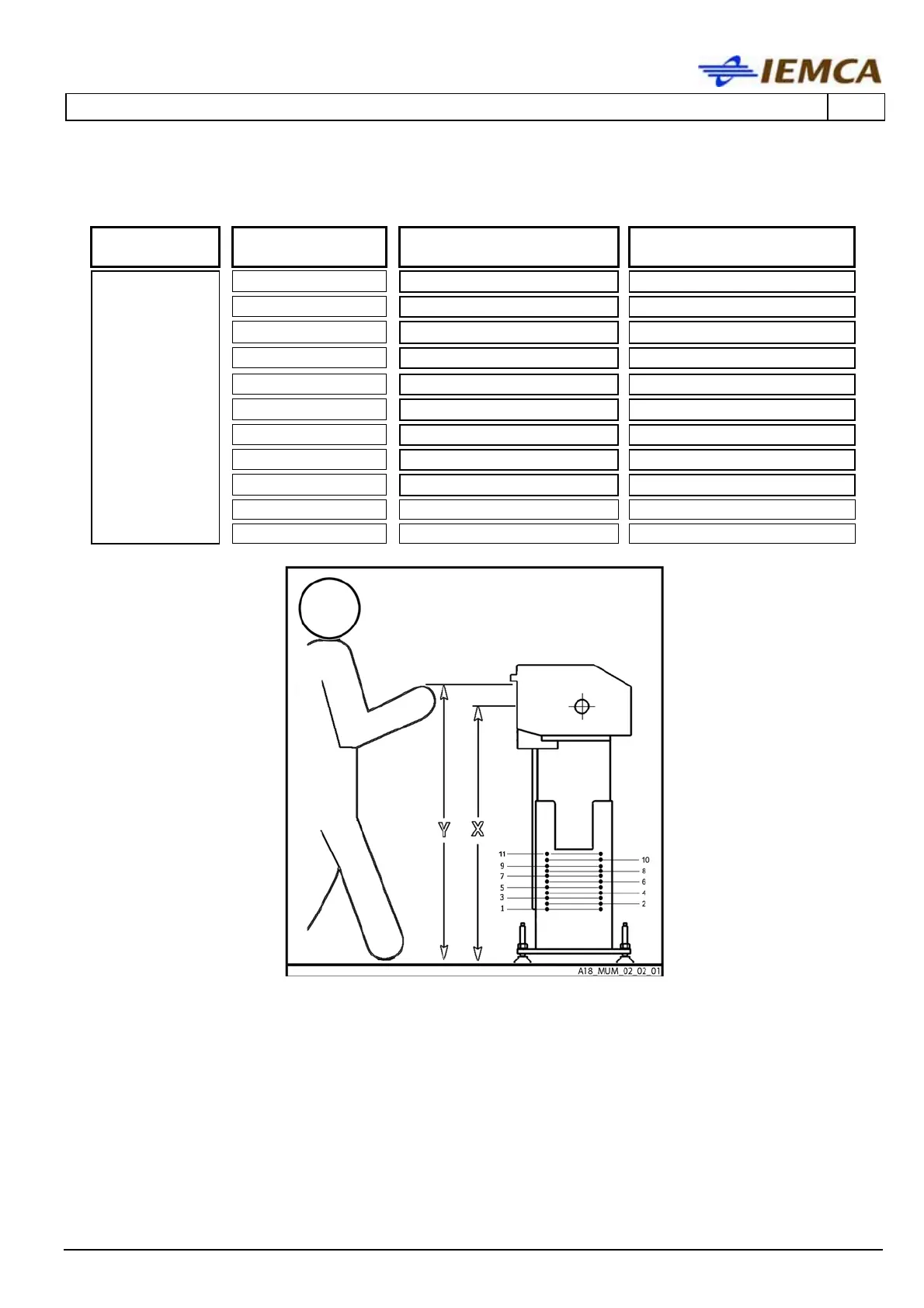

Working axis height
Model
Upper screws
position
X (mm)
Working axis height
Y (mm)
Max loading height
1 835÷875 980
2 870÷910 1020
3 905÷945 1060
4 940÷980 1100
5 975÷1015 1140
6 1010÷1050 1180
7 1045÷1085 1220
8 1080÷1120 1260
9 1115÷1155 1300
10 1150÷1190 1340
SMART 320
11 1185÷1235 1380
