Microswitch “S92”
• Rotate manually shaft (A) until the headstock
starts its return stroke with closed collet.
• Release the "S92" microswitch wheel.
• Continue rotation until the headstock has
completed its return stroke.
• Lift wheel "S92".
Microswitch “S99”
When the threading tool starts its return stroke,
lower "S99" microswitch wheel and lift it before the
stroke is over.
Should microswitch "S99" be fitted on lathe, timing
is to be performed on lathe cam.
GENERAL REMARKS
• Microswitch activation can be either delayed or
advanced through screw (C).

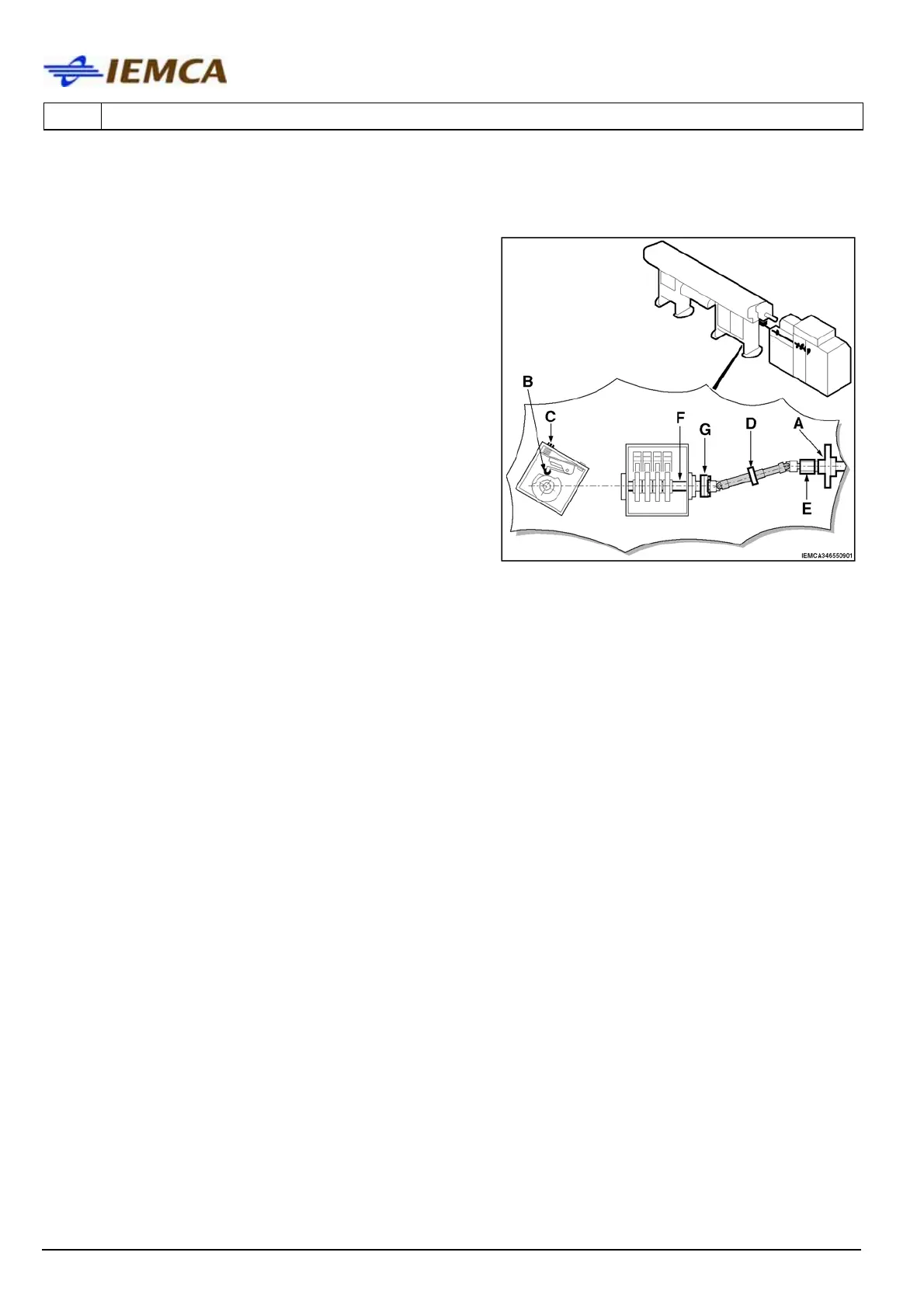

• Whenever servicing the camshaft, disconnect the cam box, according to the following
procedure:
- loosen clamp (D) and unscrew sleeve (E);
- service the lathe camshaft;
- screw sleeve (E) and tighten clamp (D);
- should shaft (F) be out of phase, loosen sleeve (G) screws, rotate it and tighten the
screws.
