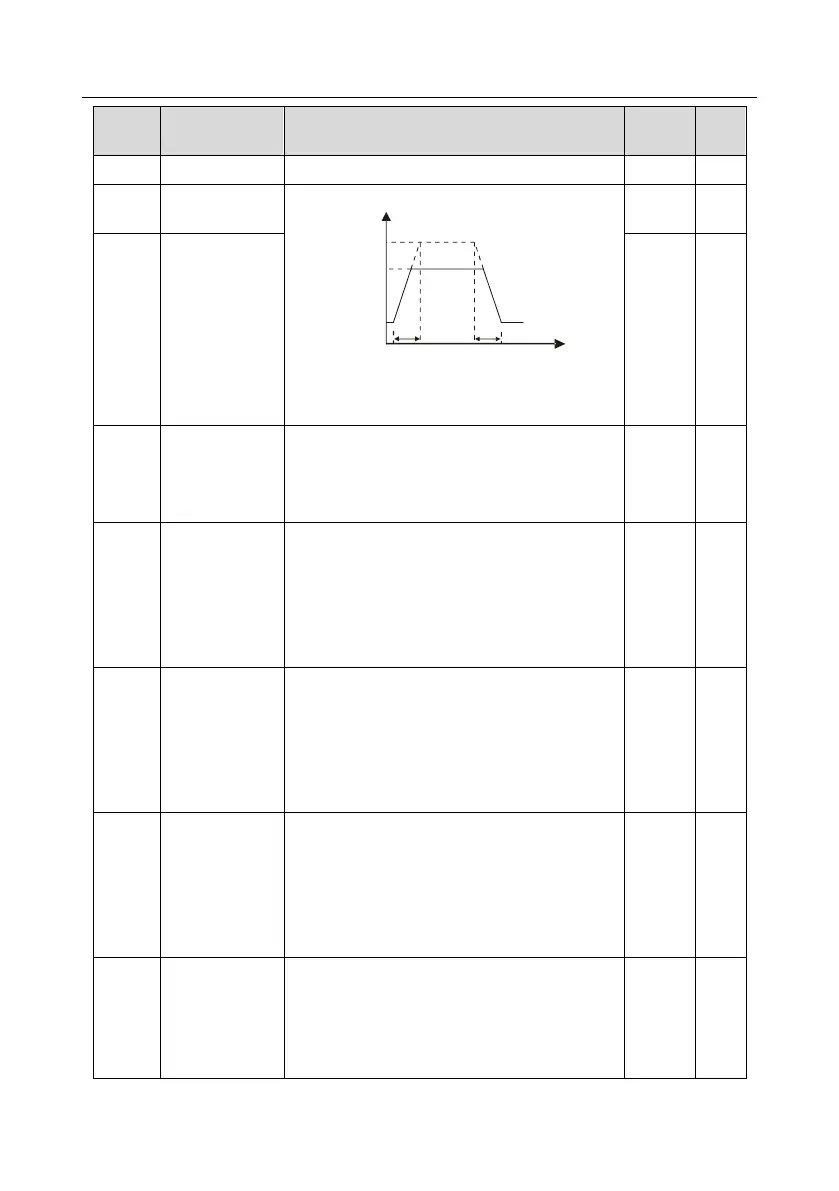

HD2 Series Inverter Function Parameter List
-161-
Function
code
Name
Description
Default
value
Modify
Setting range: 0.0–3600.0s
P04.31
Output max.
voltage
Set the upper/lower limit value of output voltage.
Vmax
Vmin
V set
Time t
t1 t2
t1=P04.29
t2=P04.30
Setting range of P04.31: P04.32–100.0% (rated
motor voltage)
Setting range of P04.32: 0.0%–P04.31
100.0%
◎
P04.32
Output min.
voltage
0.0%
◎
P04.33
Flux-weakening
coefficient in the
constant power
zone
1.00–1.30
1.00
○
P04.34
Injection current
1 in synchronous
motor VF control
When the synchronous motor VF control mode is
enabled, this parameter is used to set the reactive
current of the motor when the output frequency is
lower than the frequency set in P04.36.
Setting range: -100.0%–+100.0% (of the motor
rated current)
20.0%
○
P04.35
Injection current
2 in synchronous
motor VF control
When the synchronous motor VF control mode is
enabled, this parameter is used to set the reactive
current of the motor when the output frequency is
higher than the frequency set in P04.36.
Setting range: -100.0%–+100.0% (of the motor
rated current)
10.0%
○
P04.36
Frequency
threshold for
injection current
switching in
synchronous
motor VF control
When the synchronous motor VF control mode is
enabled, this parameter is used to set the
frequency threshold for the switching between
injection current 1 and injection current 2.
Setting range: 0.0%–200.0% (of the motor rated
frequency)
20.0%
○
P04.37
Reactive current
closed-loop
proportional
coefficient in
synchronous
When the synchronous motor VF control mode is
enabled, this parameter is used to set the
proportional coefficient of the reactive current
closed-loop control.
Setting range: 0–3000
50
○
