HD2 Series Inverter Dimension Drawings
-376-
C.5 Dimensions for parallel inverters
C.5.1 Dimensions with the recommended mounting method
Note: The recommended mounting method for parallel inverters facilitates internal air intake and
better heat dissipation, but the installation size is larger.

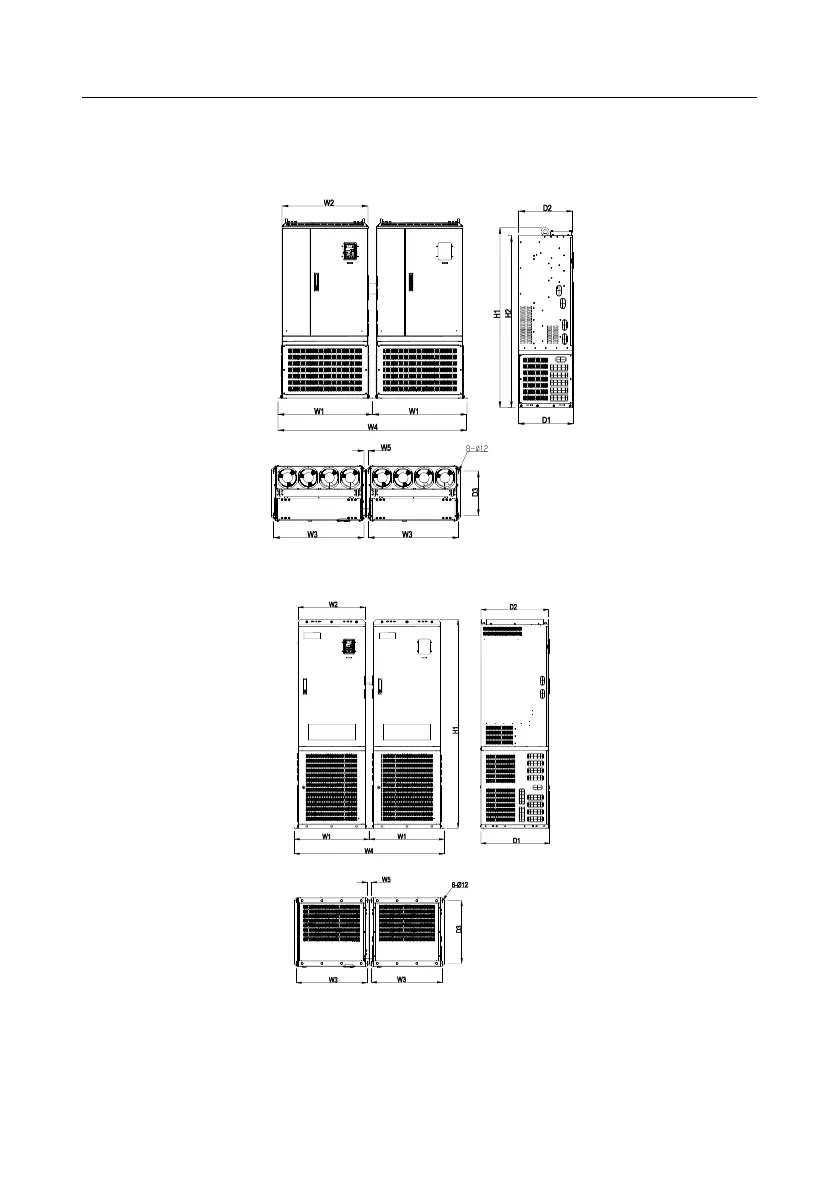

Figure C-14 Parallel mounting diagram for 380V 560–630kW and for 660V 710kW
Figure C-15 Parallel mounting diagram for 380V 710–3000kW and for 660V 800-3000kW
