IMO HD2-3.7A-43 - D.5 Breaker and electromagnetic contactor; D.5.1 For a single inverter

HD2 Series Inverter Dimension Drawings
-377-
Table C–4 Dimensions of mounting parallel 380V inverters with recommended method (Unit: mm)
Inverter
model
W1
W2
W3
W4
W5
H1
H2
D1
D2
D3
Mounting
hole
560–630kW
749
685
719
1503
35
1419.9
1356
442.5
429.5
350
Ø 12
710–
1000kW
690
620
655
1385
40
1900
-
636.3
625.5
570
Ø 12
1200–
1500kW
690
620
655
2080
40
1900
-
636.3
625.5
570
Ø 12
2000kW
690
620
655
2775
40
1900
-
636.3
625.5
570
Ø 12
2500kW
690
620
655
3470
40
1900
-
636.3
625.5
570
Ø 12
3000kW
690
620
655
4165
40
1900
-
636.3
625.5
570
Ø 12
C.5.2 Dimensions with the close mounting method
Note: The close mounting method for parallel inverters has a smaller size, which will affect the
internal air intake of the product but meet the product cooling effect.

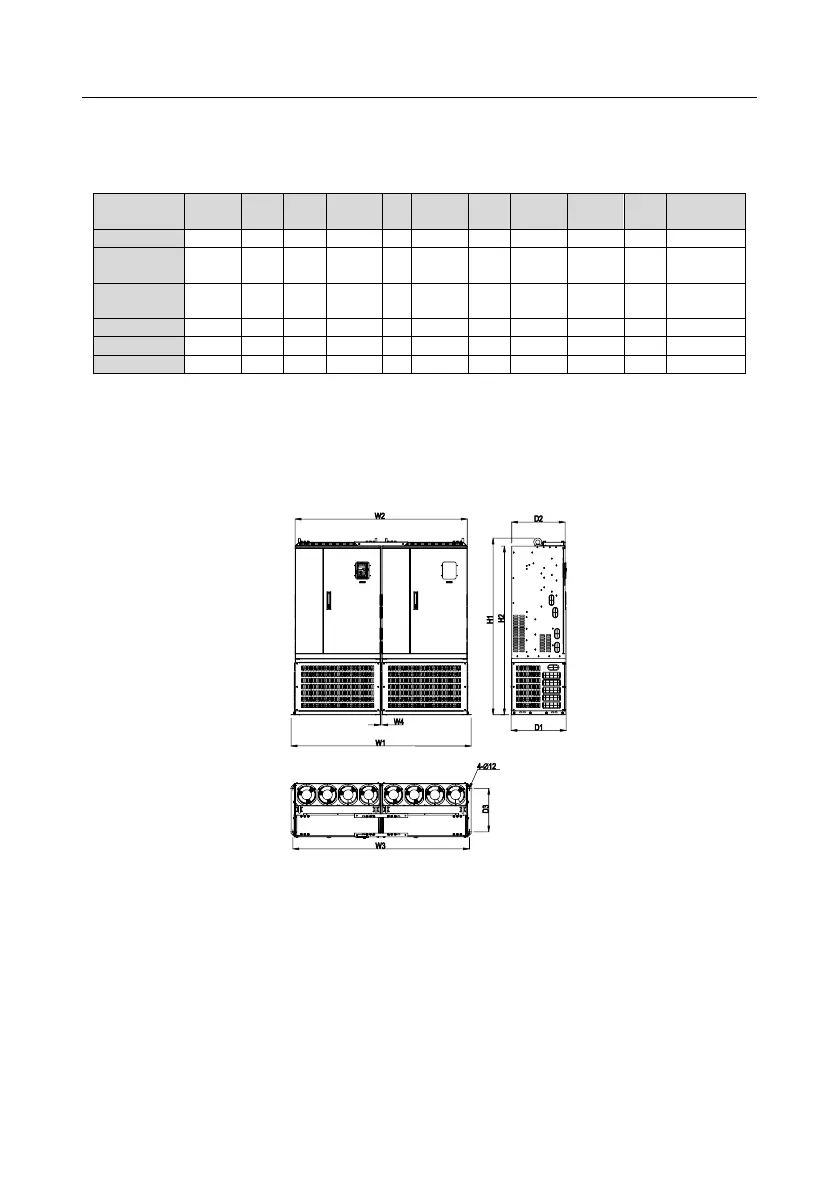

Figure C-16 Parallel mounting diagram for 380V 560–630kW and 660V 710kW
